Buy V-TAC VT-13036 LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

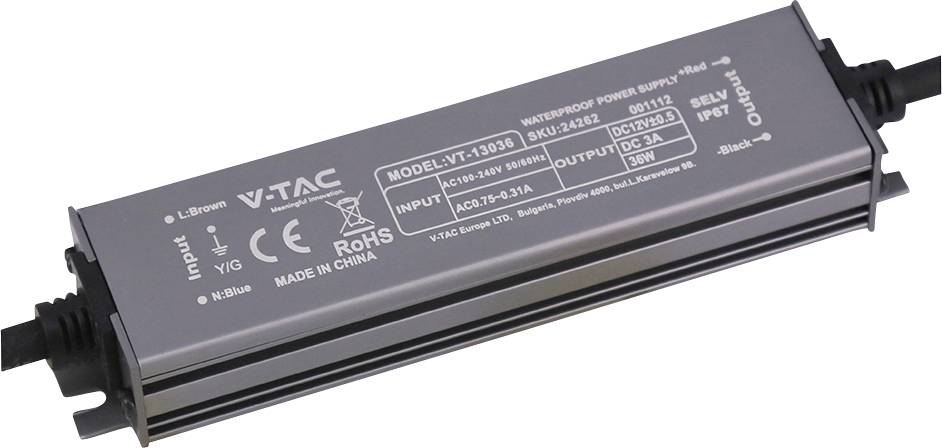

Black V-TAC LED driver power supply module with input/output specs printed on the casing and attached cables at both ends.

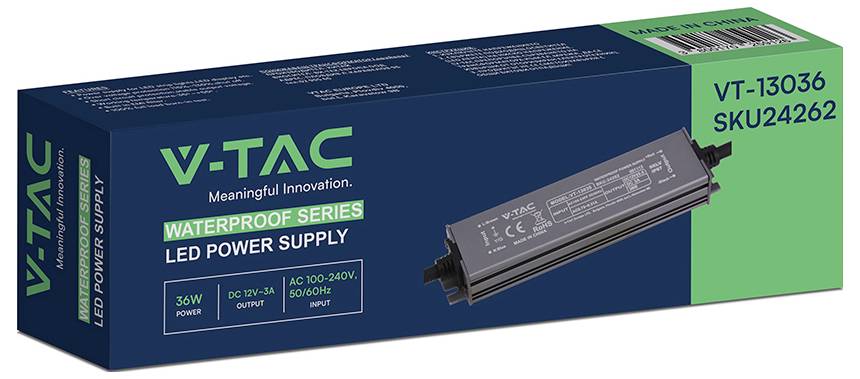

Box packaging for a V-TAC waterproof series LED power supply, labeled VT-13036 and SKU24262, with product image and power specs.

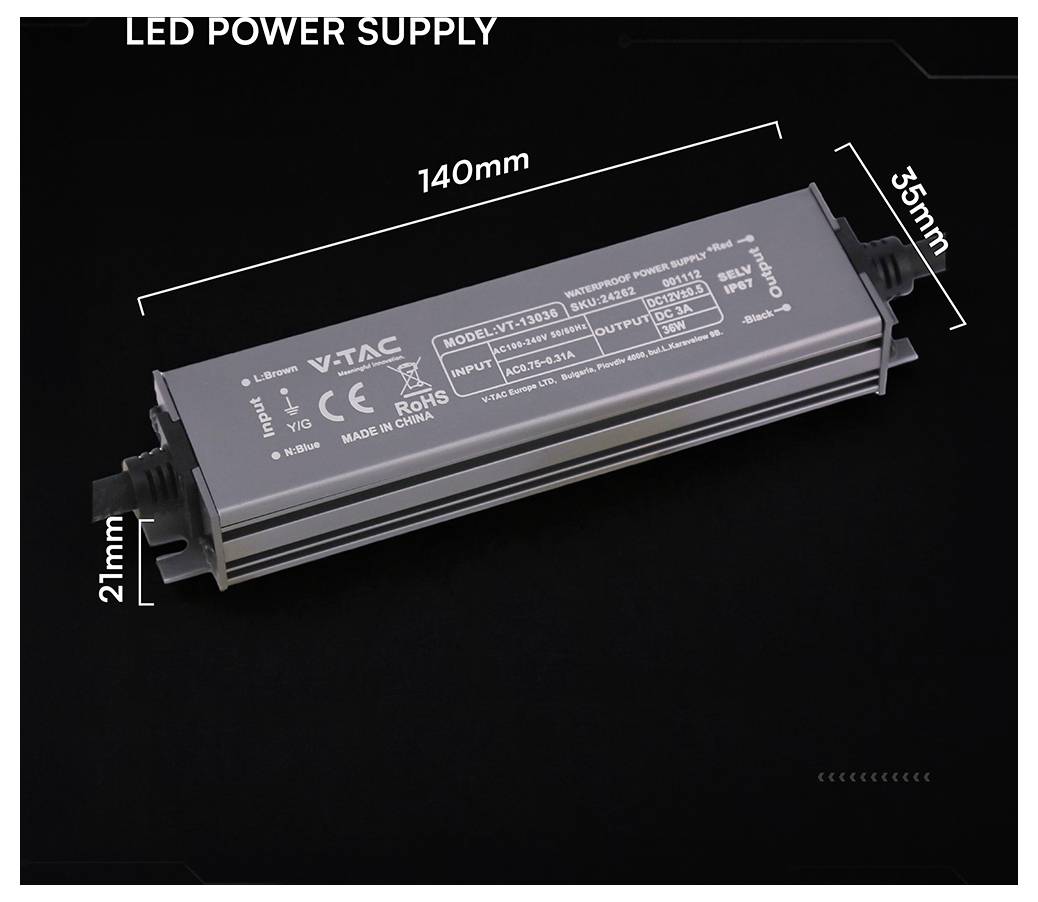

Product image of an LED power supply on a black background, labeled with dimensions 140mm x 35mm x 21mm.<br>

1/3

Fast track dispatch on Thu, 17 Sep

46 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 13.44 / piece)

€ 13.44

plus VAT.

Report legal concerns

Highlights & Details

VT-13036 36W LED Power SUPPLY 12V 3A IP67

Constant voltage
12 V DC
3 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 140 x 35 x 21 mm

Factory colour: Black

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Max. output current: 3 A

Output current (max.) - rounded: 3 A

LED driver features: not dimmable

: IP67

Max. power: 36 W

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

Weight: 0.21 kg

Power range: 36 W (max)

Width: 35 mm

Height: 21 mm

Length: 140 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 12 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781507 V-TAC VT-13036 LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
