Name: V-TAC VT-13250-S LED transformer Constant voltage 250 W 20.83 A 12 V DC not dimmable 1 pc(s)
Brand: V-TAC
SKU: 3781505
Availability: InStock

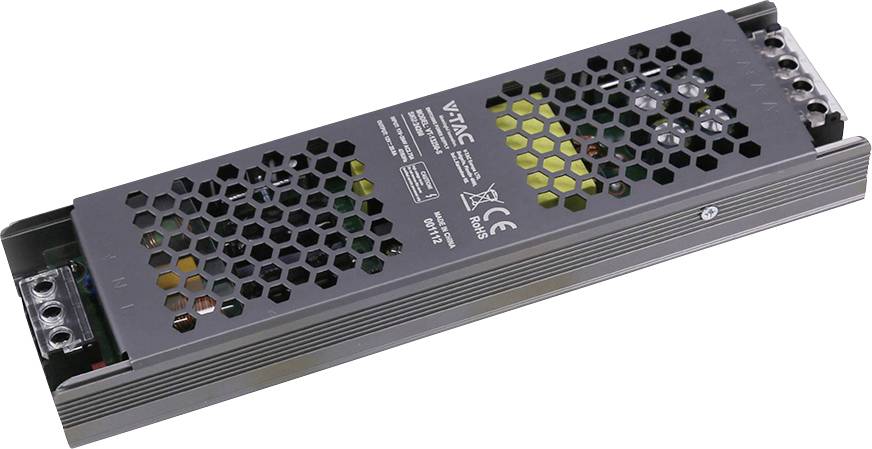

Rectangular metal power supply unit with honeycomb ventilation holes and screw terminals on each end, shown on a white background.

Product packaging for VTAC Slim Series LED power supply, model VT-13250-S SKU24260, showing 250W output and an image of the power supply unit.

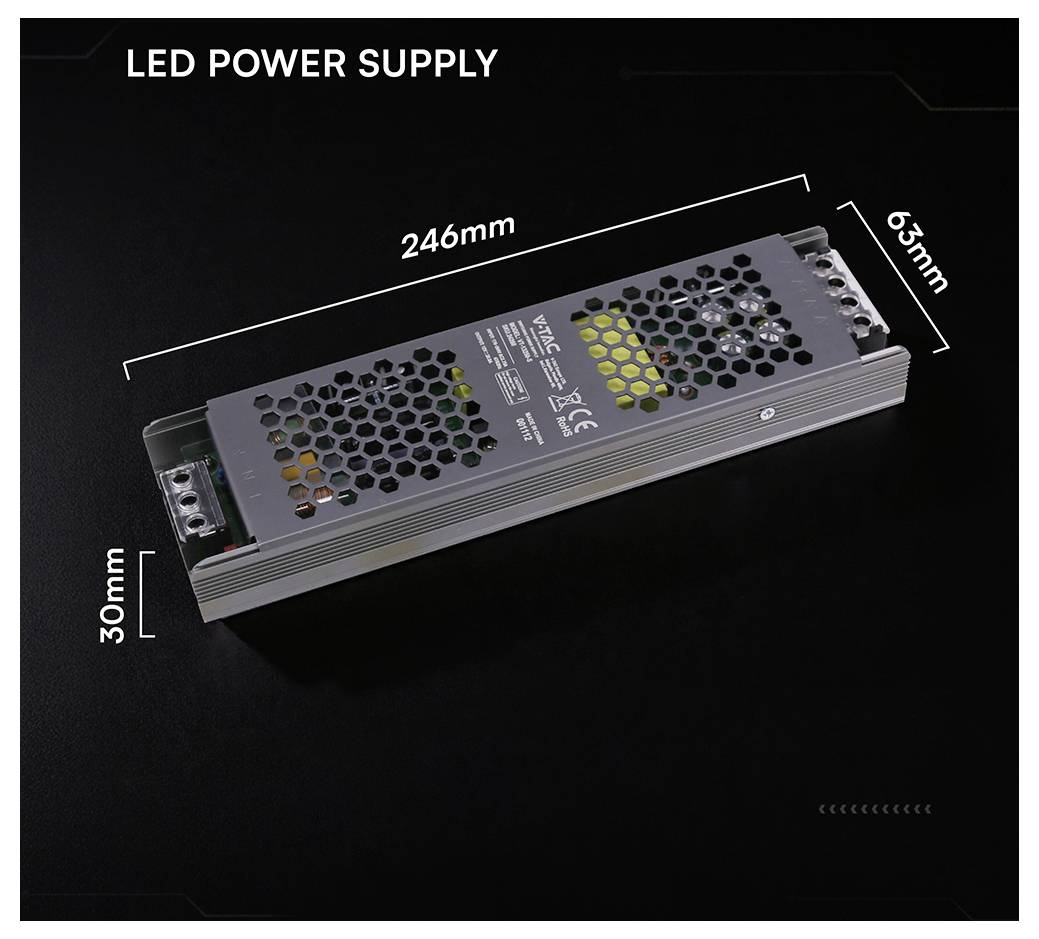

LED power supply shown in perspective with labeled dimensions: 246 mm long, 63 mm wide, and 30 mm high.

1/3

Fast track dispatch on Tue 20 Oct

30 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 32.99 / piece)

€ 32.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-13250-S 250W LED SLIM Power SUPPLY 12V 20.83A IP20

Constant voltage
12 V DC
20.83 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 246 x 63 x 30 mm

Factory colour: Grey

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Max. output current: 20.83 A

Output current (max.) - rounded: 20.83 A

Operating voltage: 240 V

Protection class: IP20

LED driver features: not dimmable

: IP20

Connection: Punchdown block

Max. power: 250 W

No. of outputs: 1 x

Output current (min.): 20.83 A

Input voltage (max.): 264 V AC

Min. input voltage: 176 V AC

Weight: 0.45 kg

Power range: 250 W (max)

Width: 63 mm

Height: 30 mm

Length: 246 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 12 V

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Max. power

IP rating

Output current (max.) - rounded

Output voltage (max.)

Output voltage (min.)

V-TAC VT-13250-S LED transformer Constant voltage 250 W 20.83 A 12 V DC not dimmable 1 pc(s)

Item no:3781505

Fast track dispatch on Tue 20 Oct

30 Piece(s)Conrad Electronic

This article

Punchdown block

250 W

IP20

20.83 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

V-TAC VT-13036 LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781507

Fast track dispatch on Tue 20 Oct

44 Piece(s)Conrad Electronic

Punchdown block

36 W

IP67

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

V-TAC VT-13036-S LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781499

Fast track dispatch on Tue 20 Oct

90 Piece(s)Conrad Electronic

Punchdown block

36 W

IP20

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

V-TAC VT-13060 LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781508

Fast track dispatch on Tue 20 Oct

37 Piece(s)Conrad Electronic

Open end cable

60 W

IP67

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

V-TAC VT-13060-S LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781500

Fast track dispatch on Tue 20 Oct

60 Piece(s)Conrad Electronic

Punchdown block

60 W

IP20

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

V-TAC VT-13075-S LED transformer Constant voltage 75 W 6.25 A 12 V DC not dimmable 1 pc(s)

Item no:3781501

Fast track dispatch on Tue 20 Oct

57 Piece(s)Conrad Electronic

Punchdown block

75 W

IP20

6.25 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

V-TAC VT-13100 LED transformer Constant voltage 100 W 8.3 A 12 V DC not dimmable 1 pc(s)

Item no:3781509

Fast track dispatch on Tue 20 Oct

29 Piece(s)Conrad Electronic

Open end cable

100 W

IP67

8.3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

V-TAC VT-13120-S LED transformer Constant voltage 120 W 10 A 12 V DC not dimmable 1 pc(s)

Item no:3781502

Fast track dispatch on Tue 20 Oct

45 Piece(s)Conrad Electronic

Punchdown block

120 W

IP20

10 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

V-TAC VT-13150 LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781510

Fast track dispatch on Tue 20 Oct

29 Piece(s)Conrad Electronic

Open end cable

150 W

IP67

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

V-TAC VT-13150-S LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781503

Fast track dispatch on Tue 20 Oct

44 Piece(s)Conrad Electronic

Punchdown block

150 W

IP20

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781505 V-TAC VT-13250-S LED transformer Constant voltage 250 W 20.83 A 12 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
