Number
Total (1 m = € 0.97)
€ 48.73
plus VAT.
Technical specifications
- Conductor material: Copper
- Conductor class: Single-wire
- Wire identification: Colour
- With ground wire: Yes
- Max. Load Conductor temperature 70 °C
- Side wire: No.
- Protective cover: Without
- Reinforcement/armoring: Without
- Jacket material: Polyvinyl chloride (PVC)
- Fire classification to EN 13501-6: ECA
- Min Permitted bending radius, stationary use/fixed installation: 37 mm
- Smoke arm according to IEC 61034-2: No.
- Product type
Power feed
- Cable type
NYM-J
- No. of leads
3 x
- Cross section (each core)
1.50 mm²
- Cross section
3 x 1.50 mm²
- Cable features
Flat
Flexible
- Factory colour
Grey
- Outside Ø
9.10 mm
- Content
50 m
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Packaged
Yes
- Shielded
No
- Manufacturer part #
VER NYM-J 3x 1,5 Eca Ri.50
- Insulation material
Polyvinyl chloride
- Min. temperature range (flexible installation)
5 °C
- Max. temperature range (flexible installation)
70 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
70 °C
- Type
VER NYM-J 3x 1,5 Eca Ri.50
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3336672 VER NYM-J 3x 1,5 Eca Ri.50 Power feed NYM-J 3 x 1.50 mm² Grey 50 m

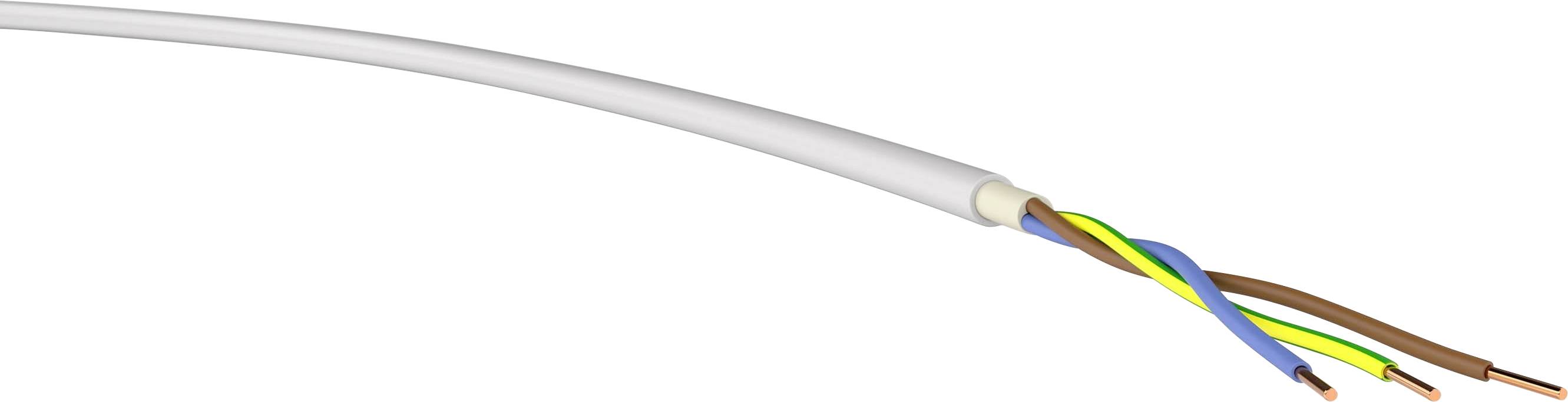

Description
Complies with VDE 0250. For laying over, on, in and under plaster in dry, damp and wet rooms as well as in walls and concrete, except for direct embedding in shaken, vibrated or rammed concrete. Also suitable for outdoor use, provided that it is protected from direct sunlight - but not in earth. Wire color coding according to VDE 0293. Max. operating temperature: 70 °C
This text is machine translated.
This text is machine translated.
Hints
Made in Europe
