Virax 221070 Pipe freezer
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,469.75 / piece)
€ 1,469.75
plus VAT.
Highlights & Details

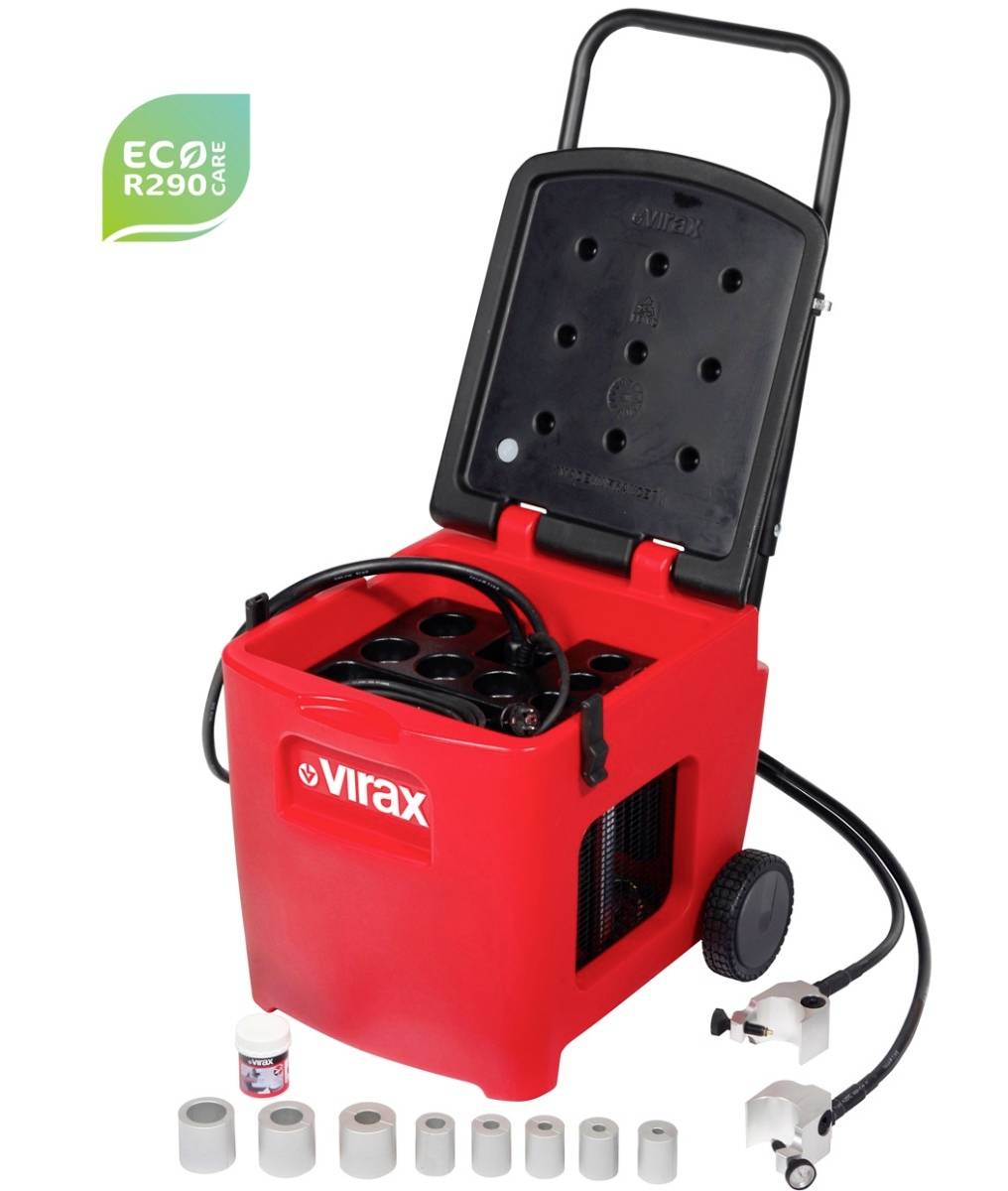

Siberia® 2" electrical pipe freezer
- Economical use: No use of gas bottle. Easy to transport: Thanks to the folded arch and the wheels. Very short freezing time: To reduce the operating time. User-friendly thanks to the thermometer in the cold pliers.
Technical specifications
- Product type
Pipe freezer
- Compatible with diameters of
10 - 54 mm
- Weight
40 kg
- Suitable for diameters of (max.)
54 mm
- Suitable for pipe diameter (min.)
10 mm
Documents & Downloads
Datasheet
Datasheet 3553074 Virax 221070 Pipe freezer
User & Safety Instructions
User & Safety Instructions 3553074 Virax 221070 Pipe freezer
Information
Information 3553074 Virax 221070 Pipe freezer
Security datasheet
Security datasheet 3553074 Virax 221070 Pipe freezer
Description
With Siberia®, heating elements or fittings can be replaced without having to lock or drain the water system of the heating system.

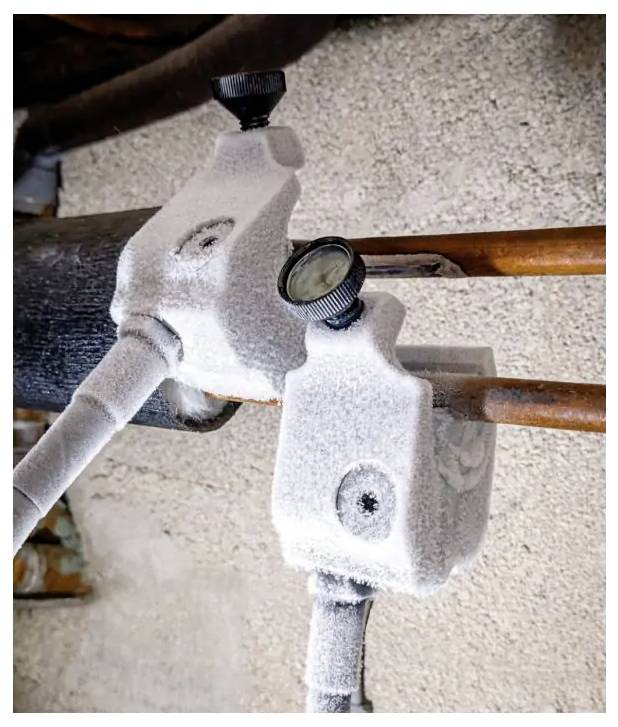

Quickly create an ice drop in the pipeline without harming the environment, thanks to the effectiveness of R290 gas: More environmentally friendly than the R404A refrigerant, without compromising performance.

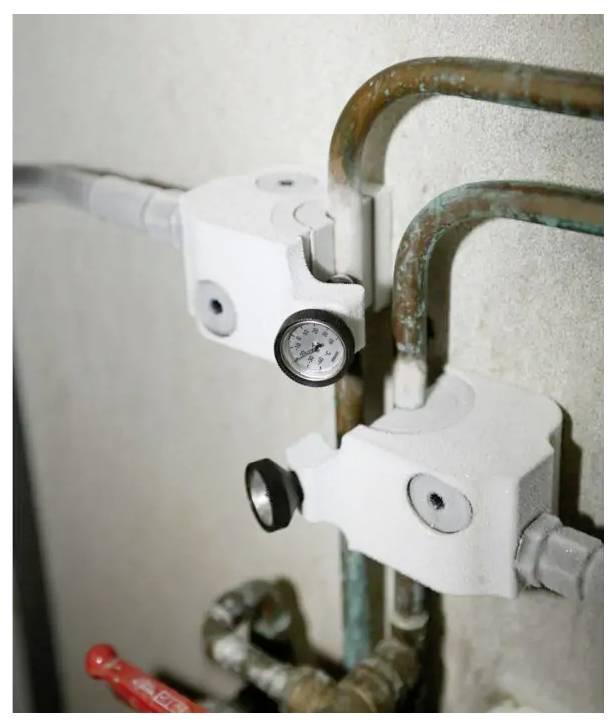

A thermometer is installed in the refrigeration tools to control the freezing process. The pliers can be fastened quickly and easily using the integrated fixing screws.
Technical data: Motor: 230V ~50Hz
Cooling power 309 W to -25°C
IP 20 protection
Refrigerant: R290 55g
This text is machine translated.
Quickly create an ice drop in the pipeline without harming the environment, thanks to the effectiveness of R290 gas: More environmentally friendly than the R404A refrigerant, without compromising performance.
A thermometer is installed in the refrigeration tools to control the freezing process. The pliers can be fastened quickly and easily using the integrated fixing screws.
Technical data: Motor: 230V ~50Hz
Cooling power 309 W to -25°C
IP 20 protection
Refrigerant: R290 55g
This text is machine translated.
Features
- Capacity "
- Ø 10 mm - 3/4" to Ø 54 mm - 2.1/8".
- Iron pipe : Ø 1/8" to Ø 2".
Scope of delivery
- 16 fitting pieces for the diameter 12 - 14/15 - 16 - 18 - 22 - 28 - 35 - 42 (8 pairs), 1 tube heat conductive paste (article no. 221069).
