Speaker in close-up with a black cone and blue centre, suitable for audio devices.

Speaker in close-up with a black cone and blue centre, suitable for audio devices.

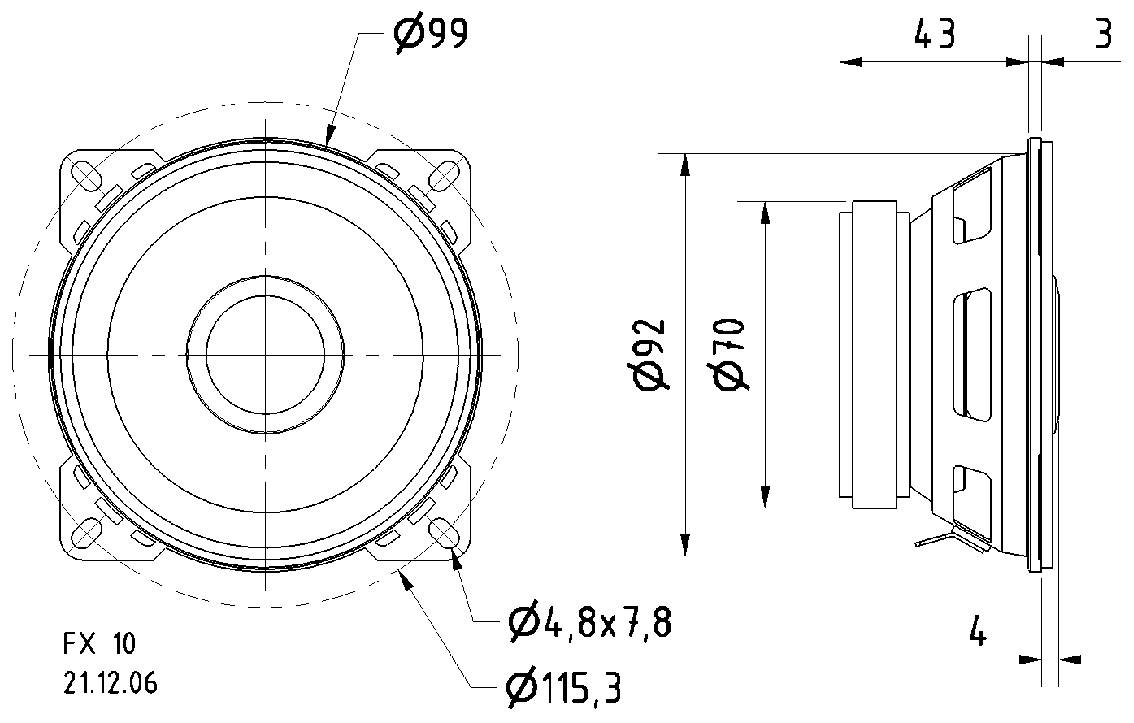

Technical drawing of a speaker with dimensions: Diameter ≤115.3 mm, Depth 43 mm. Front and side views show structural details.

1/2

Visaton

Fast track dispatch on Fri, 11 Sep

56 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 22.68 / piece)

€ 22.68

plus VAT.

Report legal concerns

Visaton FX 10 broadband loudspeaker

Highlights & Details

Waterproof polypropylene membrane.
Metal basket

Technical specifications

Product type: 2-way coaxial speaker

Speaker size (inch): 4 inch

Speaker size (cm): 10 cm

RMS capacity: 40 W

Max. load: 70 W

Min. frequency: 70 Hz

Max. frequency: 22000 Hz

Features: Water-proof PP diaphragm

Impedance: 4 Ω

Recess diameter: 92 mm

Recess depth: 43 mm

Weight: 400 g

Frequency range: 70 Hz - 22000 Hz

Max. RMS power: 40/70 W

Frequency range: 22 - 70 000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 303694 Visaton FX 10 - 4 Ohm 4 inch 10 cm 2-way coaxial speaker 40 W 4 Ω Water-proof PP diaphragm

Description

10 cm (4") 2-way coaxial loudspeaker with standard Euro-basket. Integrated crossover filter (capacitor) for the tweeter.
