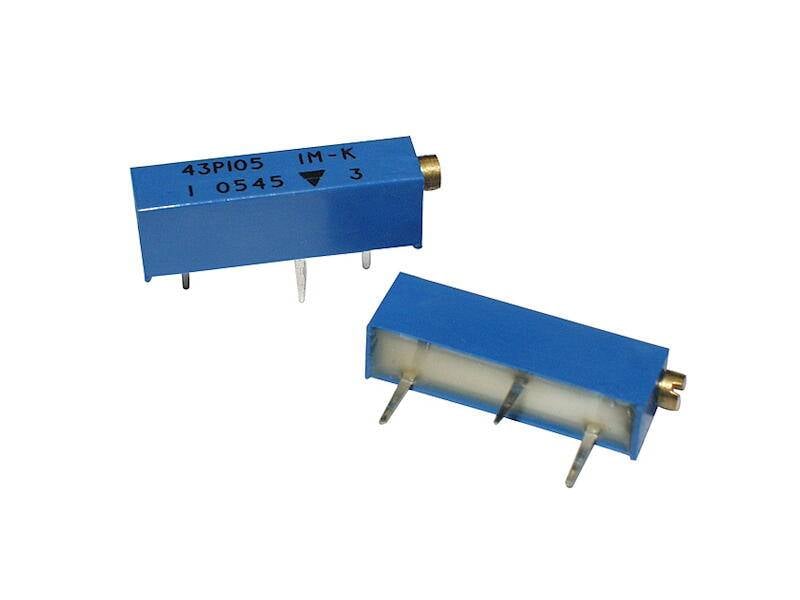

Vishay M43P204KB40 Precision Spindle Trimming Potentiometer
EAN:
Part number:
Item no:
Datasheet (PDF)
17 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€
Technical specifications
- Housing material: Epoxy Resin
- Potentiometer features
15-pos
- Resistance
200 kΩ
- Resistance characteristic
linear
- Power rating
0.75 W
- Mechanical angle
5400°
- Connection
Print
- Type
Cermet
- Operation type
side
- Min. temperature
-55 °C
- Max. temperature
+125 °C
- Tolerance ±
10 %
- Width
19 mm
- Height
6.3 mm
- Dim
(W x H x D) 19 x 6.3 x 4.83 mm
- Content
1 pc(s)
- Type
M43P204KB40
- RoHS-compliant
Yes
- Depth
4.83 mm
- Temperature range
-55 - +125 °C
- Product type
String potentiometer
Documents & Downloads
Datasheet
Datasheet 425141 Vishay M43P204KB40 Precision Spindle Trimming Potentiometer
Description
Spindle drive for highly accurate adjustments. High long-term stability. For applications where high reliability and greatest protection against external influences is required. Linear characteristic curve.
Hints
Prices specified by resistance.
