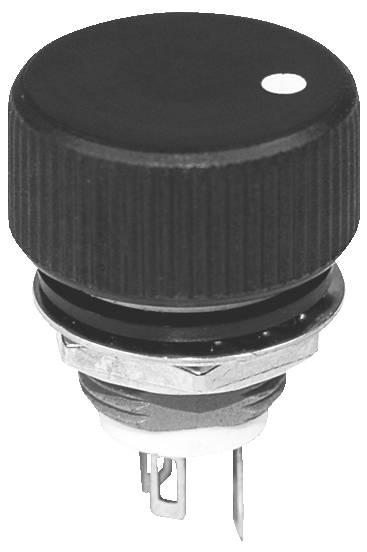

Vishay P16NP103MAB15 P16NP103MAB15 Cermet potentiometer Sealed 1 W 10 kΩ 1 pc(s)
Part number:
Item no:
Product type
Cermet potentiometer
Potentiometer features
Sealed
Resistance
10 kΩ
Resistance characteristic
linear
Power rating
1 W
Datasheet (PDF)
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Highlights & Details
Vishay 1W-cermet knob potentiometer linear 10K
- 10 kΩ
- linear
Technical specifications
- ESD Packaging: No ESD
- Series P16
- Design: Vertical
- Axis: Plastic button
- Button, diameter: 16 mm
- Resistance value 10 kOhm
- Resistance unit: KOhm
- Resistance value_1: 10
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 1 W
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max voltage 350 V
- Breakdown voltage (RMS) 2,500 V
- Max. permissible switching current at Umax 10 A
- Temperature coefficient, typ.: 150 ppm/°
- Insulation resistance 10^6 MOhm
- Lifetime: 50,000 cycles
- Mechanical rotation angle 300 °
- Electrical angle of rotation 270 °
- Stop strength 80 Ncm
- Torque 1.8 Ncm
- Product type
Cermet potentiometer
- Potentiometer features
Sealed
- Resistance
10 kΩ
- Resistance characteristic
linear
- Power rating
1 W
- Cut-off voltage
350 V
- Mechanical angle
300°
- Electrical angle
270°
- Torque (max.)
1.8 Ncm
- Impact tolerance
80 Ncm
- Axle type
Plastic
- Temperature coefficient
150 ppm/°C
- Tolerance ±
10 %
- Insulation resistance
10^6 MΩ
- Content
1 pc(s)
- Type
P16NP103MAB15
- RoHS-compliant
Yes
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Certification marks
CEEE41300
- Weight
4.5 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3454696 Vishay P16NP103MAB15 P16NP103MAB15 Cermet potentiometer Sealed 1 W 10 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3454696 Vishay P16NP103MAB15 P16NP103MAB15 Cermet potentiometer Sealed 1 W 10 kΩ 1 pc(s)
Description
Application: For professional and industrial applications (Cermet)
This text is machine translated.
This text is machine translated.
Features
- • Cermet button potentiometer
- • Plastic button black
- • High performance
- • Compact design
- • Excellent stability
- • completely sealed
- • High mechanical strength
Scope of delivery
- P16NP103MAB15.
