Vogt Verbindungstechnik 3924N IDC 3924N Quick-Connect clip flexible: 0.2-0.5 mm² fixed: 0.2-0.5 mm² Number of pins: 2 1

A yellow, rectangular safety relay with a black housing, used in automation technology.

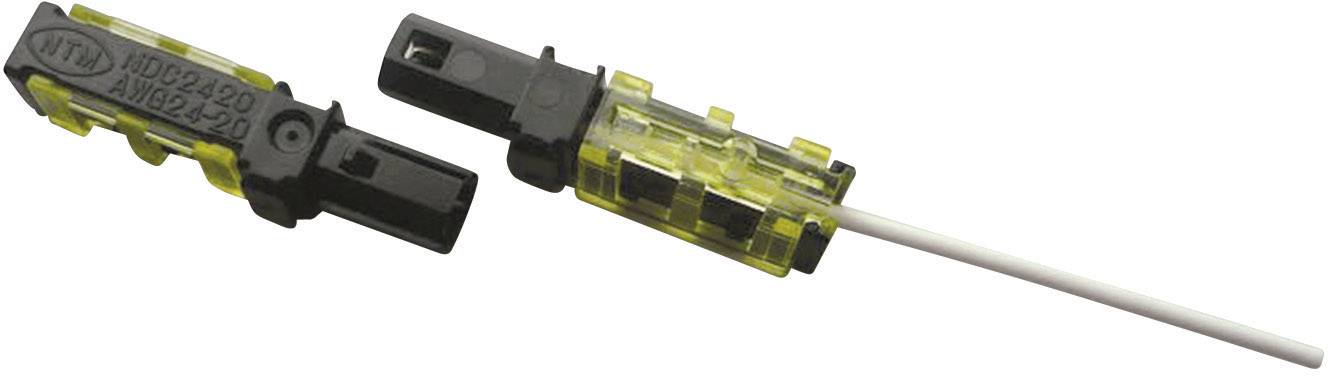

A black and yellow inline fuse holder opened, showing the end of a cable, ready for connection.

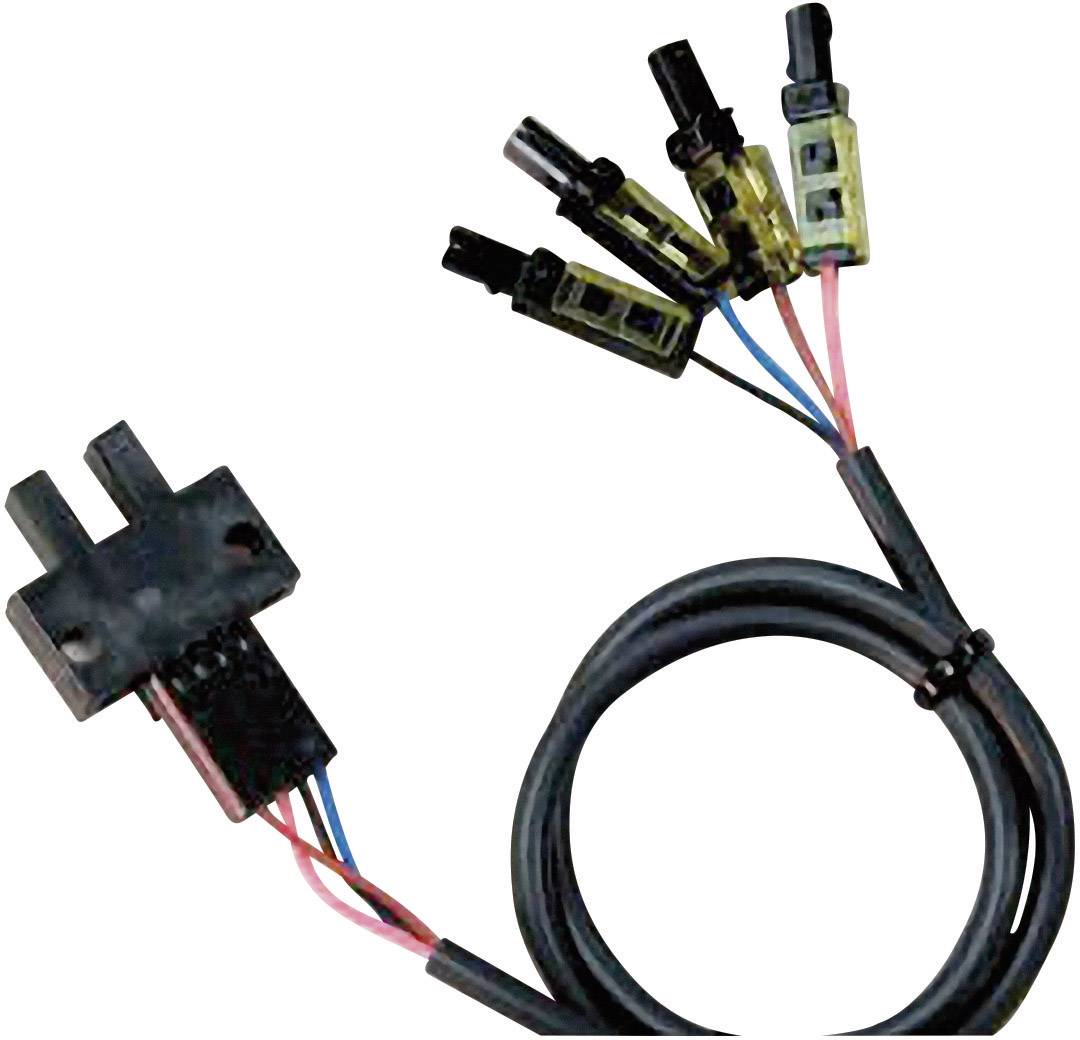

A black-sheathed cable with four colour-coded wires terminates in individual black connectors.

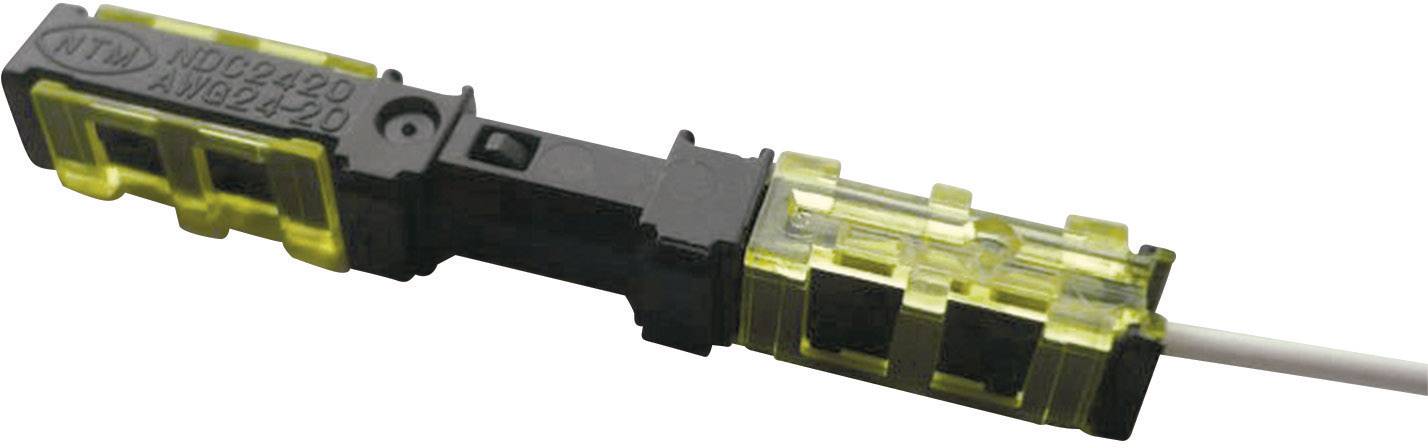

Black plug with yellow casing and screw terminal, attached to a white cable.

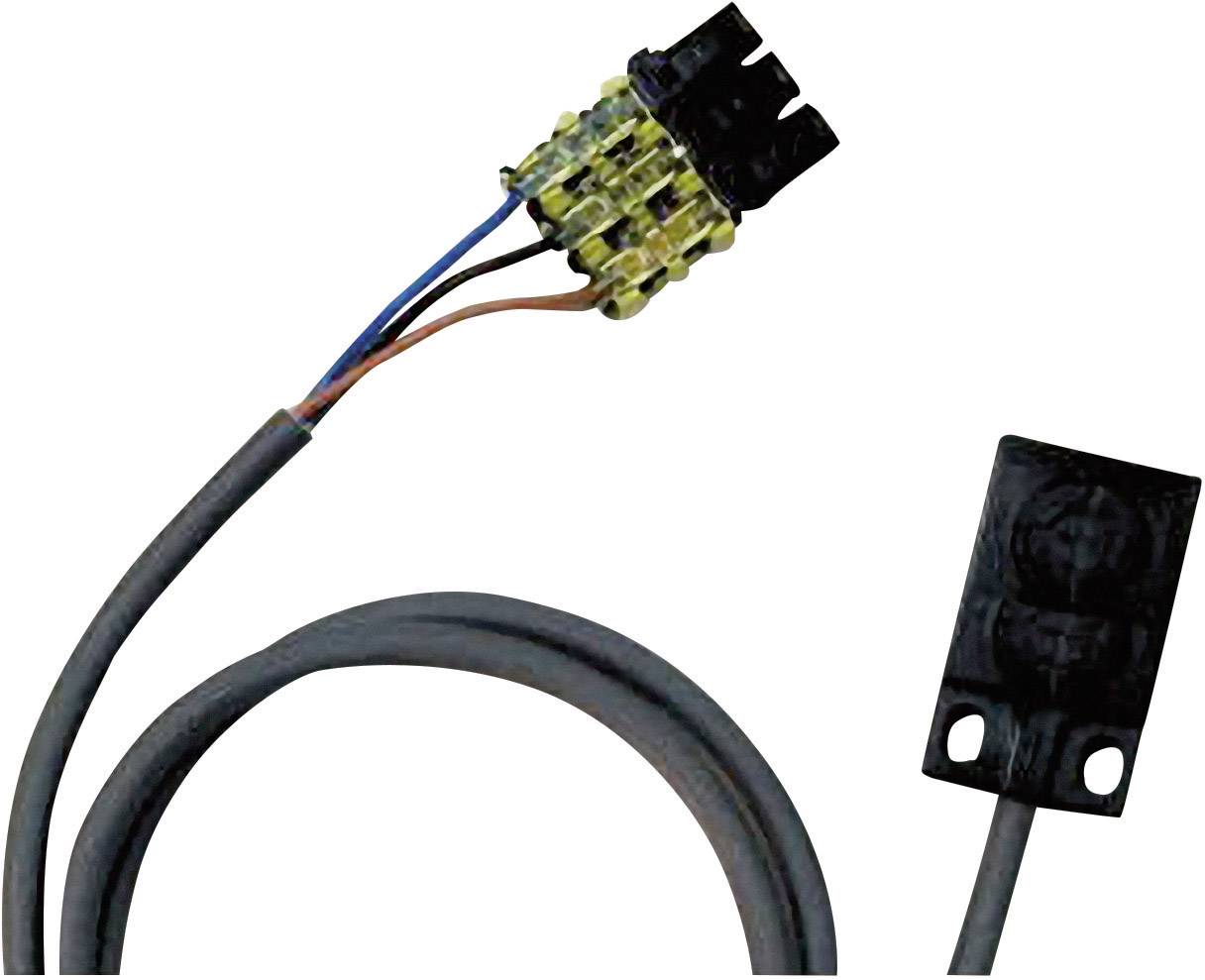

An electrical cable with a black plug is connected to a connector. To the right, another black plug can be seen.

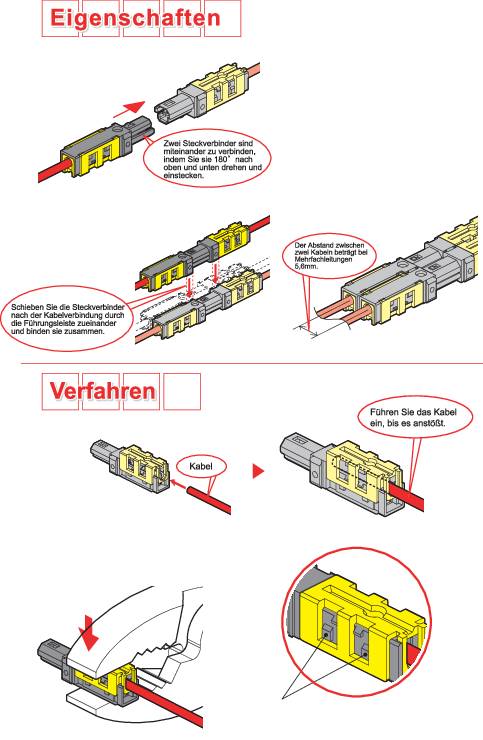

'Plug bridge' and 'cable' shown. Above: Pulling and sliding the plug bridge. Below: Inserting the cable into the connection.

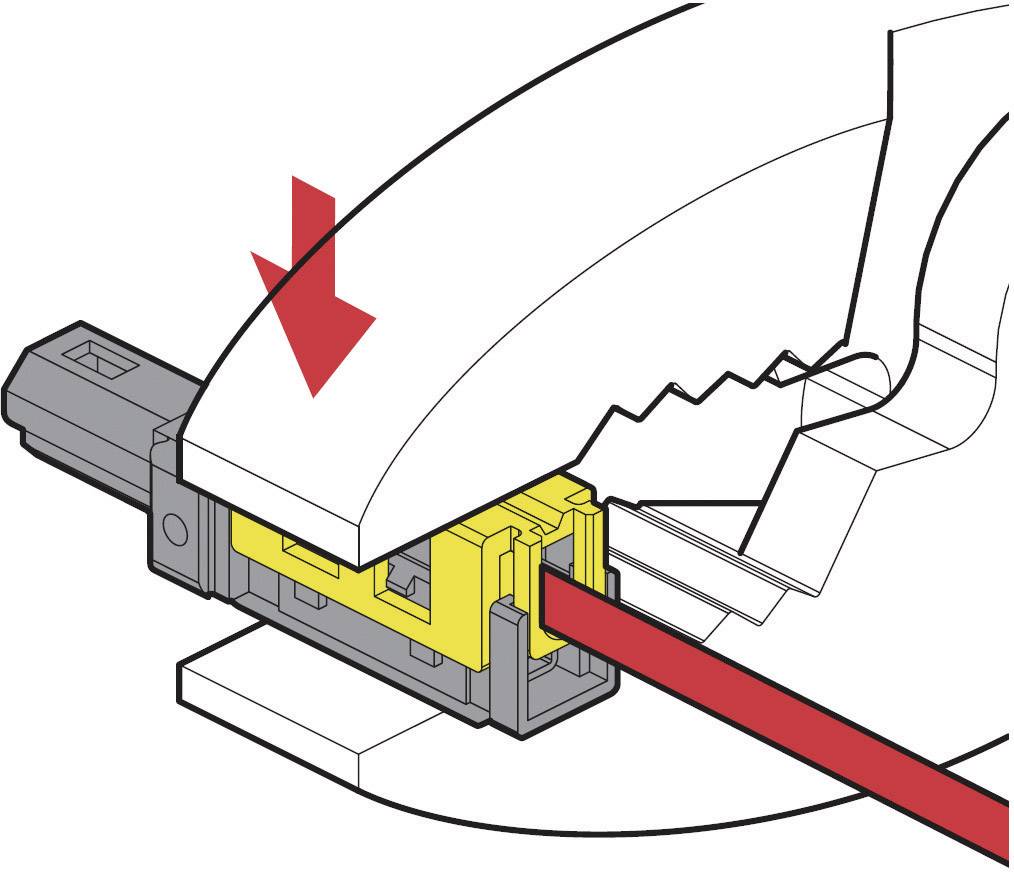

A cable is placed in a crimping tool, and the cable end is connected by pressing it with a yellow connector.

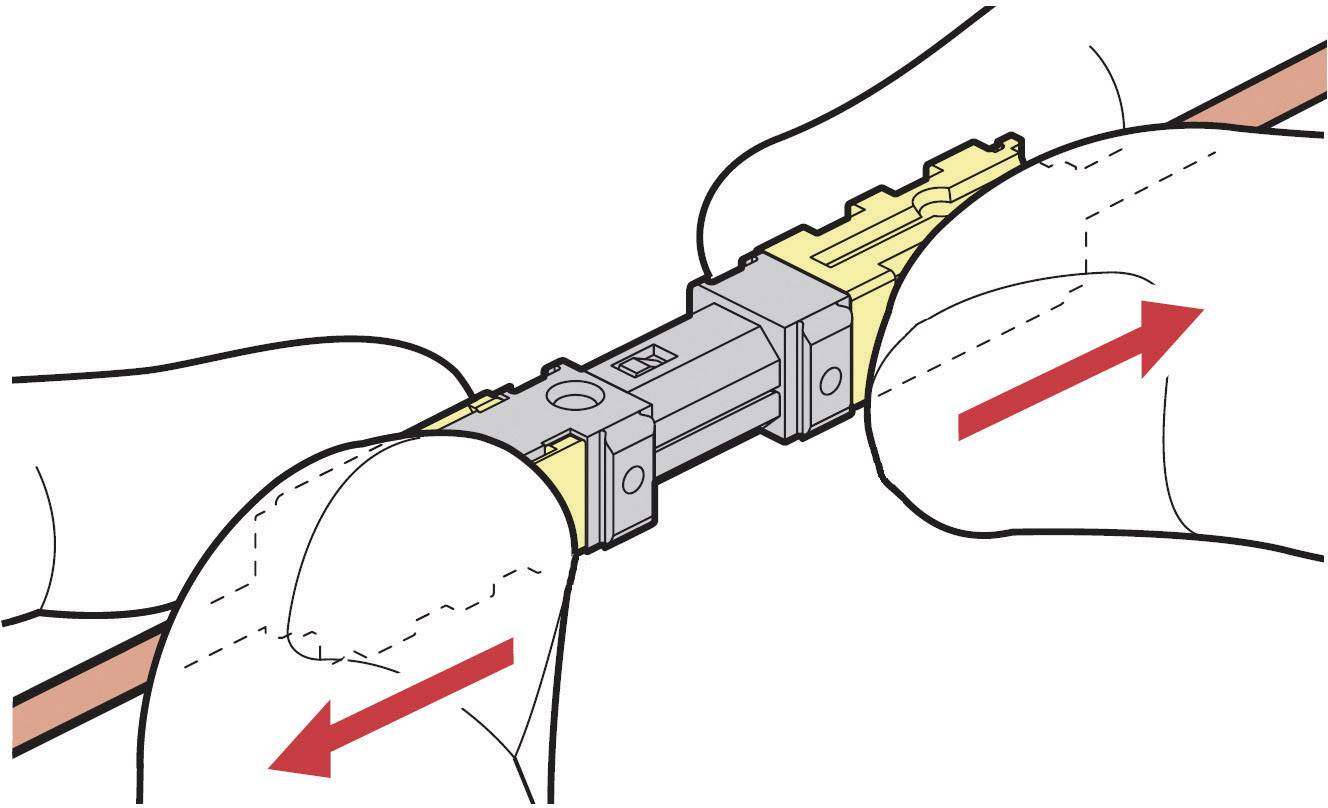

Two hands are pressing a cable plug together. Red arrows indicate the direction of movement when compressing the connection.
1/8
Product type
Quick-Connect clip
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
0.5 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
0.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
143 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.79 / piece)
€ 1.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Idc Connector

  • Stripping
  • Can be used as a plug and as a socket

Our service for you

Technical specifications

Product type

Quick-Connect clip

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

0.5 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

0.5 mm²

Number of pins

2

Factory colour

Black

Yellow

Nominal current

2 A

Nominal current - rounded value

2 A

Content

1 pc(s)

Dim

(L x W) 25.8 mm x 5.6 mm

Manufacturer part #

3924N

24 - 20

Connection

Cut & Clip

Contact material

Cadmium free (Ag-alloy)

Nominal voltage

100 V

Width

5.6 mm

Length

25.8 mm

RoHS-compliant

Yes

Temperature range

-20 - +75 °C

Documents & Downloads

Datasheet

Datasheet 788802 Vogt Verbindungstechnik 3924N IDC 3924N Quick-Connect clip flexible: 0.2-0.5 mm² fixed: 0.2-0.5 mm² Number of pins: 2 1

Description

The single connector can be used as a plug or socket can be used. Two plug-in connectors are connected with each other by 180° rotated against each other and are plugged in together. The connection can be released by pulling apart. For multi-pin connections, many of the connector be coupled with each other. For this purpose, the individual parts by a guide strip simply pushed each other.
Application: By the LSA technology is a stripping is not required. The cable is easy to the stop, the contacts is done by press together with a pair of pliers. Thanks to the 4 retaining hooks, the connection is not more.

This text is machine translated.
