Name: VOLTCRAFT CSP-320 Bench PSU (adjustable voltage) 0 - 30 1 - 3 A 90 W AC and battery operation No. of outputs 1 x
Brand: VOLTCRAFT
SKU: 3438554
Availability: InStock

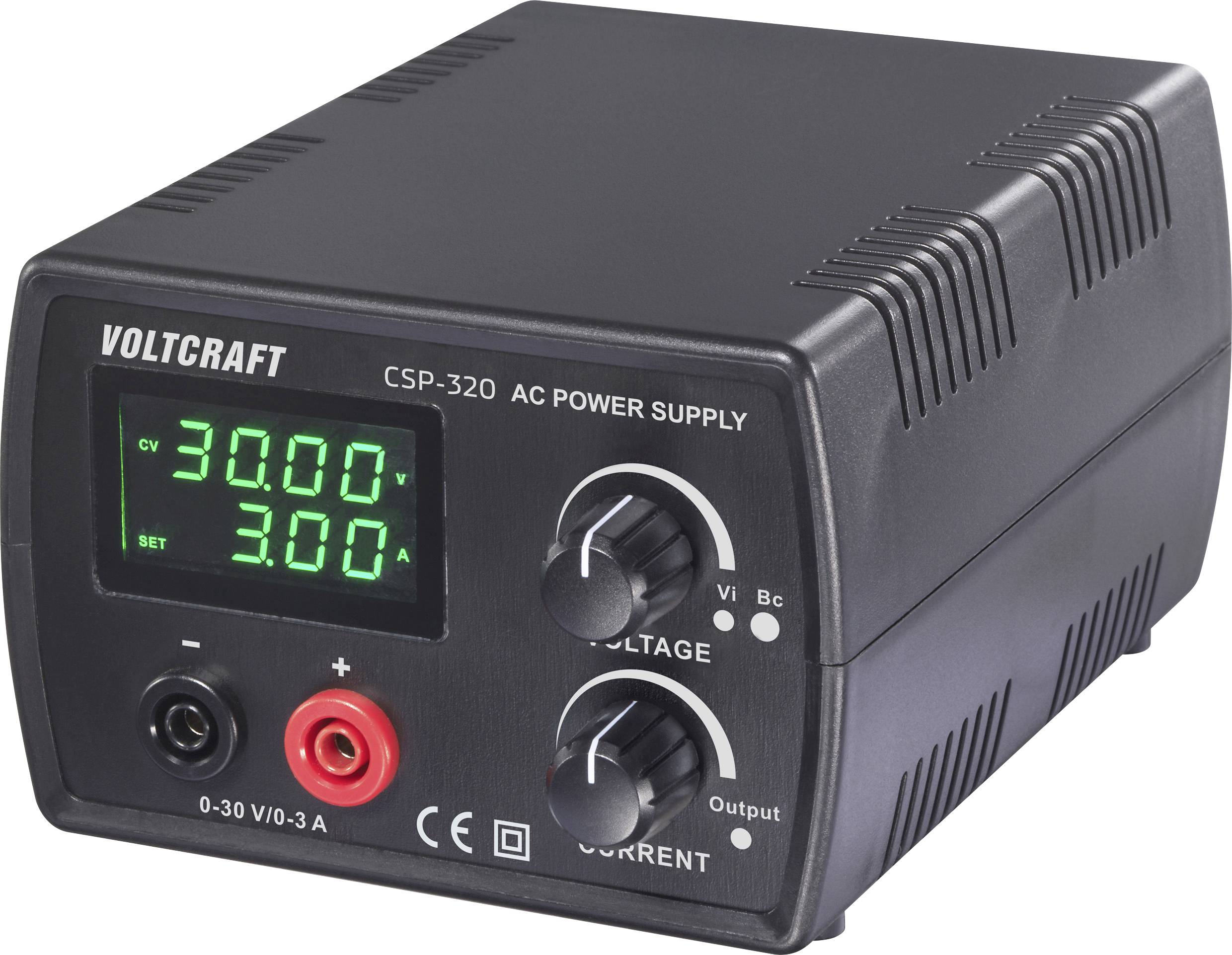

'Voltcraft CSP-320 AC power supply' with two knobs labeled 'Voltage' and 'Current', digital display shows '30.00V' and '3.00A'.

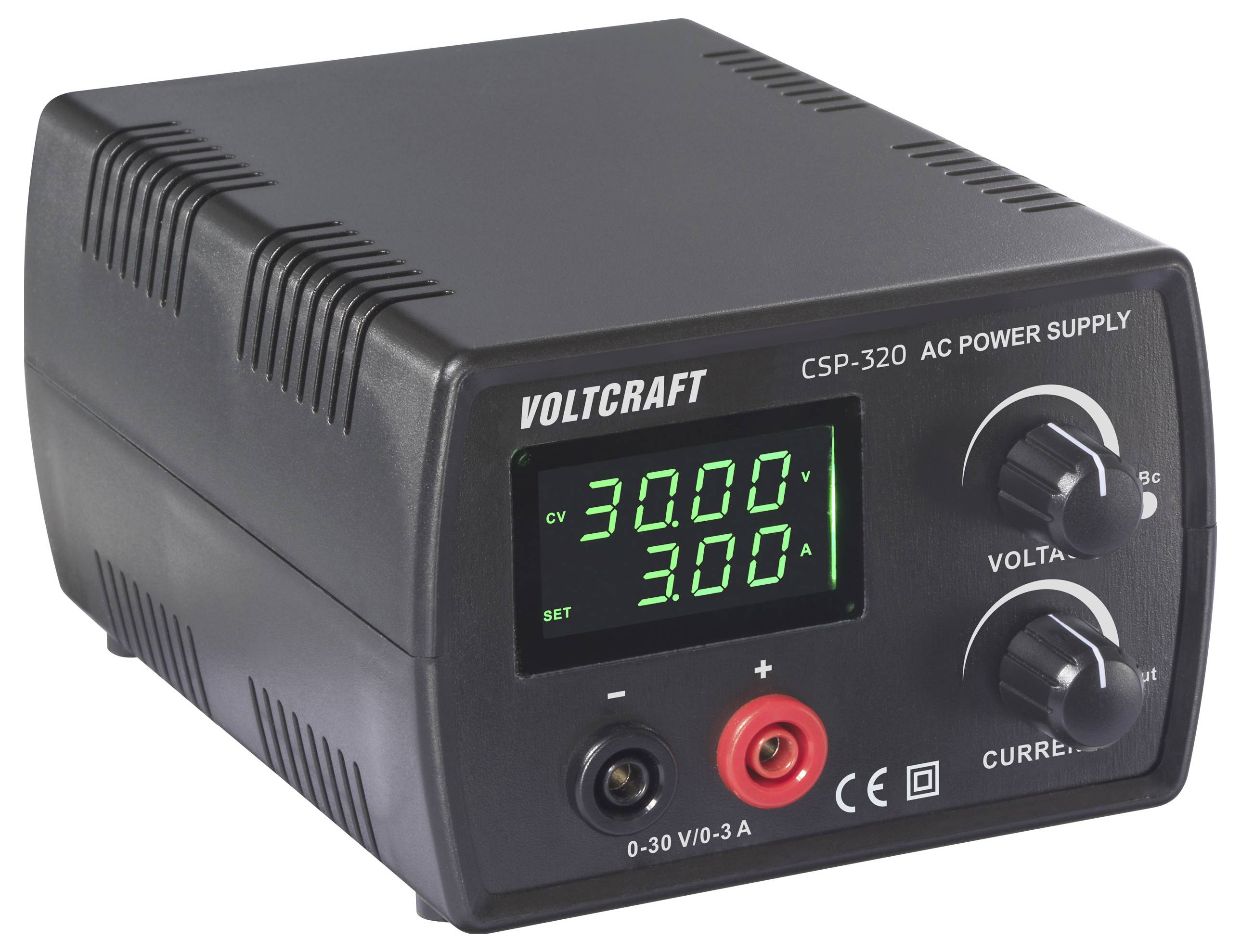

A black Voltcraft CSP-320 AC power supply displaying '30.00V' and '3.00A' on its digital screen with voltage and current knobs.

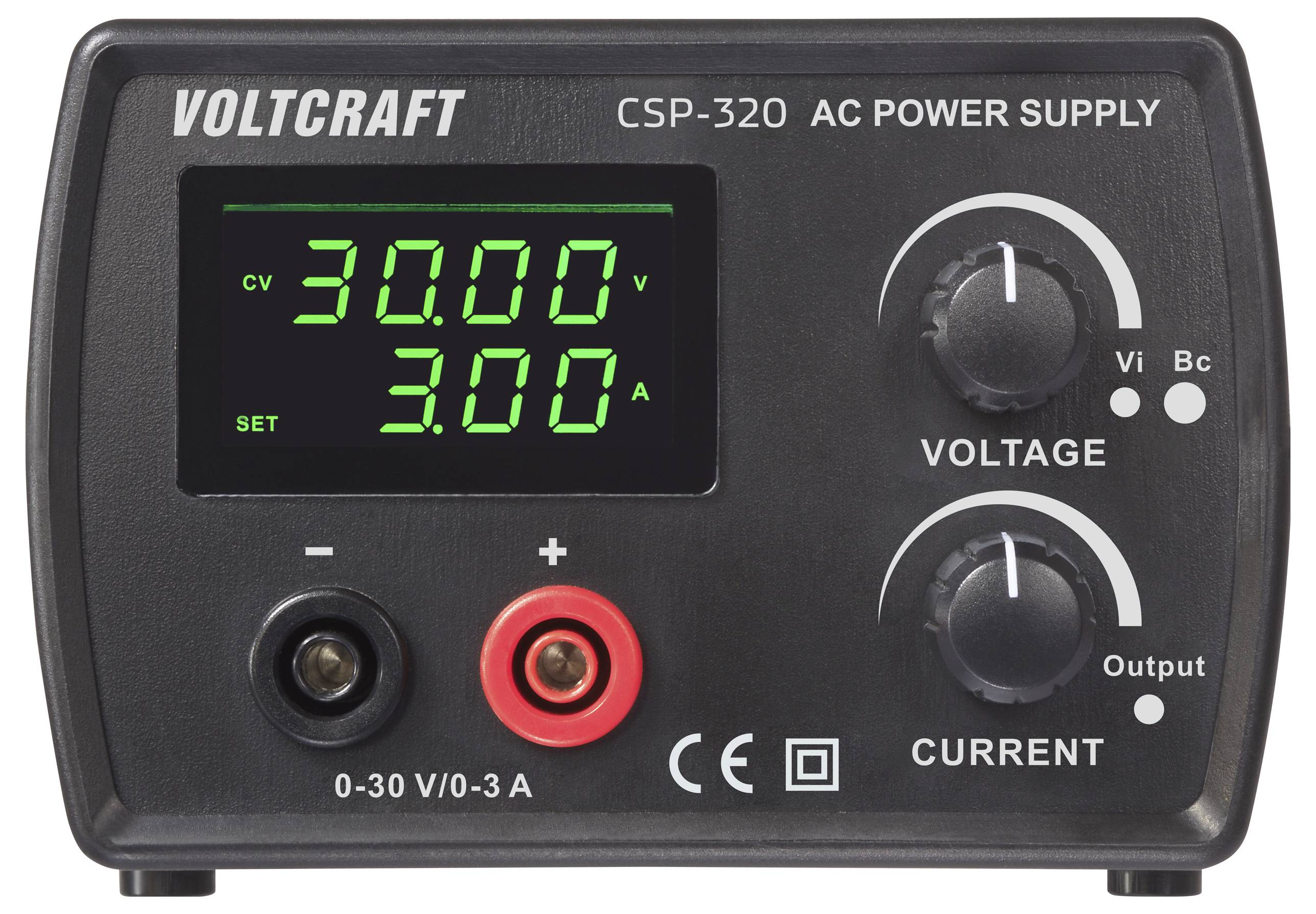

'Voltcraft CSP-320 AC power supply' displaying '30.00V' and '3.00A', with voltage and current knobs, CE certification label visible.

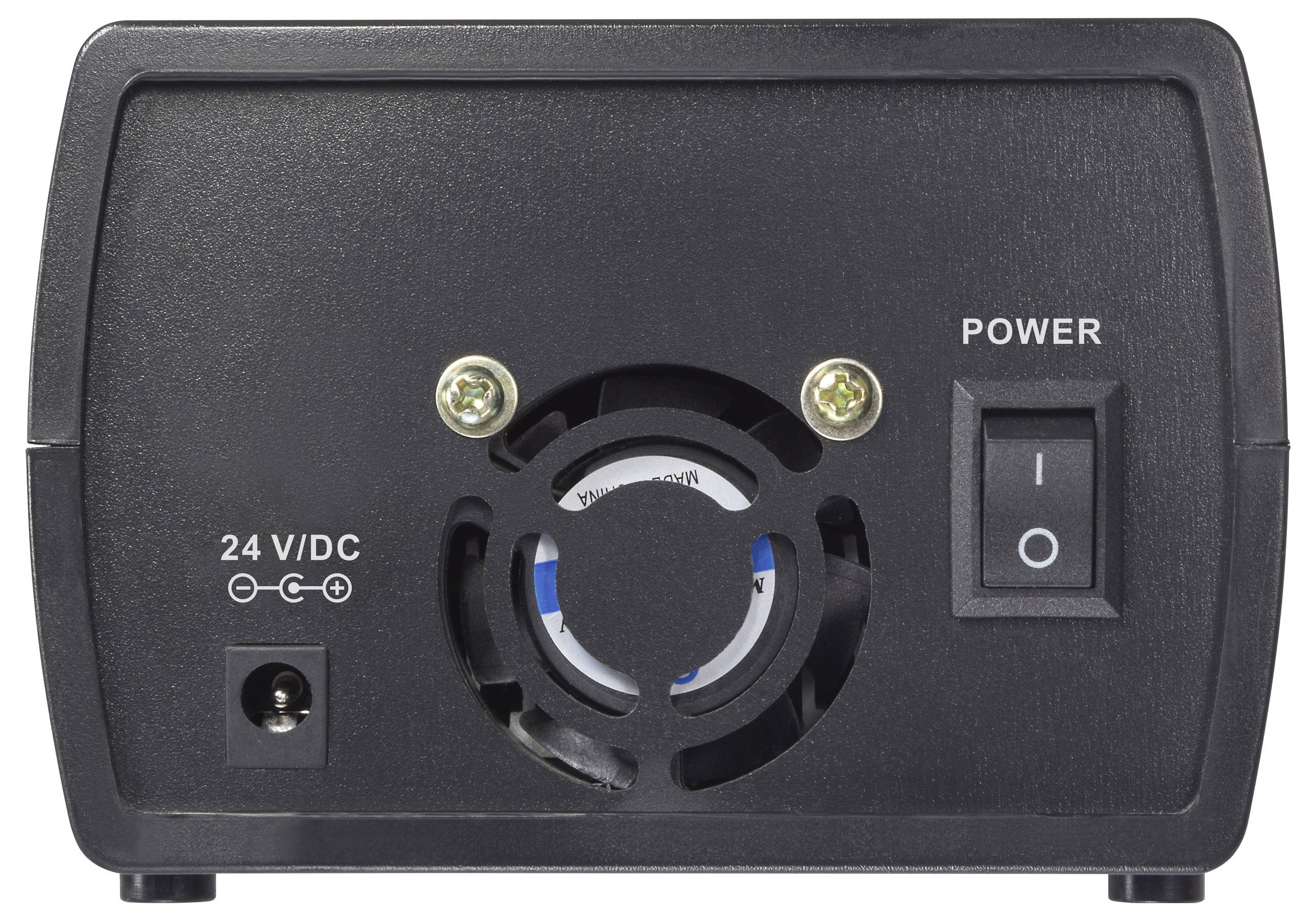

The image shows the back view of an electronic device with a power switch labeled 'POWER I O', a 24 V/DC input, and a fan vent.

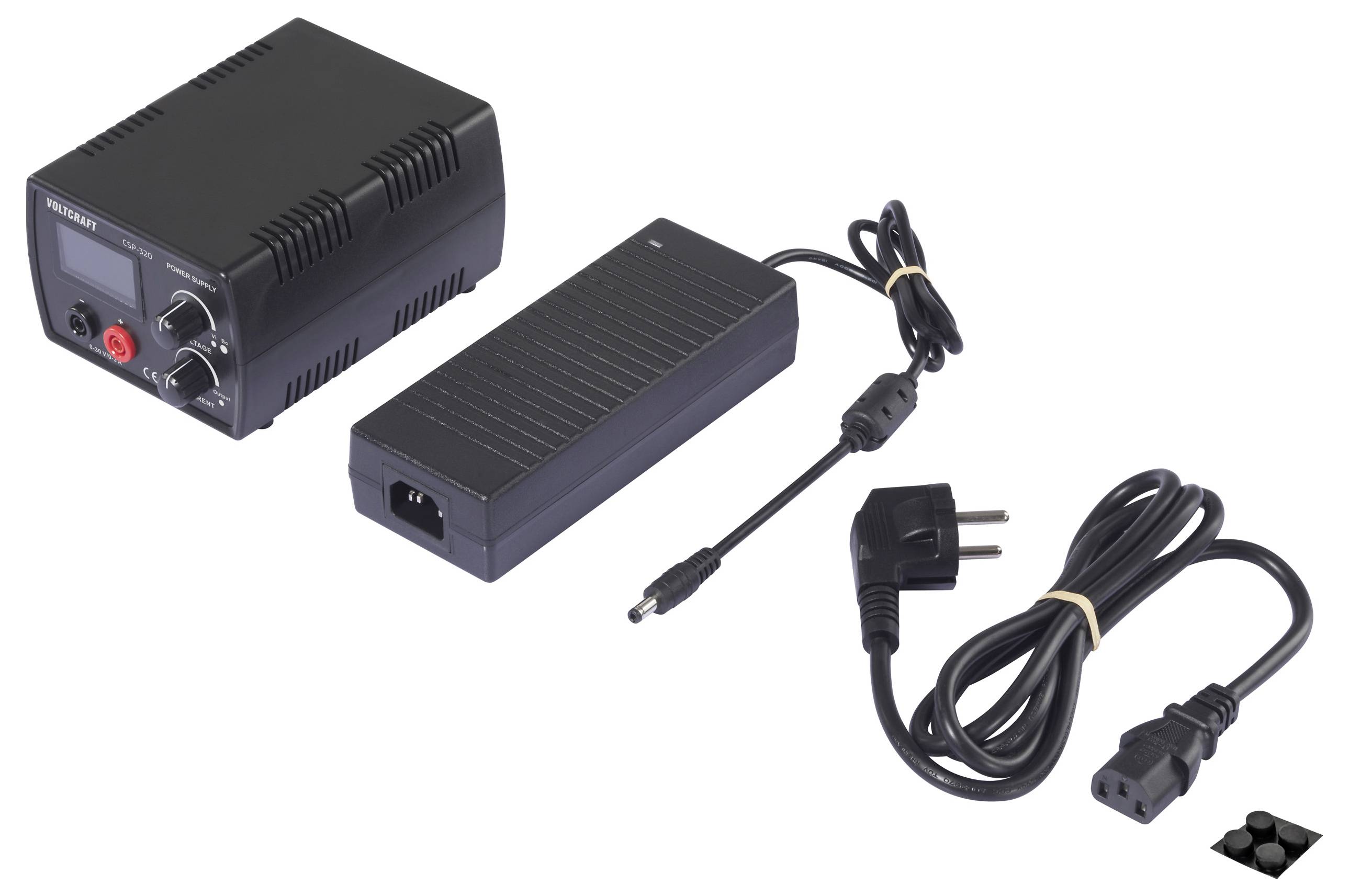

A bench power supply unit with digital display, power adapter, and cords, used for providing adjustable voltage and current.

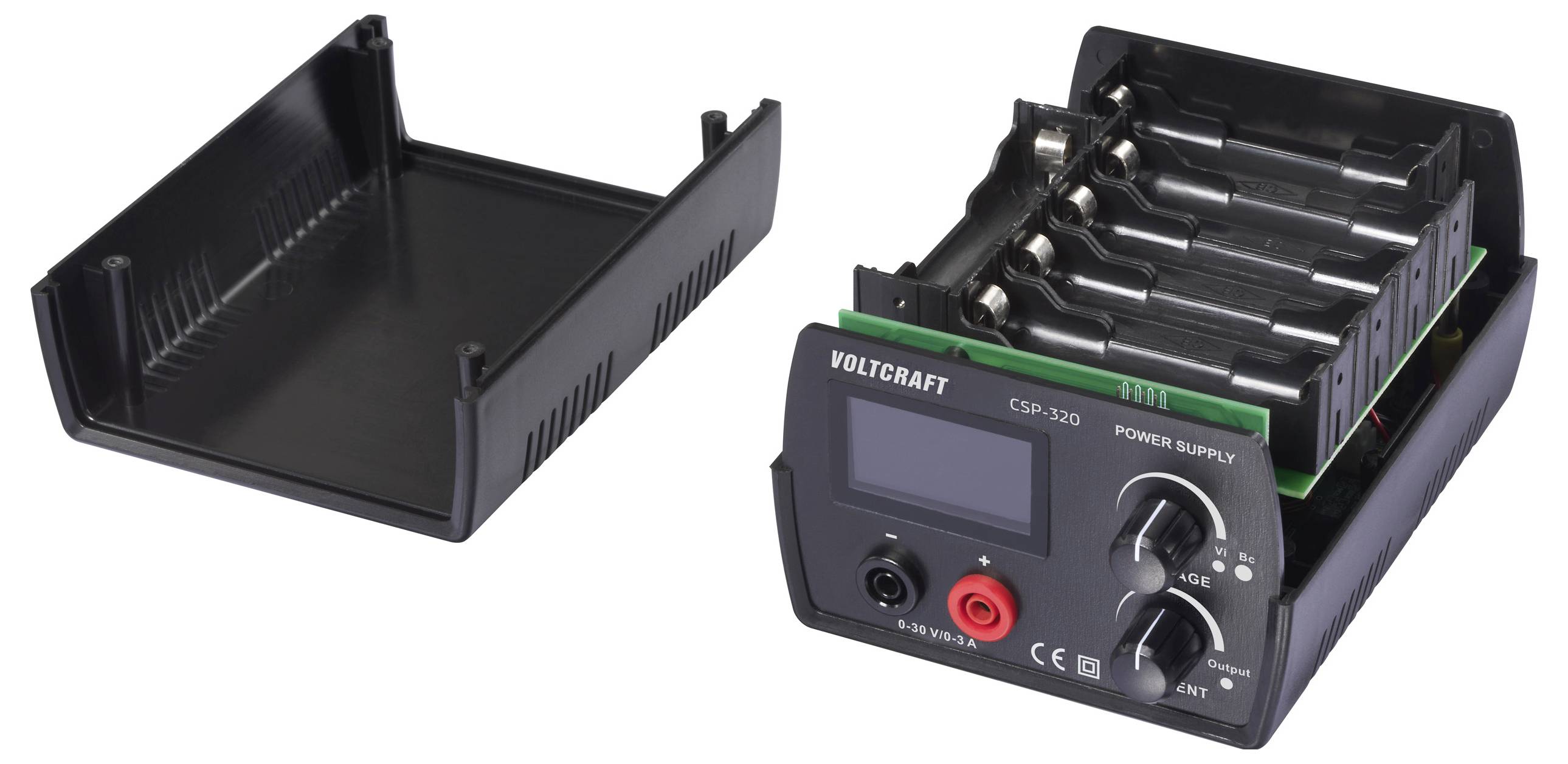

Battery charger with several slots and a digital display, alongside its detached cover, used for charging multiple AA or AAA batteries.

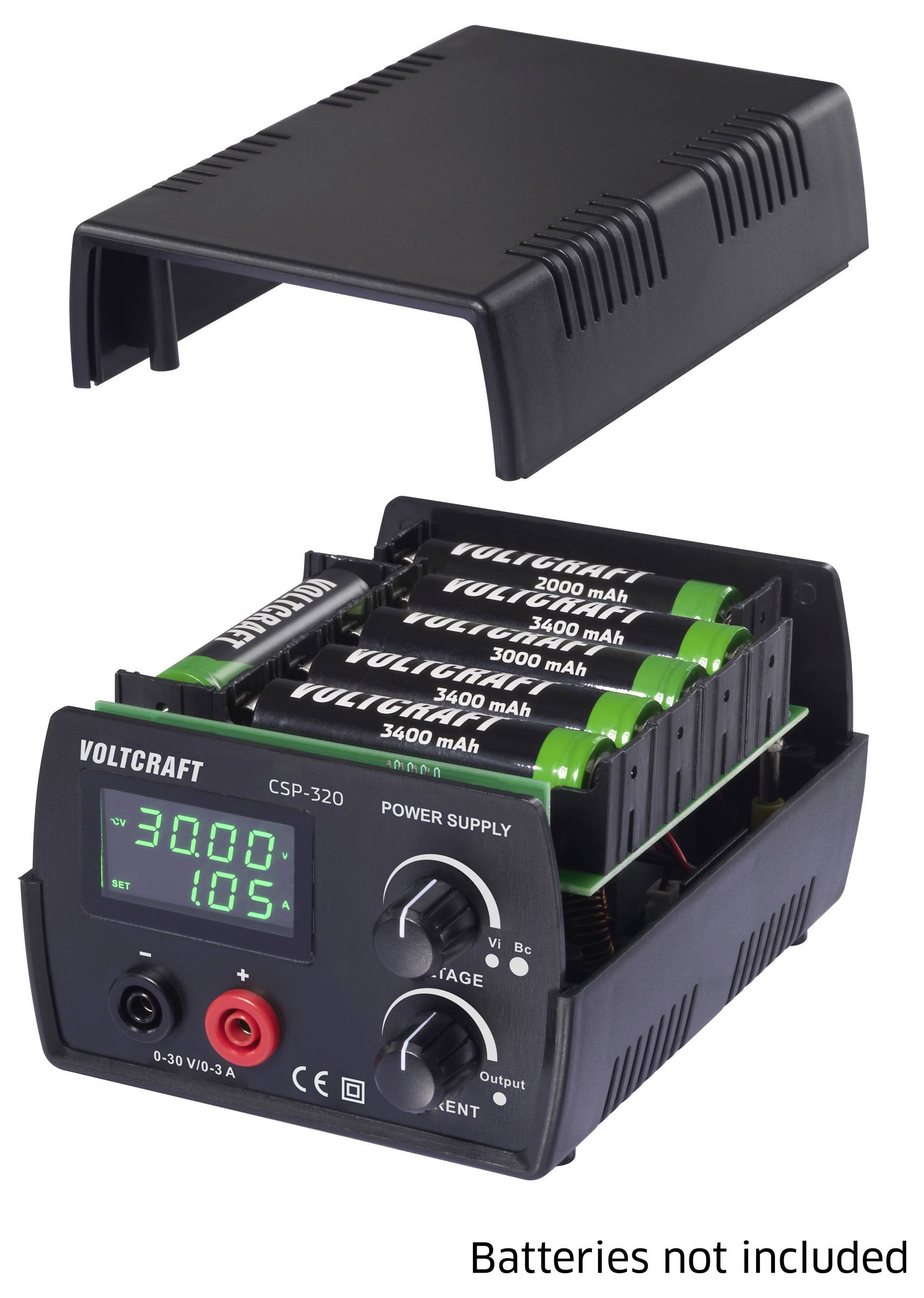

'Voltcraft CSP-320' power supply unit with a digital display showing voltage '3.000' and current '1.05'. Batteries not included.

1/7

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT CSP-320 Power supply

No. of outputs 1 x
0 - 30 / 1 - 3 A
1 A (battery mode), 3 A (adaptor mode)
90 W

Technical specifications

Fuse: T1.5 A / 250 V
Efficiency: >80 %

Type: CSP-320

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 90 W

Technology: SMPSU

Dim: (L x W x H) 140 x 110 x 74 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Connections: 4 mm safety sockets

Type: Switching DC

Output voltage (max.): 30 V DC

Output voltage (min.): 0 V DC

Max. output current: 3 A

Output current (min.): 1 A

Inputs: Vehicle socket

MTBF: 2000 h

Mains control: Fuse

Type: Bench PSU (Adjustable voltage)

Width: 110 mm

Height: 74 mm

Length: 140 mm

Residual ripple: 10 mV

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Power

Output voltage

Output current

VOLTCRAFT CSP-320 Bench PSU (adjustable voltage) 0 - 30 1 - 3 A 90 W AC and battery operation No. of outputs 1 x

Item no:3438554

Fast track dispatch on Wed 14 Oct

20 Piece(s)Conrad Electronic

This article

90 W

0 - 30

1 - 3 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

VOLTCRAFT CSP-120 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 1.5 A (max.) 18 W No. of outputs 1 x

Item no:3438792

Fast track dispatch on Wed 14 Oct

33 Piece(s)Conrad Electronic

18 W

3 - 3, 4.5, 6, 7.5, 9, 12

1.5 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

VOLTCRAFT CSP-140 DC power supply, symmetric 15 (max.) ;1 A (max.);30 W;No. of outputs 1 x

Item no:3438793

Fast track dispatch on Wed 14 Oct

19 Piece(s)Conrad Electronic

30 W

15 (max.)

1 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

VOLTCRAFT CSP-160 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 6 A (max.) 72 W No. of outputs 1 x

Item no:3438796

Fast track dispatch on Wed 14 Oct

30 Piece(s)Conrad Electronic

72 W

6 - 6, 12

6 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

VOLTCRAFT CSP-180 Bench PSU (adjustable voltage) DC voltage 0 - 30 ;1 A (max.);30 W;No. of outputs 1 x

Item no:3438795

Fast track dispatch on Wed 14 Oct

17 Piece(s)Conrad Electronic

30 W

0 - 30

1 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

VOLTCRAFT CSP-200 Bench PSU (adjustable voltage) 2 V, 4 V, 6 V, 8 V, 10 V, 12 V 2 A (max.) 24 W No. of outputs 1 x

Item no:3438790

Fast track dispatch on Wed 14 Oct

16 Piece(s)Conrad Electronic

24 W

2 - 2, 4, 6, 8, 10, 12

2 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

VOLTCRAFT CSP-220 Bench PSU (adjustable voltage) Alternating voltage 0 - 24 ;1 A (max.);24 W;No. of outputs 1 x

Item no:3438791

Fast track dispatch on Wed 14 Oct

35 Piece(s)Conrad Electronic

24 W

0 - 24

1 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

VOLTCRAFT CSP-240 Bench PSU (adjustable voltage) Alternating voltage 1 - 15 ;1.5 A (max.);22.5 W Frequency control No. of outputs 1 x

Item no:3438553

Fast track dispatch on Wed 14 Oct

29 Piece(s)Conrad Electronic

22.5 W

1 - 15

1.5 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

VOLTCRAFT CSP-300 Bench PSU (adjustable voltage) 3 V, 4.5 V, 6 V, 7.5 V, 9 V, 12 V 3 A (max.) 36 W No. of outputs 1 x

Item no:3438555

Fast track dispatch on Wed 14 Oct

24 Piece(s)Conrad Electronic

36 W

3 - 3, 4.5, 6, 7.5, 9, 12

3 A (max.)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

VOLTCRAFT CSP-310 Bench PSU (adjustable voltage) 6 V DC, 12 V DC 2 - 6 A 72 W No. of outputs 1 x

Item no:3438556

Fast track dispatch on Wed 14 Oct

32 Piece(s)Conrad Electronic

72 W

6 - 6, 12

2 - 6 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Documents & Downloads

Datasheet

Datasheet 3438554 VOLTCRAFT CSP-320 Bench PSU (adjustable voltage) 0 - 30 1 - 3 A 90 W AC and battery operation No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3438554 VOLTCRAFT CSP-320 Bench PSU (adjustable voltage) 0 - 30 1 - 3 A 90 W AC and battery operation No. of outputs 1 x

Warranty Terms

Warranty Terms 3438554 VOLTCRAFT CSP-320 Bench PSU (adjustable voltage) 0 - 30 1 - 3 A 90 W AC and battery operation No. of outputs 1 x

Description

Battery- and mains-operation
The VOLTCRAFT CSP-320 is a digital lab power supply specially designed for applications who require% mobile use and 100% disconnection from the mains voltage. The laboratory power supply can be operated with mains voltage as well as with 6 standard 18650 Li-ion battery cells (not included). The batteries are inserted into the battery holders in the inside of the housing and charged. Any old battery cells can be replaced by new cells at a later time without any problem.

Wide voltage range
The power supply allows a variable adjustment of the output voltage in the range of 0 to 30 V. This travel allows the supply of different circuits and components and makes the device a flexible tool for changing requirements.

High power reserves
With a maximum power of 90 W and a current of 3 A (1 A in battery mode) the CSP-320 offers sufficient energy also for demanding tasks. These performance values ensure stable operation and cover a wide range of typical laboratory applications.

Focused operation
Equipped with an output (1 x), the device offers a clear and concise interface. This facilitates the connection and monitoring of connected consumers without unnecessary complexity.

This text is machine translated.
