Name: Wachendorff DPL002-104R002P 26.42 cm (10.4") Display, resistiver Touch Industrial display
Brand: Wachendorff
SKU: 3331389
Availability: BackOrder

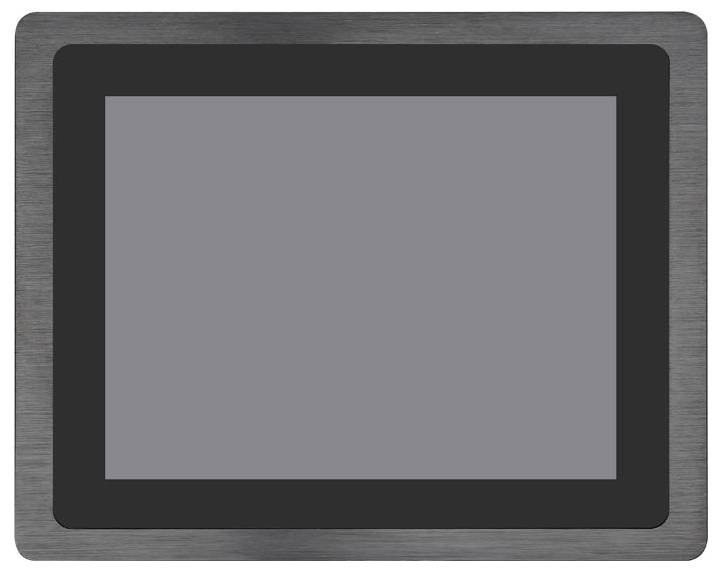

A tablet with a black frame and screen, switched off and shown from the front.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 595.00 / piece)

€ 595.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

26.42 cm (10.4") display, resistive touch

Brilliant display with wide viewing angle
HDMI-, DVI- and VGA-interface
Frame-friendly design
Protection class IP65 front side

Technical specifications

Power max. 48 W
Display 10.4" TFT LCD
Resolution: 1024 x 768 pixels
Page ratio 4:3
Brightness: 400 cd/m²
Colors: 16.7 million
Glass hardness 3H
Housing: Robust aluminum
Weight: 2 kg

Product type: Industrial display

Interfaces: USB RJ45 - USB for touch
1x HDMI
1x DVI
1x VGA
Audio output: 3.5 mm jack

Type: 26.42 cm (10.4") Display, resistiver Touch

Min. operating voltage: 12 V DC

Operating voltage: 12 - 36 V DC

Max. operating voltage: 36 V DC

Manufacturer part #: DPL002-104R002P

Height: 231 mm

Length: 56.50 mm

Width: 288 mm

: IP65 (on front)

Dim: (L x W x H) 56.50 x 288 x 231 mm

Content: 1 pc(s)

Display: Yes

Fitting type (details): VESA 100 x 100 or 75 x 75

Max. ambient temperature: +65 °C

Min. ambient temperature: -10 °C

Certification: CE, FCC class a, CCC

Documents & Downloads

Datasheet

Datasheet 3331389 Wachendorff DPL002-104R002P 26.42 cm (10.4") Display, resistiver Touch Industrial display

User & Safety Instructions

User & Safety Instructions 3331389 Wachendorff DPL002-104R002P 26.42 cm (10.4") Display, resistiver Touch Industrial display

Description

The industrial displays of the series 1 are available in sizes from 10.1" to 23.8" and can be fitted optionally with projected capacitive, resistive or without touch-screen. The only 3 mm thick front frame is particularly impressive, which allows for almost flush mounting in the control panel cut-out. The housings are made in IP65 at the front and have a very compact and robust design thanks to the specially designed aluminum housing. The display can be used almost anywhere due to its low installation depth.
