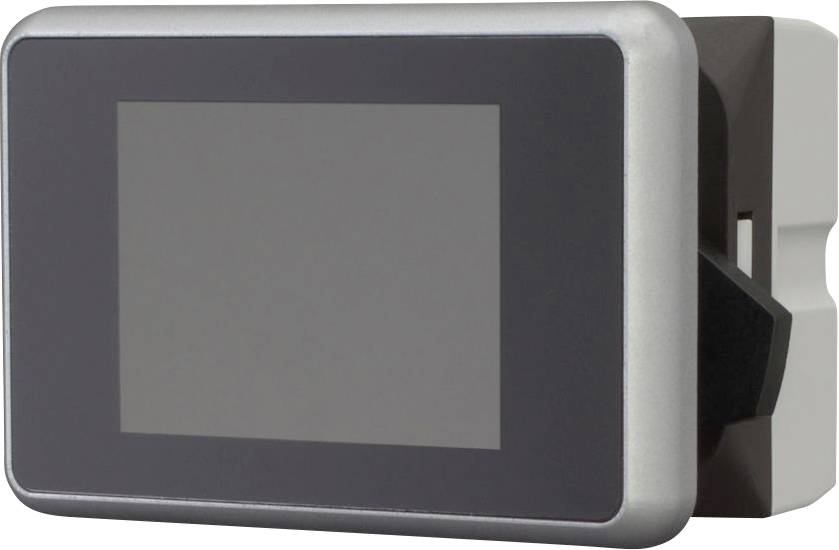

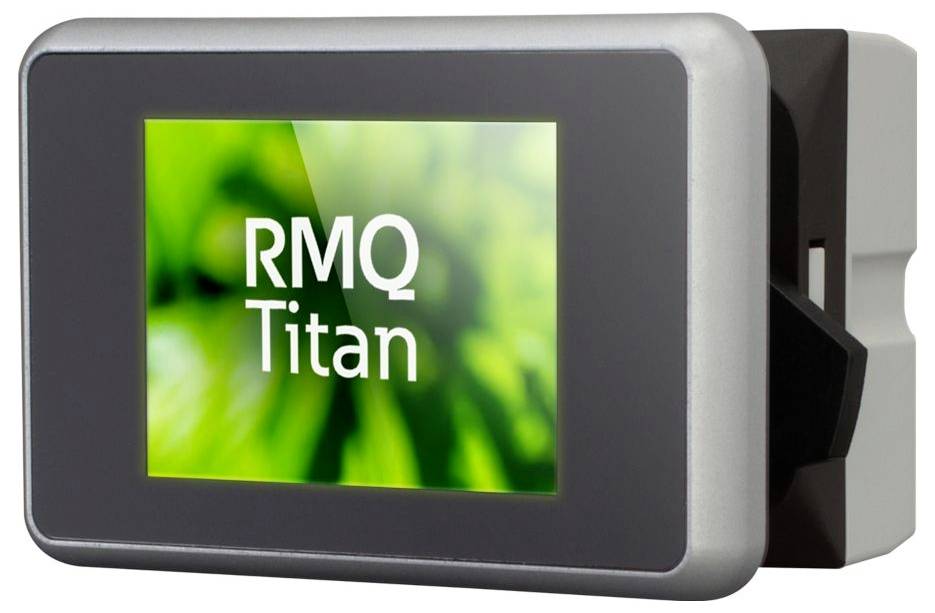

Eaton M22-AI-8I EP-401626 RMQ -Titan Advanced Indicator Display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14 days return policy included
Technical specifications
- Mounting hole 22.5 mm
- Product type
Display
- No. of inputs (max.)
8
- Type
RMQ -Titan Advanced Indicator
- Manufacturer part #
M22-AI-8I EP-401626
- Operating voltage
12/24 V
- Height
50 mm
- Length
45 mm
- Width
80 mm
IP20 (back panel)
IP66 (front)
IP69
- Dim
(L x W x H) 45 x 80 x 50 mm
- Content
1 pc(s)
- Display
Yes
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3743276 Eaton M22-AI-8I EP-401626 RMQ -Titan Advanced Indicator Display
User & Safety Instructions
User & Safety Instructions 3743276 Eaton M22-AI-8I EP-401626 RMQ -Titan Advanced Indicator Display
Information
Information 3743276 Eaton M22-AI-8I EP-401626 RMQ -Titan Advanced Indicator Display
Description
Suitable for numerous applications. The RMQ-Titan Advanced Indicator provides distributed status messages for complex machines in production – for faster maintenance, faster troubleshooting times and better machine utilization. It is also ideal for simple machines without PLC. The Advanced Indicator Ideal is also suitable for special vehicles in the field – for example for asphalt repair or canal renovation – as it provides important operating data outside the driver's cab. It also supports additional devices such as cooling, mixing or packaging units by displaying essential information such as temperature, pressure, and error messages
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2" display

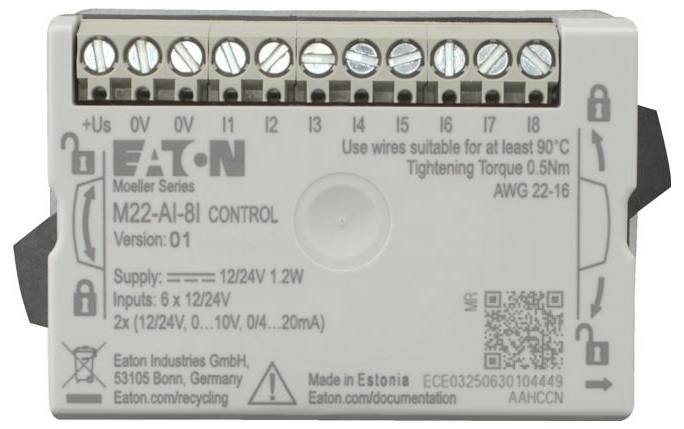

- Control module
Hints
Installed in the M22-I1-A1 or in an individually placed 22.5 mm hole
System requirements
- Windows PC and USB-C cable
