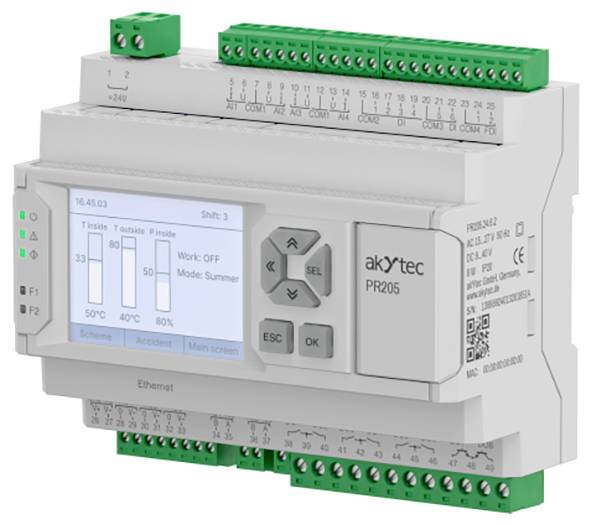

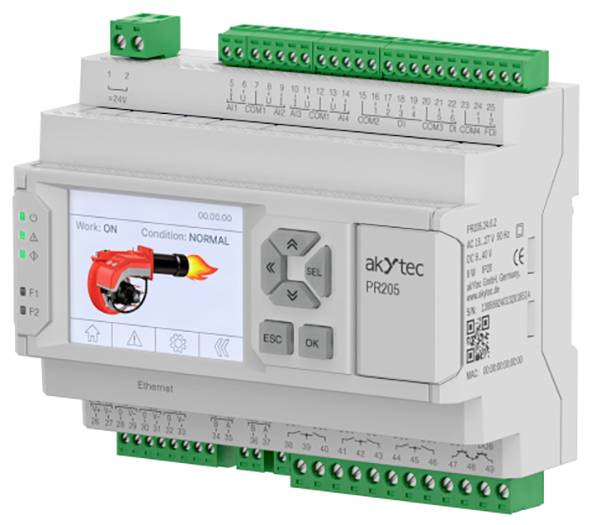

akYtec PR205.24.1.2 156316 PLC control relay 24 V DC
Part number:
Item no:
Number
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
Only 2 Piece(s) available
Highlights & Details
PR205.24.1.2, programmable relay
- HMI: Graphic screen and buttons
- Graphic color screen, 2.4" diagonal, 320×240
- 6 mechanical buttons, user-adjustable
- 5 LEDs: 3 service LEDs, 2 user LEDs
- Optimal combination of inputs and outputs
- 4 analog inputs: PT1000, NTC/PTC, 4...20 mA/ 0...10 V, discrete mode
- 3 universal analogue outputs: 4...20 mA/0...10 V
- 6 digital inputs (power supply 24 V)
- 2 fast digital inputs up to 100 kHz
- 8 digital outputs (E/M relays and transistor switches)
- Communication functions
- Ethernet interface, Master/slave mode, Modbus TCP:
- Direct access to the akYtec cloud service
- Connection to a PC for program configuration and recording
- Configuration in akYtec ToolPro
- Process visualization with control panels and SCADA
- Expansion of I/O with akYtec MX210 modules
- Up to 2 RS-485 ports, Master/slave mode, Modbus RTU/ASCII:
- Integration with SCADA systems
- Process visualization with control panels
- Expansion of the inputs and outputs with akYtec MX110 modules
- Control of external devices: Frequency converter, sensors, etc.
- Connection to PC for configuration and program recording
- Compact modular housing with a width of 7 modules
- Removable terminal blocks for easy installation
- Quick battery change
- Operation
- 2 Power supply modifications: ~/=24 V.
- Expansion of the input/output channels using PRM modules
- Operation in unheated rooms: -20...+55 ºС
- Configuration and program storage via USB, Ethernet
Technical specifications
- Min Operating voltage 20 V DC
- Max. Operating voltage 36 V DC
- Operating voltage: 24 V DC
- Display: Yes
- Product type: PLC controller
- Number of relay outputs (max.): 8
- Height: 58 mm
- Length 123 mm.
- Width 108 mm
- IP protection class IP20
- Manufacturer part number: 156316
- Dimensions 123 x 108 x 58 mm (L x W x H)
- Real-time clock: Yes
- Interfaces: 1 x Ethernet, 2 x RS485
- Number of digital inputs (max.): 6
- Number of fast digital inputs (max.): 2
- Number of analogue inputs (max.) (4...20 mA, 0...10 V, Pt1000, NTC, PTC, 0...300 kOhm, etc.): 4
- Supported protocols: Modbus TCP/RTU / ASCII (Master / slave)
- Clock: Real-time clock
- Program memory: ROM 224 kB / Retain 60 kB
- Model type: PR205.24.1.2
- Number of expansion modules: 2
- Connection type (details): DIN rail (switchboard/distribution box)
- Max. Surrounding temperature +55 °C
- Min Surrounding temperature -20 °C
- Number of analogue outputs (max.) (4...20 mA/0...10 V): 3
- No. of analogue inputs
4
- No. of analogue outputs
3
- No. of digital inputs (max.)
6
- No. of relay outputs (max.)
8
- Supported protocols
ModBUS TCP / RTU / ASCII (Master / slave)
- Min. operating voltage
20 V DC
- Operating voltage
20 - 36 V DC
- Max. operating voltage
36 V DC
- Operating voltage
24 V DC
IP20
- Type
PR205.24.1.2
- Manufacturer part #
156316
- Product type
PLC control relay
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553334 akYtec PR205.24.1.2 156316 PLC control relay 24 V DC
User & Safety Instructions 3553334 akYtec PR205.24.1.2 156316 PLC control relay 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR205 - device
- Quick guide
- Terminal clamps (set)
