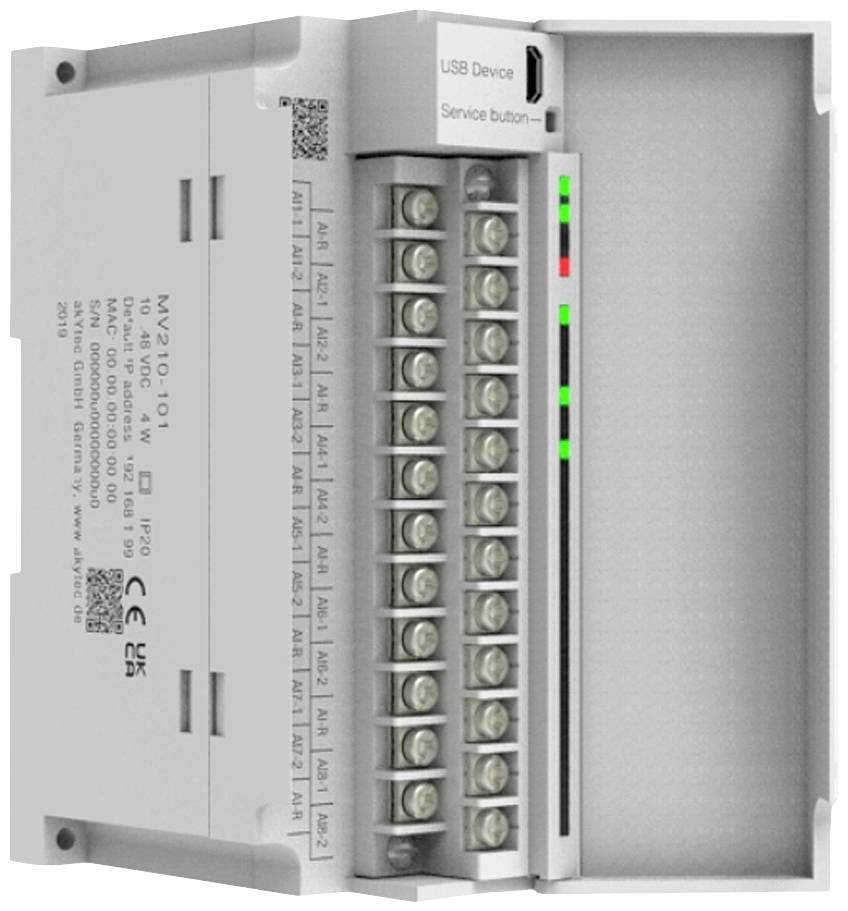

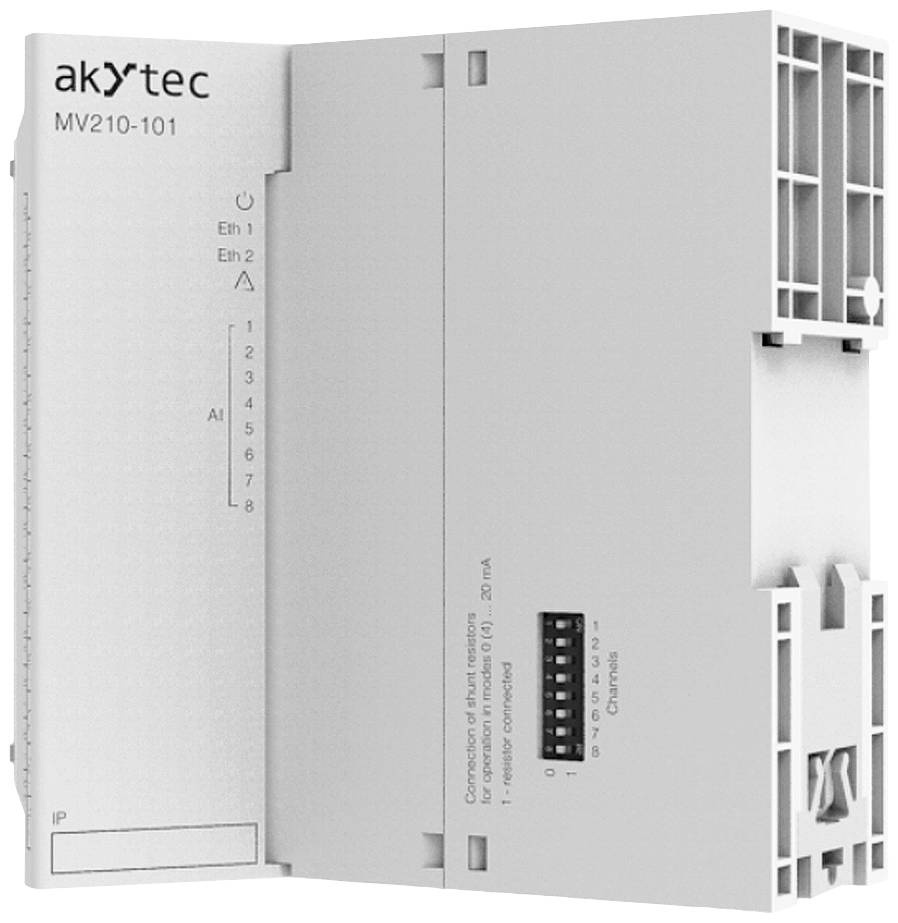

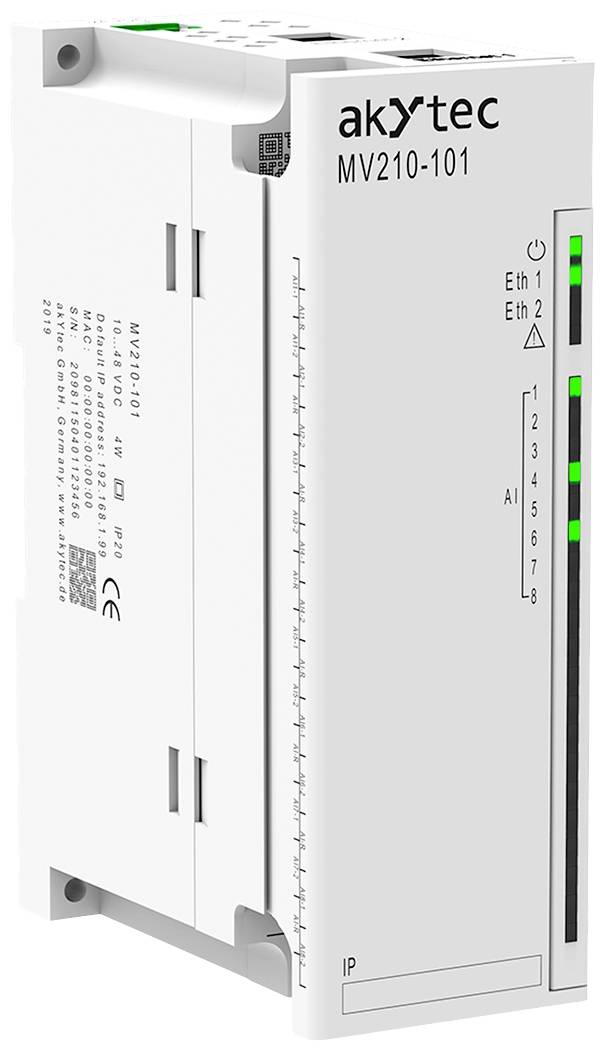

akYtec MV210-101 85254 PLC analogue input module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 2 Piece(s) available
Highlights & Details
MV210-101, analogue input module
- 2 bypass-enabled Ethernet connections
- Support for daisy chain wiring
- Support for Modbus TCP, MQTT, SNMP, SNTP
- Simultaneous communication with up to 4 TCP clients
- LEDs for diagnosing the network status
- Support for data recording
- In-built real-time clock
- Free configurator
- Synchronous updating of the configuration of two or more selected modules
Technical specifications
- Power supply: 24 (10…48) VDC
- Power consumption, max. 4 W at 24 V DC
- Data transfer double Ethernet 10/100 Mbps
- Protocol: Modbus TCP, MQTT, SNMP and NTP
- USB 2.0 (micro USB) configuration interfaces
- Ethernet 10/100 Mbps
- File size, max. 2 kB
- Number of files, max.: 1000
- Ambient temperature -40…+55 °C
- Storage temperature: -40…+55 °C
- Humidity: Up to 95%, at +35°C non-condensing
- Protection class: IP20
- Dimensions 42 x 124 x 83 mm
- Weight approx. 260 g
- Housing material: Plastic
- Number of analog inputs: 8
- Built-in shunt resistor 51 Ohm
- ADC resolution 16 bit
- No. of analogue inputs
8
- Min. operating voltage
10 V DC
- Operating voltage
10 - 48 V DC
- Max. operating voltage
48 V DC
- Operating voltage
24 V DC
- Height
42 mm
- Length
124 mm
- Width
83 mm
IP20
- Type
MV210-101
- Manufacturer part #
85254
- Dim
(L x W x H) 124 x 83 x 42 mm
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
- Product type
PLC analogue input module
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219677 akYtec MV210-101 85254 PLC analogue input module 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- MV210-312
- Quick guide
- Ethernet connection cable
- 2-pin plug terminal block
- Rubber stopper
