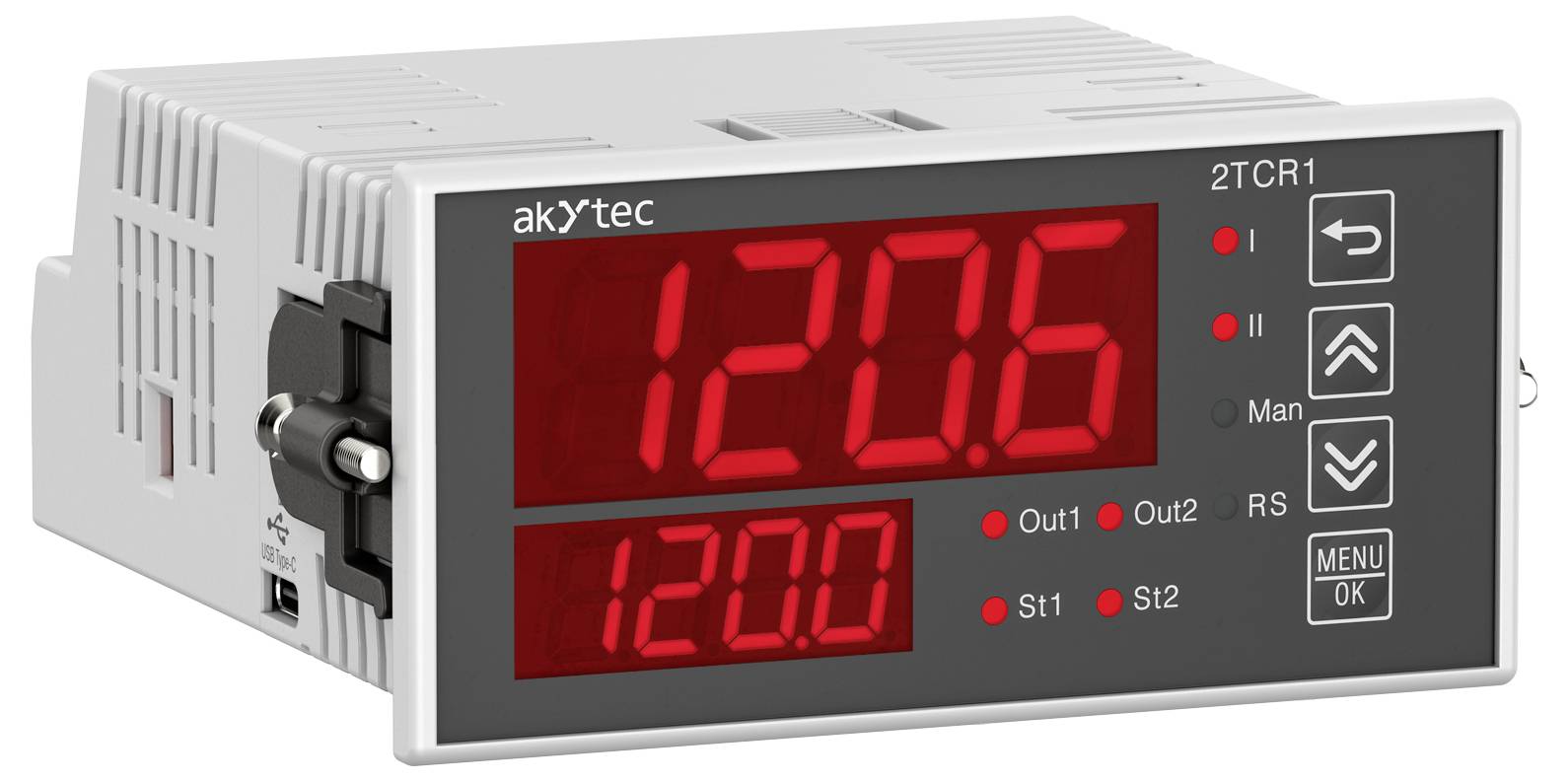

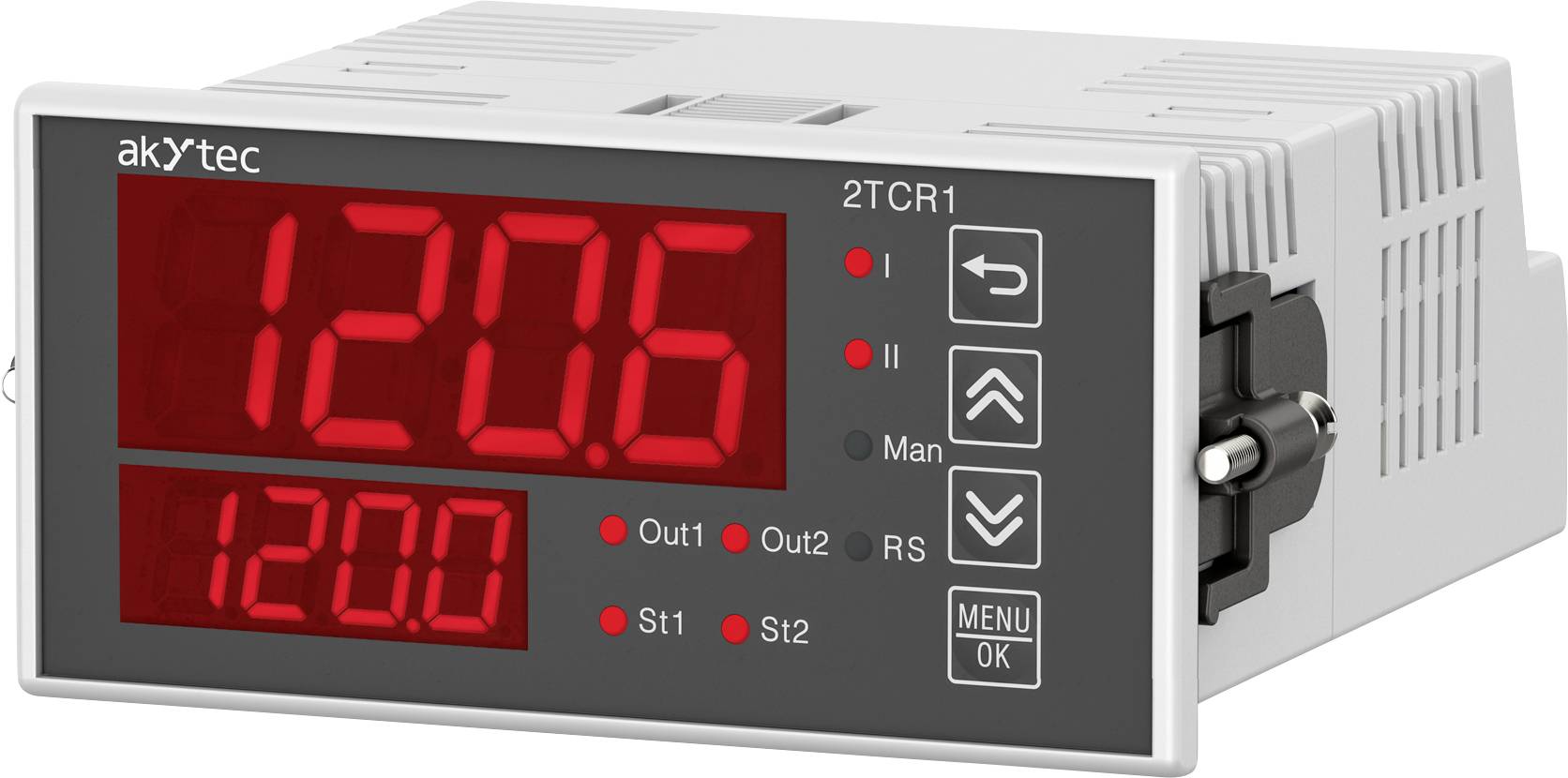

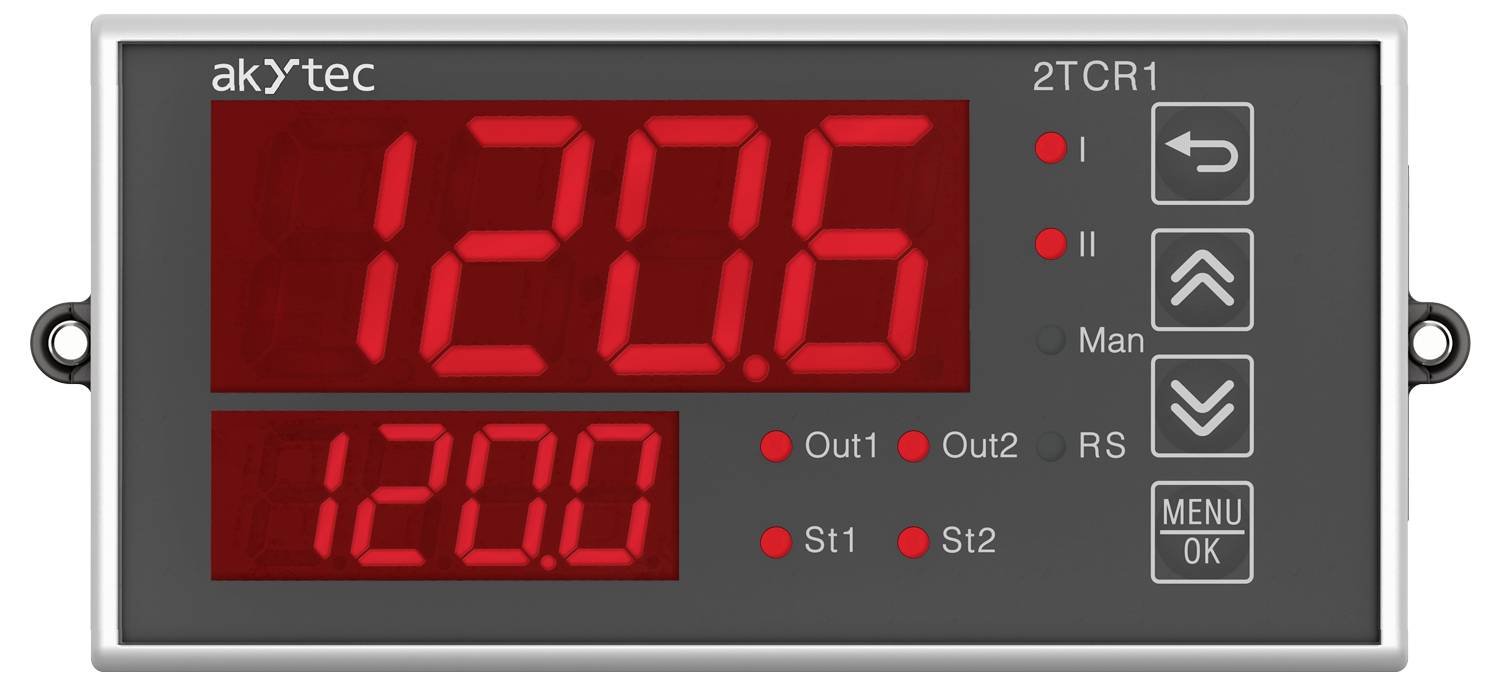

akYtec 2TCR1-P2.RR 151437 PLC control knob unit 24 V DC, 230 V AC
Part number:
Item no:
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Only 4 Piece(s) available
Highlights & Details
2TCR1-P2.RR, 2-channel, two-point controller
- Measurement and regulation of physical quantities via two channels:
- According to a two-point rule law
- A measure according to a three-point rule law
- Analogue P regulation
- Weather-dependent regulation
- Monitored for communication loss with actuators.
- Alarm when predefined measured values are exceeded
- Programming via Micro-USB
- Manual control mode for actuators
- Free configuration software
Technical specifications
- Min OPERATING VOLTAGE 90 V/AC, 21 V/DC
- Max. OPERATING VOLTAGE 264 V/AC, 120 V/DC
- Nominal operating voltage 24 V/DC;230 V/AC
- Power supply: 230 (90...264) V~ at 50 (47...63) Hz; 24 (21...120) V⎓
- Power consumption, max. 11 VA;
- 9 W
- Number of analog inputs: 2
- Input signal: Current 0...5 mA, 0(4)...20 mA
- Voltage: 0(2)...10 V
- RTD 50/100/1000 Ω Cu, Pt, Ni, M, P
- THERMO-ELEMENTS B, J, K, N, R
- Number of digital outputs: 2
- Configuration interface USB 2.0 (Micro USB), RS-485
- Protocol: Modbus RTU, Modbus ASCII
- Ambient temperature -40...+55 °C
- Storage temperature: -40...+55 °C
- Relative humidity: Up to 95%, non-condensing
- Protection class IP54 / IP20
- Dimensions 96 x 48 x 100 mm
- Weight approx. 400 g
- Product type: Temperature controller
- Input resistance for voltage measurement: 300 кΩ
- Max. Sampling time 1 s
- R output type (electromagnetic relay contacts)
- RS-485 interface
- No. of analogue inputs
2
- Supported protocols
Modbus RTU, Modbus ASCII
- Min. operating voltage
90 V AC
21 V DC
- Operating voltage
90, 21 - 264, 120 V AC, V DC
- Max. operating voltage
264 V AC
120 V DC
- Operating voltage
24 V DC
230 V AC
IP54
IP20
- Type
2TCR1-P2.RR
- Manufacturer part #
151437
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
- Product type
PLC control knob unit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553204 akYtec 2TCR1-P2.RR 151437 PLC control knob unit 24 V DC, 230 V AC
User & Safety Instructions 3553204 akYtec 2TCR1-P2.RR 151437 PLC control knob unit 24 V DC, 230 V AC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- 2TCR1-P2 RR. RS
- User manual
