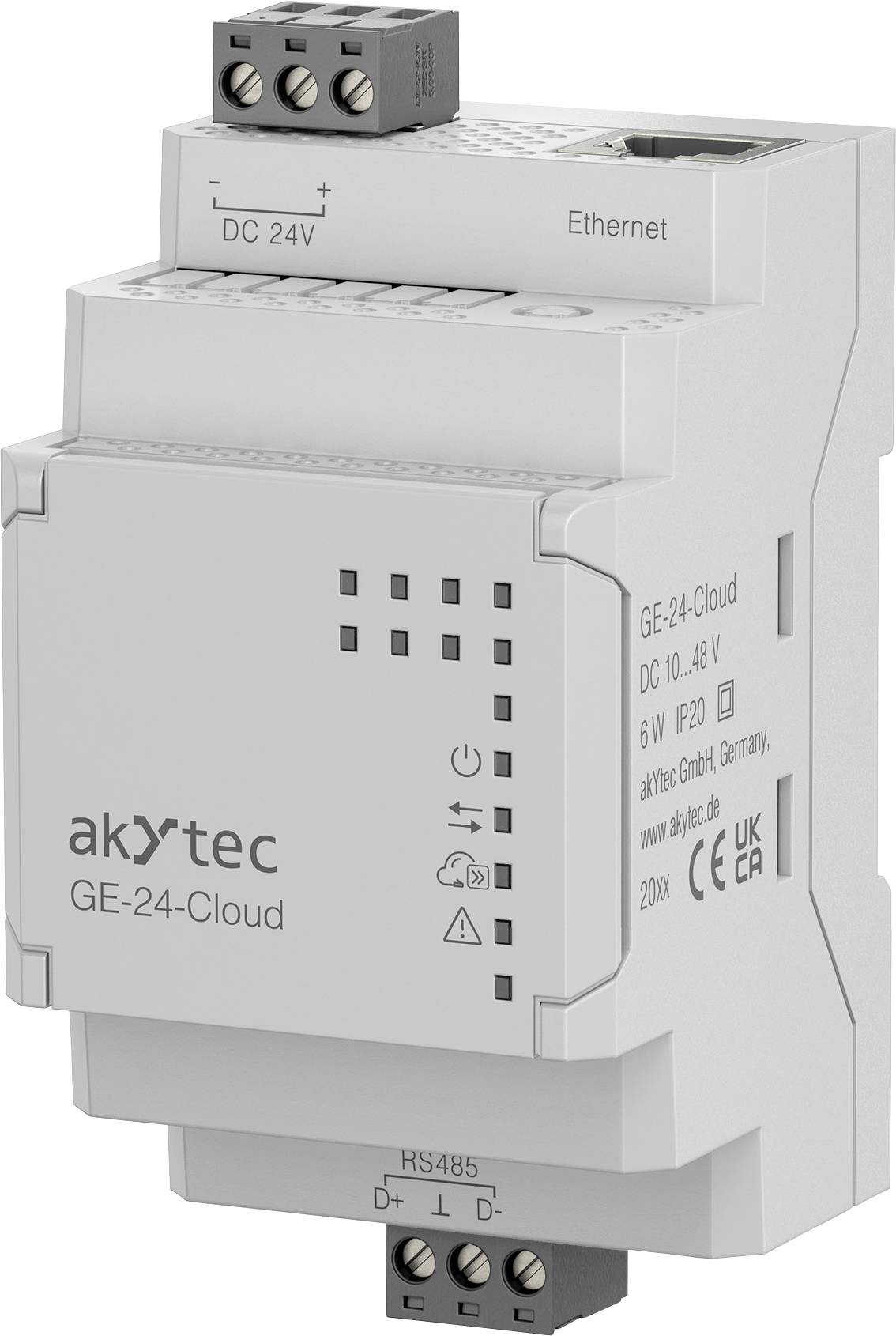

akYtec GE-24-Cloud 148566 Safety gateway 24 V DC
Part number:
Item no:
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Min Operating voltage 10 VDC
- Max. operating voltage = 48 V/DC
- Nominal operating voltage 24 V/DC
- Power supply: 24 (10...48) VDC
- Power consumption: max. 6 W
- USB 2.0 (micro USB) configuration interface
- Ethernet 10/100 Mbps
- Ambient temperature -40...+55 °C
- Storage temperature: -40...+55 °C
- Relative humidity: Up to 95%, non-condensing
- Protection class: IP20
- Dimensions 55 × 96 × 58 mm
- Weight 0.15 kg
- Galvanic isolation 1770 V
- Network interface: RS485
- Network protocols: Modbus RTU, Modbus ASCII, akYtec
- Cloud interface: Ethernet
- Cloud protocols: TCP, DNS, DHCP
- Mounting: Rails (DIN rails)
- Housing material: Plastic
- Supported protocols
Modbus RTU, Modbus ASCII, akYtec
TCP, DNS, DHCP
- Min. operating voltage
10 V DC
- Operating voltage
10 - 48 V DC
- Max. operating voltage
48 V DC
- Operating voltage
24 V DC
IP20
- Type
GE-24-Cloud
- Manufacturer part #
148566
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
- Product type
Safety gateway
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553199 akYtec GE-24-Cloud 148566 Safety gateway 24 V DC
User & Safety Instructions 3553199 akYtec GE-24-Cloud 148566 Safety gateway 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- GE-24 cloud
- User manual
