akYtec PR102.24.2.2 102600 Relay 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
Only 5 Piece(s) available
Highlights & Details

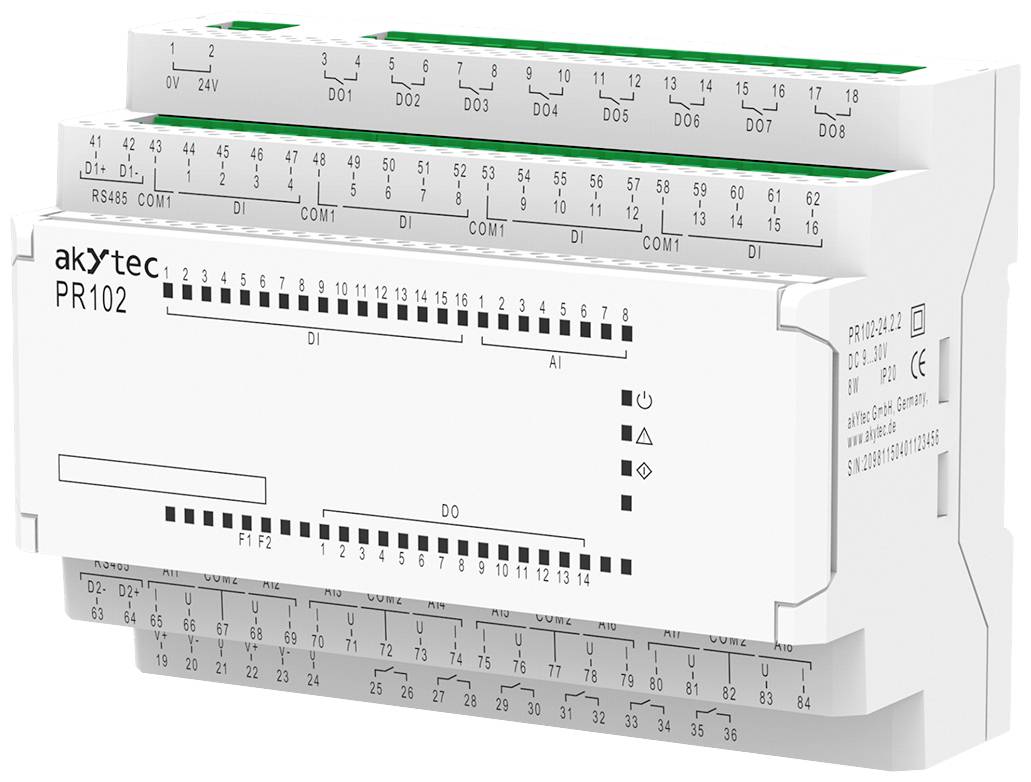

PR102.24.2.2, programmable relays
- A total of 40 inputs and outputs
- 8 analog inputs, compatibility with: RTD temperature sensor (Pt500/1000, Ni500/1000 etc.), NTC/PTC temperature sensor and standard signals: 4-20 mA / 0-10 V / digital
- 2 configurable analog outputs, 4-20 mA or 0-10 V
- 2 RS485 interfaces
- Connection of PRM expansion modules: Up to 32 additional inputs and outputs without loss of power through internal device bus
- Extended operating temperature range: -40...+55 ºС
- USB power supply in programming mode
- Software-based functions include non-volatile variables, daytime timer, weekly timer, PID control, etc.
- Due to the shape of a circuit breaker, the programmable relay PR102 can be mounted comfortably in any consumer unit or control cabinet
- Removable screw terminal block
- Easy battery replacement
Technical specifications
- Power supply: 24 (9...30) VDC
- Power consumption: max. 8 W
- Digital inputs: HIGH level 8.5…30 V / 2…5 mA; low level 3…+5 V / 0…15 mA
- Number of digital inputs: 16
- Digital inputs type: Switch contact
- Digital outputs type: Relay output, NO
- Number of digital outputs: 14
- Ambient temperature -40...+55 °C
- Humidity: Up to 80%, up to +25°C non-condensing
- Protection class: IP20
- Dimensions 123 × 108 × 58 mm
- Weight approx. 350 g
- Housing material: Plastic
- Analog inputs 4-20 mA, 0-10 V, 0-300 kOhm
- Pt1000, PTC, NTC
- Interface USB; 2x RS485
- Number of analog inputs: 8
- Input signal: Analogue / digital
- Load capacity of digital outputs 5 a, 250 V AC; 3 a, 30 V DC
- Number of analog outputs: 2
- Output signal 4-20 mA, 0-10 V
- External power supply: 15...30 V.
- Protocols: Modbus RTU / ASCII (Master / Slave)
- Baud rate:9.6...115.2 kBit/s
- Software ALP
- Mounting: Top-hat rail (35 mm)
- No. of analogue inputs
8
- No. of analogue outputs
2
- No. of digital inputs (max.)
16
- Min. operating voltage
9 V DC
- Operating voltage
9 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
- Height
123 mm
- Length
108 mm
- Width
58 mm
IP20
- Type
PR102.24.2.2
- Manufacturer part #
102600
- Dim
(L x W x H) 108 x 58 x 123 mm
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
- Product type
Relay
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219681 akYtec PR102.24.2.2 102600 Relay 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR102-24.2.2
- Terminal strips (set)
- Quick guide
