akYtec MSD200 57845 PLC diagnostics unit 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Only 1 Piece(s) available
Highlights & Details

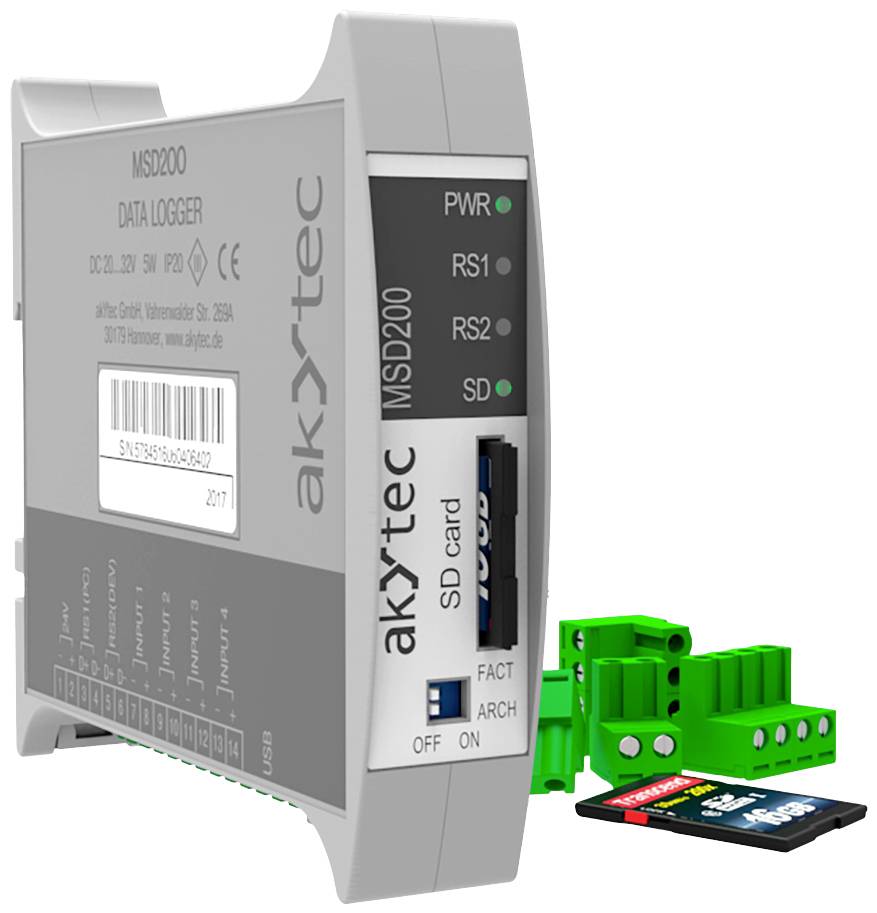

MSD200 data logger
- Data can be archived for up to 64 measurement points
- SD-cards up to 32 GB
- Automatic compilation of the archives over several days possible
- Express analysis of the data (identification of the extreme values)
- The behavior when the archive memory is full can be adjusted
- Configuration of the data archives and reading of archived data directly over the USB interface
Technical specifications
- Power supply: 24 (20…33) VDC
- Power consumption: max. 5 W
- Number of digital inputs: 4
- USB interface type USB 2.0
- Ambient temperature -10…+55 °C
- Storage temperature: -15…+55 °C
- Humidity: Up to 80%, at +25°C non-condensing
- Protection class: IP20
- Weight approx. 150 g
- Housing material: Plastic
- Input signal 0-5 mA, 0-20 mA, 4-20 mA
- Galvanic isolation: None
- Basic error: ±1.0%
- Sampling time 100 ms
- Recording channels 64
- Data record size (per channel), max.: 20 bytes
- Memory card type SD, SDHC, microSD
- Memory card size, max. 32 GB
- RS1 (PC): Slave; Modbus RTU
- RS2 (DEV): Master, Slave Ext, Spy*; Modbus RTU/ASCII, akYtec
- Dimensions (with terminal strips) 23 x 109 x 120 mm
- No. of digital inputs (max.)
4
- Min. operating voltage
20 V DC
- Operating voltage
20 - 33 V DC
- Max. operating voltage
33 V DC
- Operating voltage
24 V DC
IP20
- Type
MSD200
- Manufacturer part #
57845
- Max. ambient temperature
-10 °C
- Min. ambient temperature
+55 °C
- Product type
PLC diagnostics unit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219667 akYtec MSD200 57845 PLC diagnostics unit 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- MSD200
- Quick guide
- Terminal strips (set)
- SD memory card
