akYtec ITP17 149534 Display module 24 V DC
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Highlights & Details

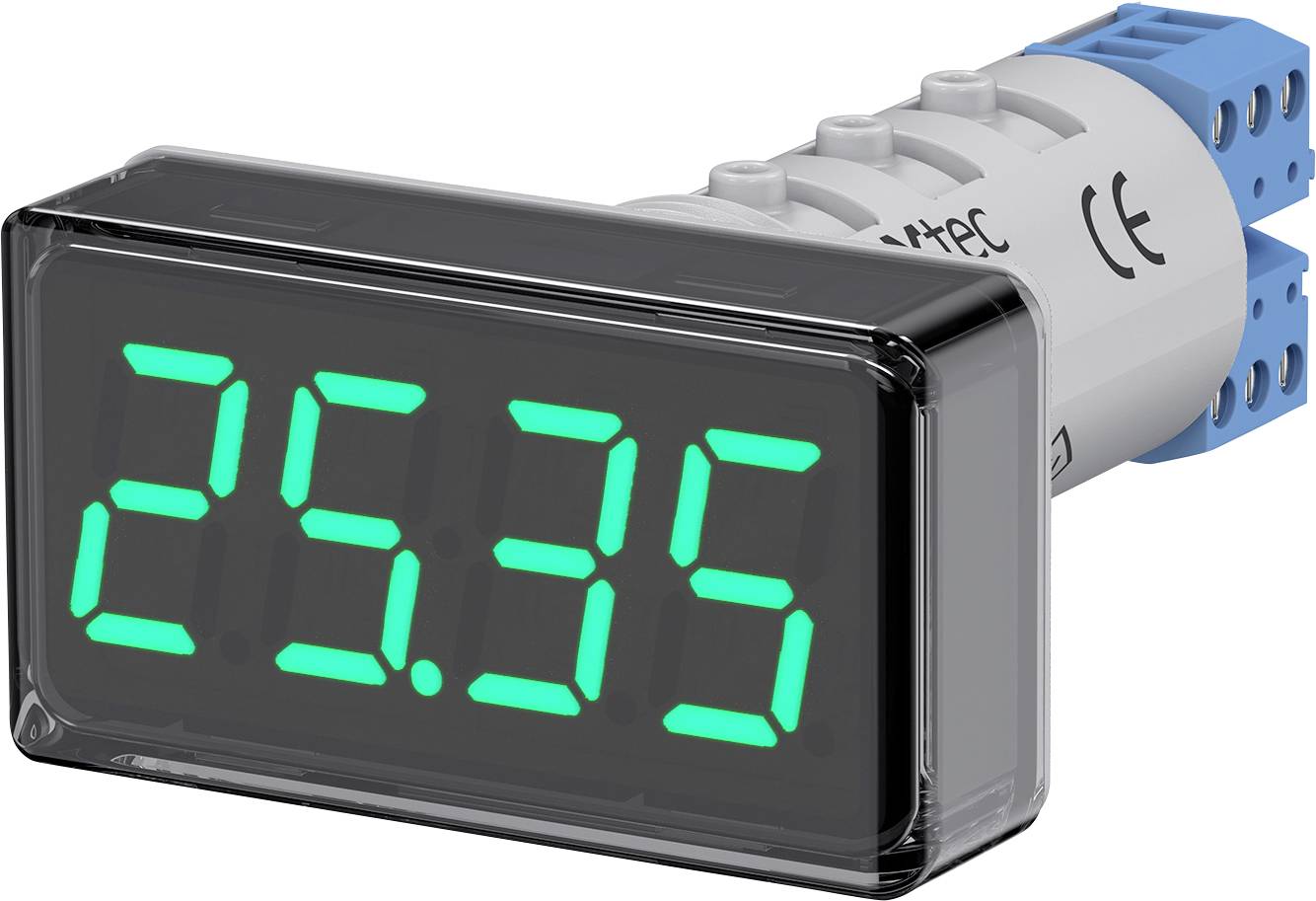

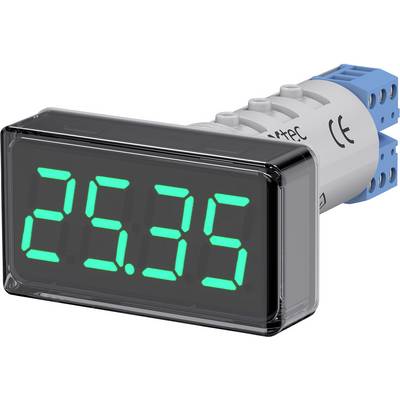

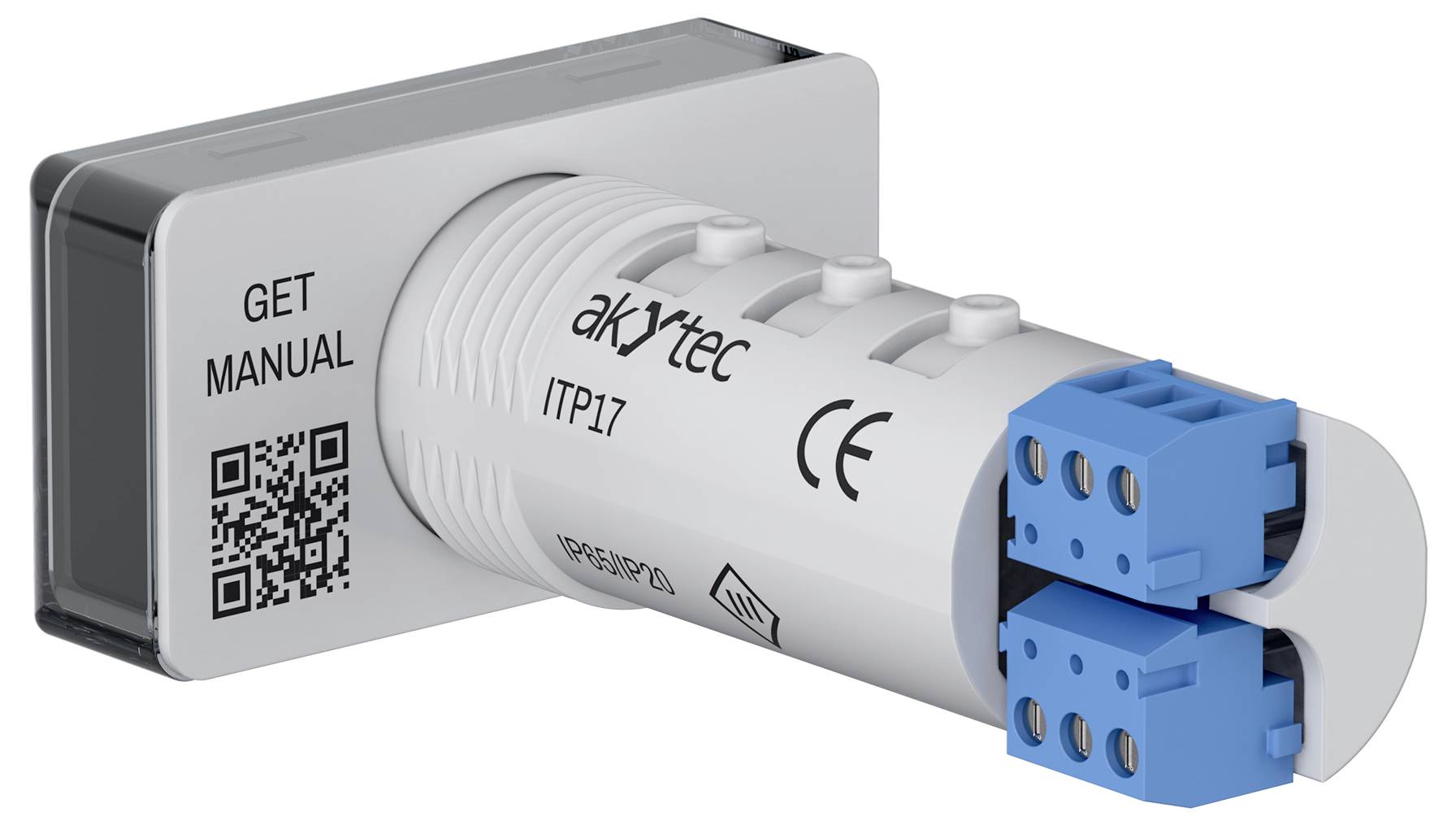

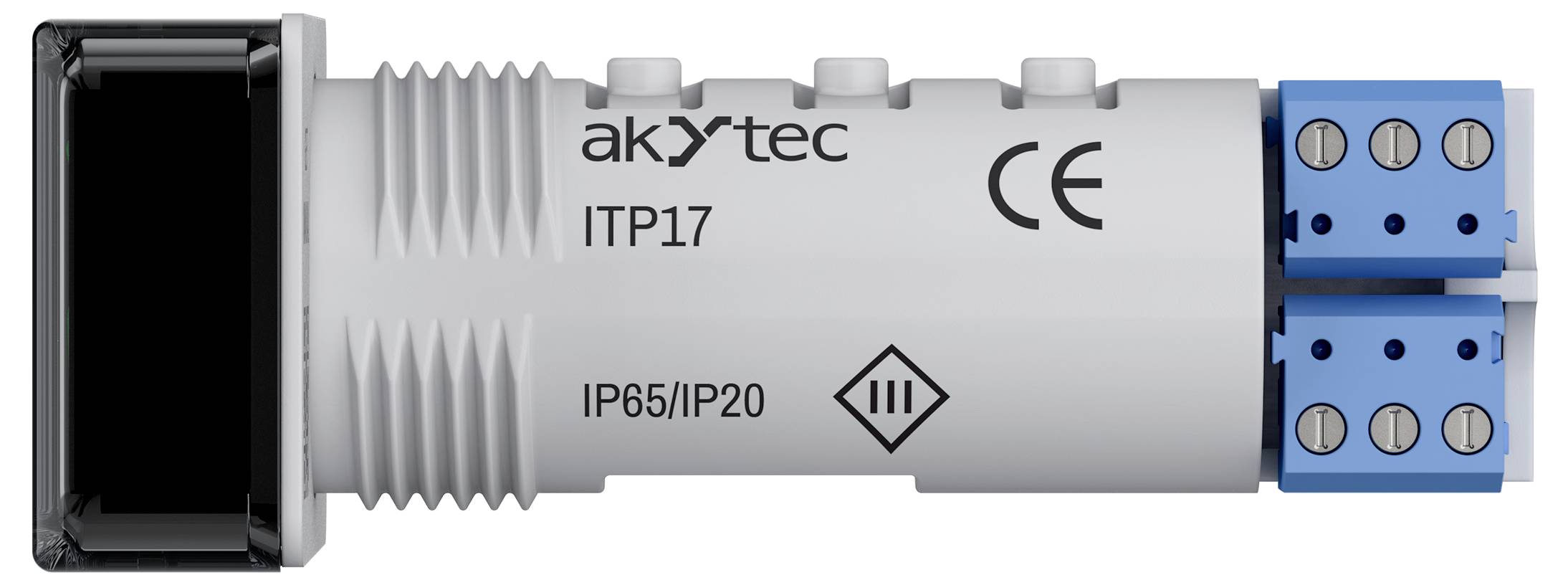

ITP17, universal display with 3 colors

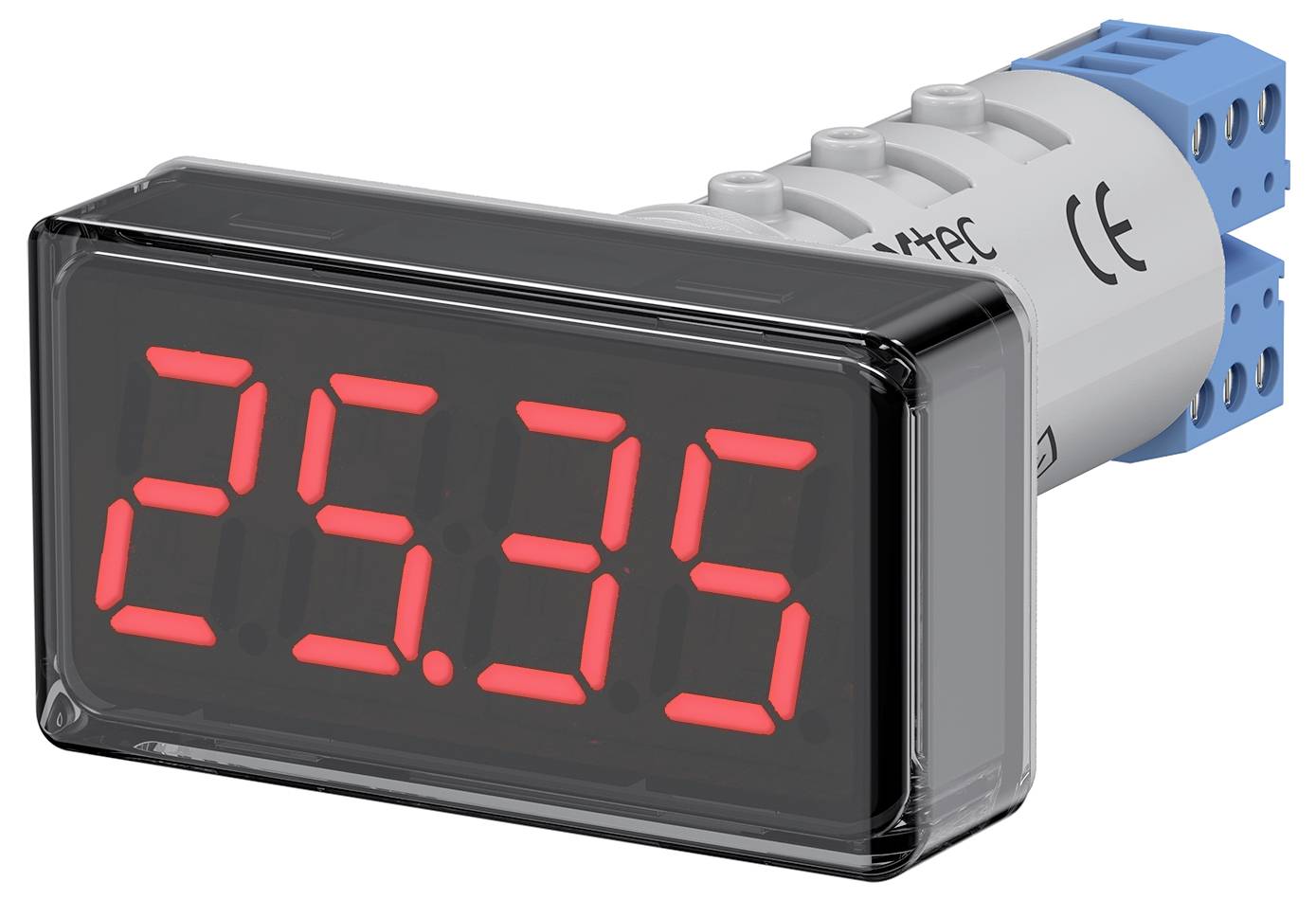

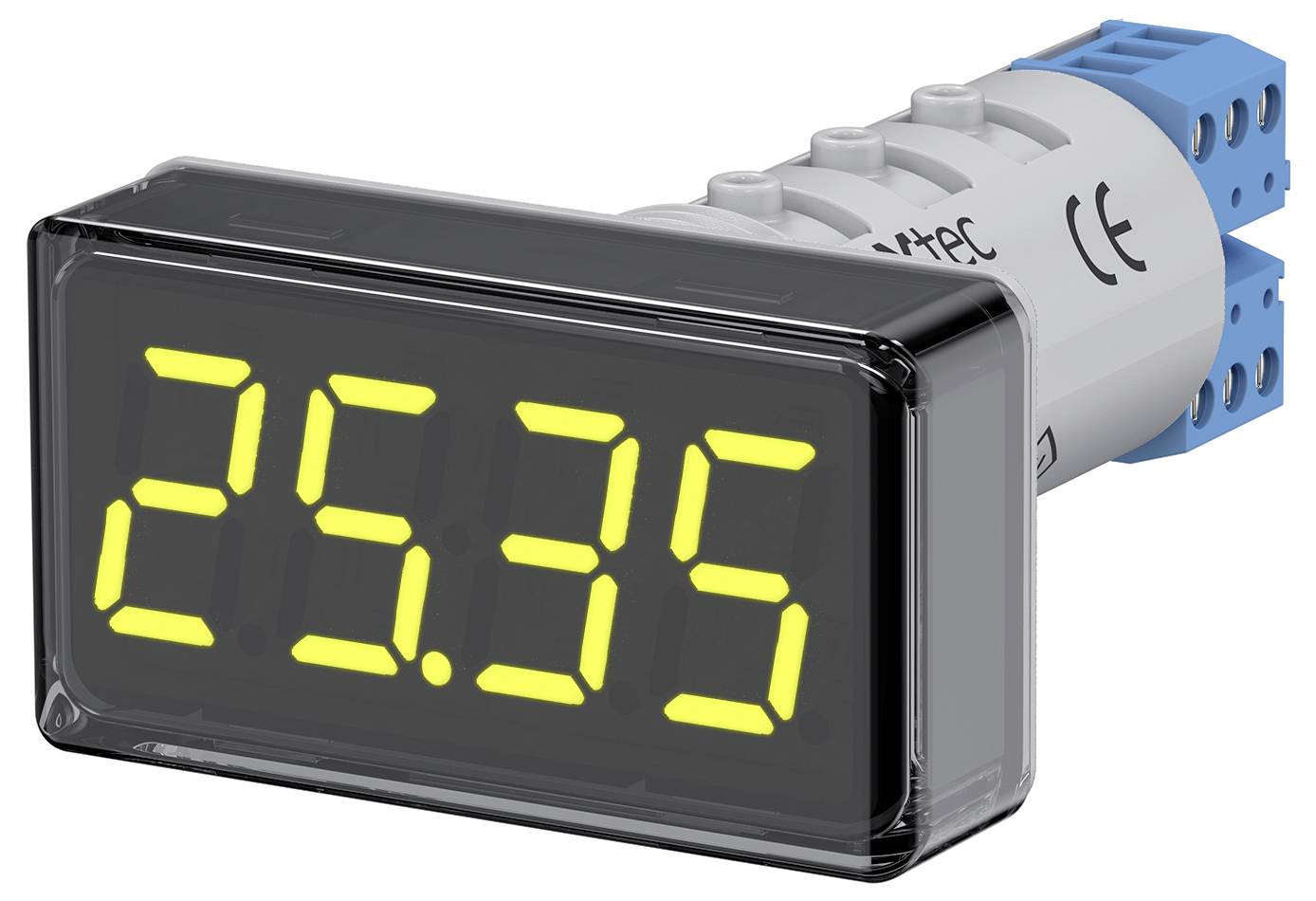

- Three-color seven-segment display (green, red, yellow)
- Configurable analogue input (0-5 mA, 0(4)-20 mA, 0(2)-10 V), RTDs and thermocouples
- Programming via MicroUSB
- ON/OFF control: Contains an NPN output for ON/OFF control
- Operating modes: Continuous display of the measured parameter, three-color display according to thresholds
- Standardized design and fits in a standard 22.5 mm bore for indicator lamps
- Digital filter
- Display area -999 ... 9999
- Adjustable decimal point position
Technical specifications
- Min Operating voltage 10 VDC
- Max. operating voltage = 30 V/DC
- Nominal operating voltage 24 V/DC
- POWER SUPPLY: 10...30 V DC (24 V)
- Power consumption: max. 1 W
- Number of analog inputs: 1
- Input signal: Current: 0…5 mA, 0(4)…20 mA
- Voltage: 0(2)...10 V
- RTD 50/100/1000 Ω Cu, Pt, Ni, M, P
- THERMO-ELEMENTS B, J, K, N, R
- Display: One 4 digit and 7
- Segment display
- Maximum full scale accuracy: RTD, voltage/current signals: ±0.25%, thermocouples, pyrometer: ±0.5%
- Number of digital outputs: 1
- Type NPN transistor, 200 mA, 42 VDC
- USB 2.0 (micro USB) configuration interface,
- Protocol: Modbus TCP
- Ambient temperature -40...+60 °C
- Storage temperature: -40...+60 °C
- Relative humidity: Up to 95%, non-condensing
- Protection system: IP65
- Dimensions 26×48×65 mm
- Weight: Approx. 150 g
- Product type: Digital top-hat rail meter
- No. of analogue inputs
1
- Supported protocols
ModBUS TCP
- Min. operating voltage
10 V DC
- Operating voltage
10 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
IP65
- Type
ITP17
- Manufacturer part #
149534
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+60 °C
- Product type
Display module
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3553201 akYtec ITP17 149534 Display module 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- ITP17
- User manual
- Gasket
- Mounting nut
