Buy akYtec SMI200 37C055 PLC controller 24 V DC

An electronic display with the inscription 'HELLO WORLD!' and several function keys underneath, including ESC, ALT, SEL, OK.

An electronic control unit with a green display shows 'HELLO WORLD!'. Next to it is a green button on a black surface.

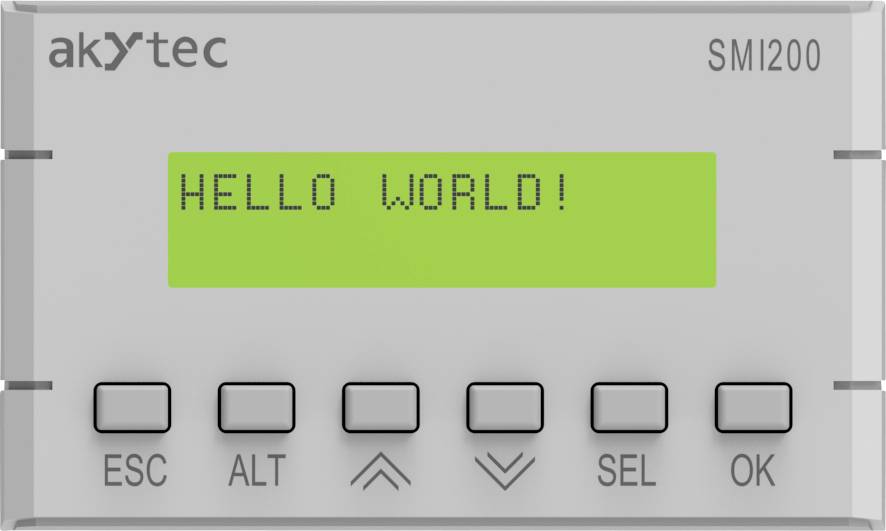

An electronic display shows the message 'HELLO WORLD!' Beneath it are six keys labelled 'ESC', 'ALT', 'OK' and control keys.

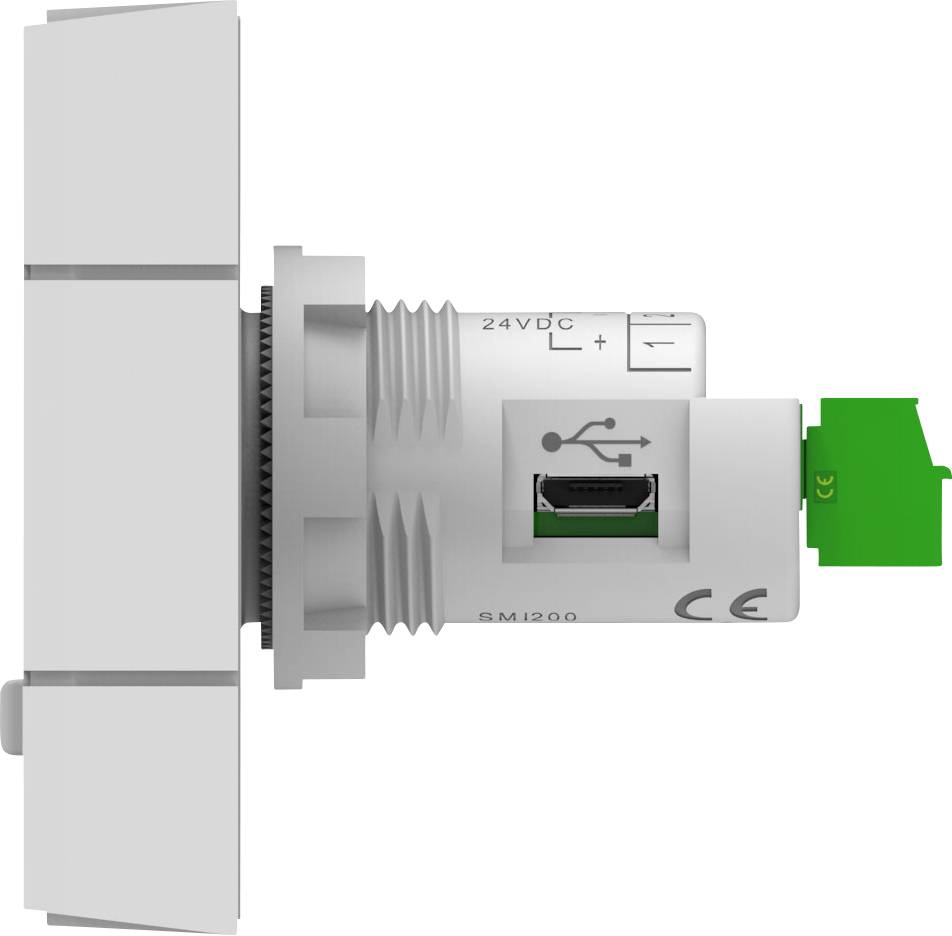

Side view of an electrical module with USB port, 24V DC marking and CE mark, showing mounting part and connections.

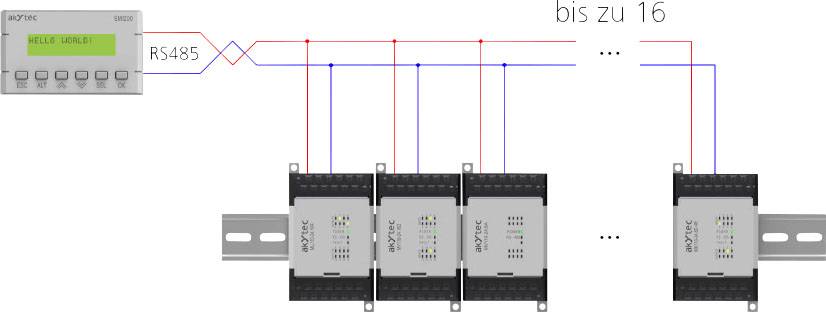

'Diagram of an RS485 network with multiple connected devices. On the left, a control panel with a display, on the right multiple modules on DIN rails up to 16.'

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

The SMI200 is a freely programmable compact controller with an RS485 interface for connecting I/O modules and a two-line LCD display.
Number of control keys: 6
master or slave in a Modbus network via RS485
Power consumption: max. 2.5 W
Programming interface: Micro-USB

Interfaces: 1 x RS485

Supported protocols: Modbus RTU / ASCII (master / slave)

Min. operating voltage: 9 V DC

Operating voltage: 9 - 32 V DC

Max. operating voltage: 32 V DC

Operating voltage: 24 V DC

Height: 60 mm

Length: 100 mm

Width: 60 mm

Program memory: ROM: 128 kB
Retain: 512 Byte kB

: IP20

Type: SMI200

Manufacturer part #: 37C055

Dim: (L x W x H) 100 x 60 x 60 mm

Display: Yes

Fitting type (details): Front installation: Drill hole Ø 22.5 mm

Real-time clock: Yes

Max. ambient temperature: +55 °C

Min. ambient temperature: -20 °C

Product type: PLC controller

Documents & Downloads

Datasheet

Datasheet 2359017 akYtec SMI200 37C055 PLC controller 24 V DC

User & Safety Instructions

User & Safety Instructions 2359017 akYtec SMI200 37C055 PLC controller 24 V DC

Description

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.

Scope of delivery

SMI200
Gasket
Mounting nut
Strip terminal
Quick guide
