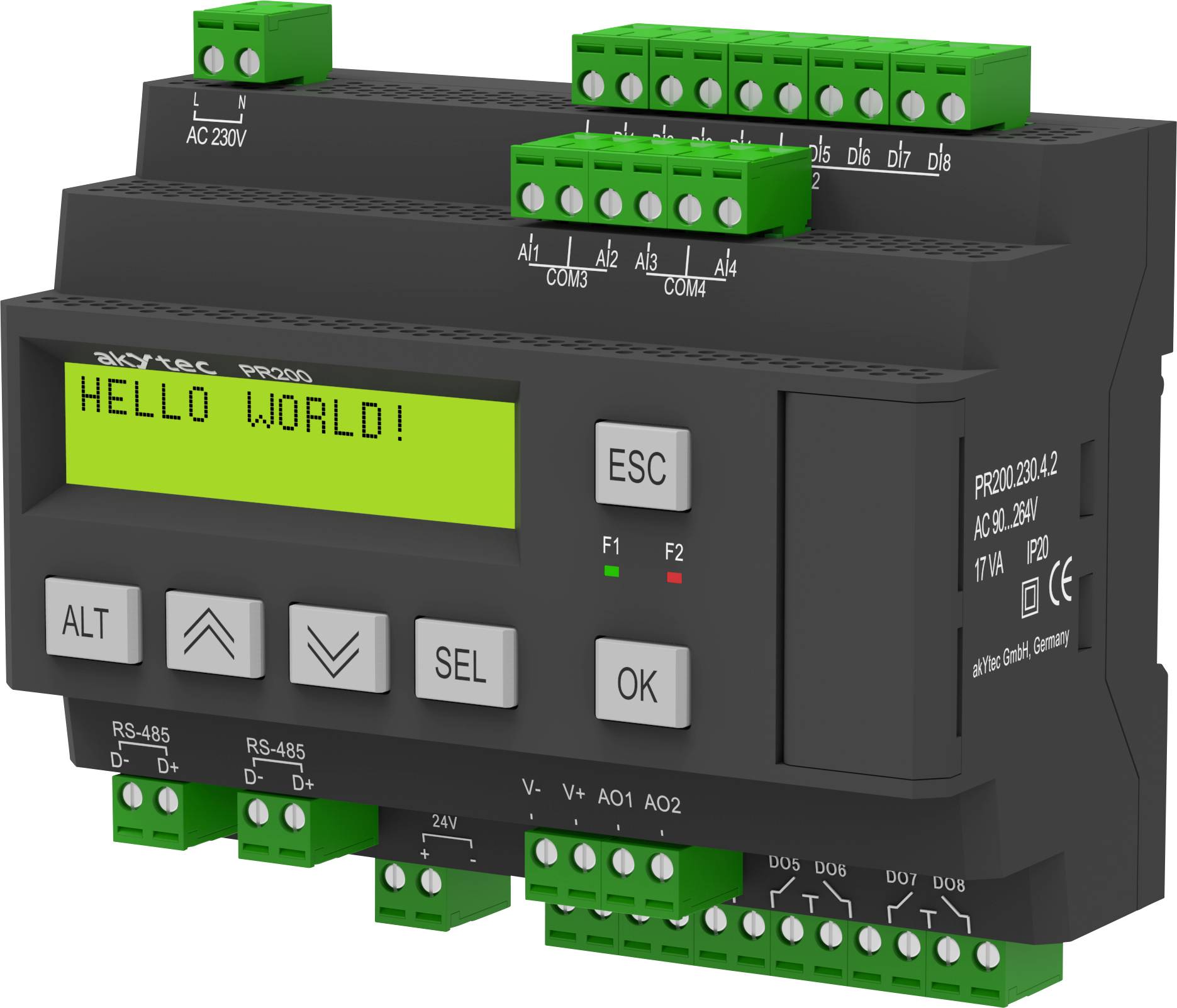

akYtec PR200-230.4.2 37C058 PLC controller 230 V AC
EAN:
Part number:
Item no:
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Only 2 Piece(s) available
Technical specifications
- The programmable relay PR200 is a universally applicable and easy to use small control for many industrial applications.
- Number of control keys: 6
- master and/or slave in a Modbus network via RS485
- Power consumption: Max. 17 VA
- Programming interface: Mini-USB
- LCD display: 2-line, 2x16 characters, with adjustable backlight
- Galvanic isolation: In 4er groups
- Interfaces
2 x RS485
- No. of analogue inputs
4
- No. of analogue outputs
2
- No. of digital inputs (max.)
8
- No. of inputs (max.)
12
- No. of outputs (max.)
10
- No. of relay outputs (max.)
8
- Supported protocols
Modbus RTU / ASCII (master / slave)
- Min. operating voltage
94 V AC
- Clock
Real-time clock
- Operating voltage
94 - 264 V AC
- Max. operating voltage
264 V AC
- Operating voltage
230 V AC
- Height
58 mm
- Length
123 mm
- Width
108 mm
- Program memory
ROM
Retain kB
IP20
- No. of extension modules
2
- Type
PR200-230.4.2
- Manufacturer part #
37C058
- Dim
(L x W x H) 123 x 108 x 58 mm
- Display
Yes
- Fitting type (details)
DIN rail (switchboard / distribution box)
- Real-time clock
Yes
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-20 °C
- Product type
PLC controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2359020 akYtec PR200-230.4.2 37C058 PLC controller 230 V AC
User & Safety Instructions 2359020 akYtec PR200-230.4.2 37C058 PLC controller 230 V AC
User & Safety Instructions 2359020 akYtec PR200-230.4.2 37C058 PLC controller 230 V AC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR200
- Quick guide
- USB cable
- Terminal strips (set)
- Mechanical coding (set)
- USB stick with software and documentation
