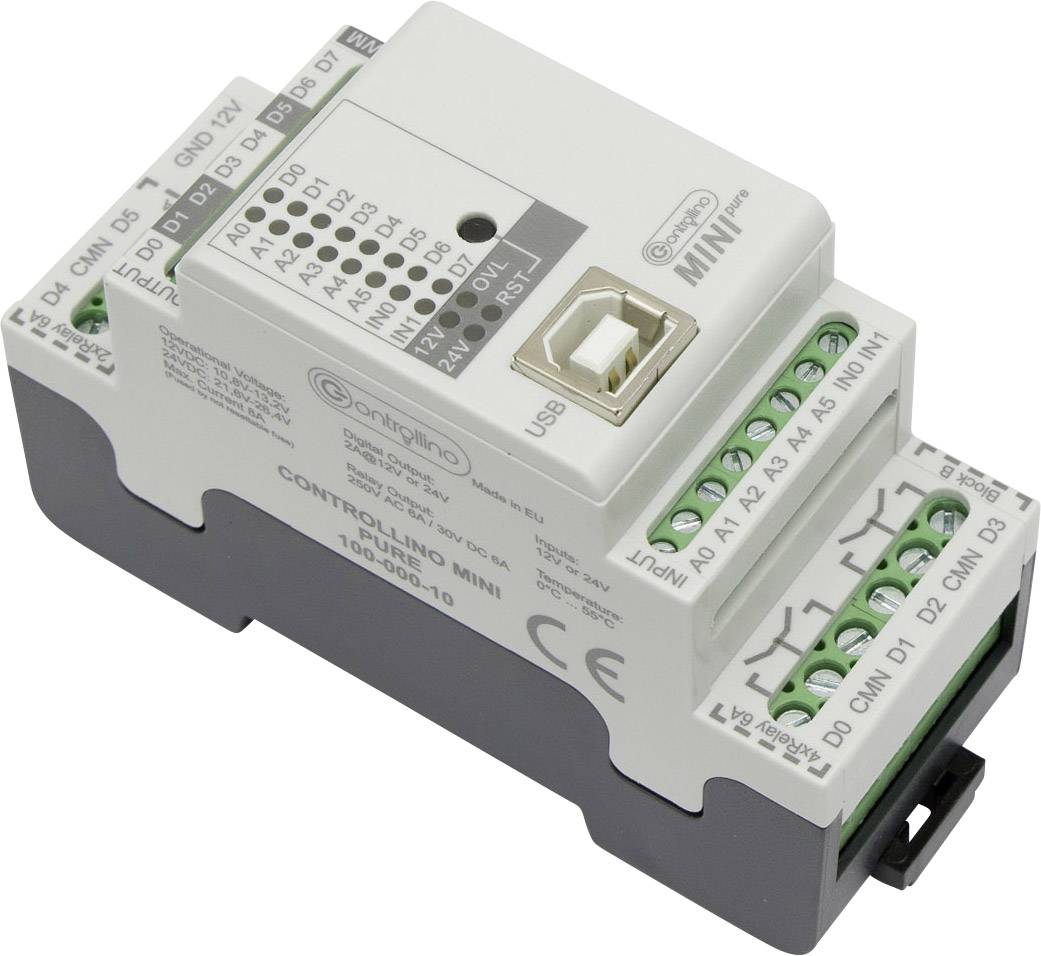

Controllino MINI pure 100-000-10 PLC controller 12 V DC, 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
4 Piece(s)
Sales and shipping:
Number
Total (€ 231.09 / piece)
€
Only 4 Piece(s) available
Technical specifications
- Further technical data, please refer to the data sheet.
- Dim
(W x H x D) 36 x 90 x 60 mm
- Depth
60 mm
- Height
90 mm
- Width
36 mm
- No. of digital inputs (max.)
2
- No. of inputs (max.)
8
- No. of outputs (max.)
8
- No. of relay outputs (max.)
6
- Manufacturer part #
100-000-10
- Type
MINI pure
- Operating voltage
12 V DC
24 V DC
- Min. operating voltage
20.4 V
10.2 V
- Operating voltage
20.4, 10.2 - 15, 30 V, V
- Max. operating voltage
15 V
30 V
- Max. ambient temperature
55 °C
- Min. ambient temperature
0 °C
- Product type
PLC controller
Documents & Downloads
Datasheet
Datasheet 1595715 Controllino MINI pure 100-000-10 PLC controller 12 V DC, 24 V DC
User & Safety Instructions
User & Safety Instructions 1595715 Controllino MINI pure 100-000-10 PLC controller 12 V DC, 24 V DC
Description
Controllino Mini is a freely programmable Arduino® standard and Arduino® software compatible PLC controller for private and industrial use according to EN 61010-2-201 standard.
The Controllino is programd with the Arduino® IDE. This opensource development environment is a C compiler that has already pre-implemented the basic functions and facilitates programming in C. In addition, there are many libraries that simplify programming.
This text is machine translated.
The Controllino is programd with the Arduino® IDE. This opensource development environment is a C compiler that has already pre-implemented the basic functions and facilitates programming in C. In addition, there are many libraries that simplify programming.
