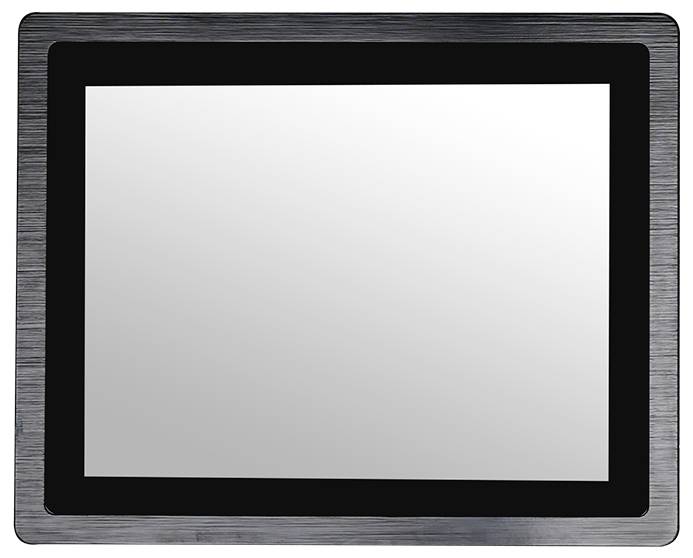

Wachendorff DPL002-150R002P 38.10 cm (15") Display, resistiver Touch Industrial display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 567.23 / piece)
€ 567.23
plus VAT.
Highlights & Details
38.10 cm (15") display, resistive touch
- Brilliant display with wide viewing angle
- HDMI-, DVI- and VGA-interface
- Frame-friendly design
- Protection class IP65 front side
Technical specifications
- Power max. 48 W
- Display 15" TFT LCD
- Resolution: 1024 x 768 pixels
- Page ratio 4:3
- Brightness: 350 cd/m²
- Colors: 16.7 million
- Glass hardness 3H
- Housing: Robust aluminum
- Weighs 3.9 kg.
- Interfaces
USB RJ45 - USB for touch
1x HDMI
1x DVI
1x VGA
Audio output: 3.5 mm jack
- Type
38.10 cm (15") Display, resistiver Touch
- Min. operating voltage
12 V DC
- Operating voltage
12 - 36 V DC
- Max. operating voltage
36 V DC
- Manufacturer part #
DPL002-150R002P
- Height
300 mm
- Length
63.60 mm
- Width
379.80 mm
IP65 (on front)
- Dim
(L x W x H) 63.60 x 379.80 x 300 mm
- Content
1 pc(s)
- Display
Yes
- Certification
CE, FCC class a, CCC
- Fitting type (details)
VESA 100 x 100 or 75 x 75
- Max. ambient temperature
+65 °C
- Min. ambient temperature
-10 °C
- Product type
Industrial display
Documents & Downloads
Datasheet
Datasheet 3331400 Wachendorff DPL002-150R002P 38.10 cm (15") Display, resistiver Touch Industrial display
User & Safety Instructions
User & Safety Instructions 3331400 Wachendorff DPL002-150R002P 38.10 cm (15") Display, resistiver Touch Industrial display
Description
The industrial displays of the series 1 are available in sizes from 10.1" to 23.8" and can be fitted optionally with projected capacitive, resistive or without touch-screen. The only 3 mm thick front frame is particularly impressive, which allows for almost flush mounting in the control panel cut-out. The housings are made in IP65 at the front and have a very compact and robust design thanks to the specially designed aluminum housing. The display can be used almost anywhere due to its low installation depth.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x device
- 1x attachment material (screws and mounting clamps)
- 1x RJ-45 to USB cable
- 1x VGA cables
Hints
Intended for control panel installation.
