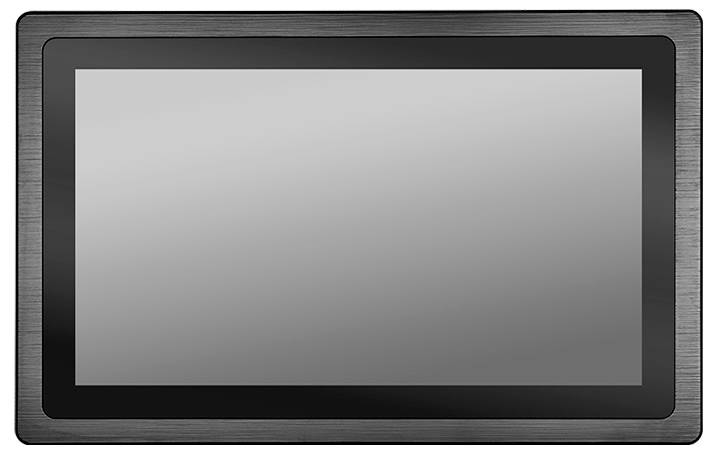

Wachendorff DPL002-173N002P 43.94 cm (17.3") Display, ohne Touch Industrial display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 503.36 / piece)
€ 503.36
plus VAT.
Highlights & Details
43.94 cm (17.3") display, without touch
- Brilliant display with wide viewing angle
- HDMI-, DVI- and VGA-interface
- Frame-friendly design
- Protection class IP65 front side
Technical specifications
- Power max. 48 W
- Display 17.3" TFT LCD
- Resolution 1920 x 1080 pixels
- Aspect ratio: 16:9
- Brightness: 400 cd/m²
- Colors: 16.7 million
- Glass hardness 7h
- Housing: Robust aluminum
- Weighs 4.3 kg.
- Interfaces
USB RJ45 - USB for touch
1x HDMI
1x DVI
1x VGA
Audio output: 3.5 mm jack
- Type
43.94 cm (17.3") Display, ohne Touch
- Min. operating voltage
12 V DC
- Operating voltage
12 - 36 V DC
- Max. operating voltage
36 V DC
- Manufacturer part #
DPL002-173N002P
- Height
291 mm
- Length
67 mm
- Width
458 mm
IP65 (on front)
- Dim
(L x W x H) 67 x 458 x 291 mm
- Content
1 pc(s)
- Display
Yes
- Certification
CE, FCC class a, CCC
- Fitting type (details)
VESA 100 x 100 or 75 x 75
- Max. ambient temperature
+65 °C
- Min. ambient temperature
-10 °C
- Product type
Industrial display
Documents & Downloads
Datasheet
Datasheet 3331408 Wachendorff DPL002-173N002P 43.94 cm (17.3") Display, ohne Touch Industrial display
User & Safety Instructions
User & Safety Instructions 3331408 Wachendorff DPL002-173N002P 43.94 cm (17.3") Display, ohne Touch Industrial display
Description
The industrial displays of the series 1 are available in sizes from 10.1" to 23.8" and can be fitted optionally with projected capacitive, resistive or without touch-screen. The only 3 mm thick front frame is particularly impressive, which allows for almost flush mounting in the control panel cut-out. The housings are made in IP65 at the front and have a very compact and robust design thanks to the specially designed aluminum housing. The display can be used almost anywhere due to its low installation depth.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x device
- 1x attachment material (screws and mounting clamps)
- 1x VGA cables
Hints
Intended for control panel installation.
