Name: Wachendorff JWS170-A210-3288432KY-A 17" Web Panel, Autom. Browser Browser web panel
Brand: Wachendorff
SKU: 2731439
Availability: BackOrder

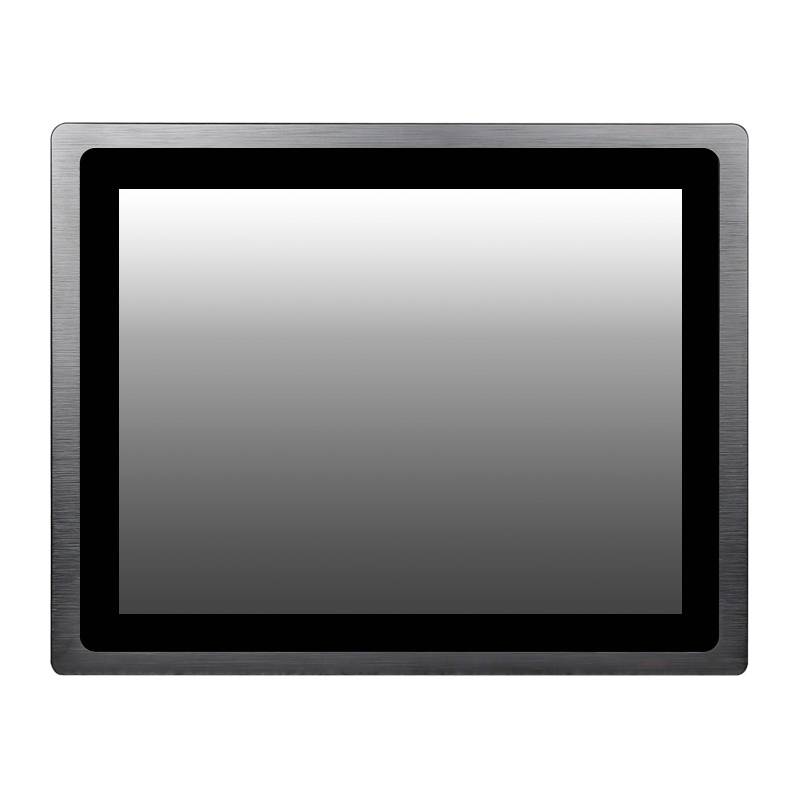

A rectangular screen with a silver frame and black border in the centre. The screen is switched off.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,095.00 / piece)

€ 1,095.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wachendorff 17" web panel 1280x1024 pixels

Very fast response with a quad-core Cortex-A17/1.8 GHz CPU4 GB DDR3 DRAM and 32 GB eMMCBrilliant display with wide viewing angleInterfaces: Wi-Fi, Bluetooth, USB, serialFrame-friendly displayProtection class IP65

Technical specifications

Display 1280 x 1024 pixelsWeighs 4.5 kg.

Product type: Browser web panel

Interfaces: 2x USB 2.0 Host type A
USB Mini
Ethernet
RJ45
Display: 1x HDMI-output
Audio output: 3.5 mm jack
Wi-Fi
Bluetooth 4.0

Type: 17" Web Panel, Autom. Browser

Min. operating voltage: 12 V DC

Operating voltage: 12 - 36 V DC

Max. operating voltage: 36 V DC

Manufacturer part #: JWS170-A210-3288432KY-A

Height: 345 mm

Length: 60.30 mm

Width: 414 mm

: IP65

Dim: (L x W x H) 60.30 x 414 x 345 mm

Content: 1 pc(s)

Display: Yes

Fitting type (details): VESA 100 x 100 or 75 x 75

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

Certification: CE, FCC class a, CCC

Documents & Downloads

Datasheet

Datasheet 2731439 Wachendorff JWS170-A210-3288432KY-A 17" Web Panel, Autom. Browser Browser web panel

User & Safety Instructions

User & Safety Instructions 2731439 Wachendorff JWS170-A210-3288432KY-A 17" Web Panel, Autom. Browser Browser web panel

Description

This Web Panel series is based on a powerful RK3288 Quad Core Cortex-A17 processor. The Web panels are in the display sizes from 7" to 23.8" optionally equipped with projected capacitive or without touch. The projected capacitive touch makes possible a multi-touch operation. The casings are made in IP65 on the front and have a very compact and robust design through the aluminum casing. Thanks to its low installation depth, the Web Panels can be used almost anywhere. The Web Panel has the pre-installed AutomationBrowser and is used for connection to controllers with their own web server (e.g. CODESYS V3 web server). Setting up and using the web browser is extremely simple and intuitive. The integrated WiFi and Bluetooth interfaces enable the most diverse applications.

This text is machine translated.
