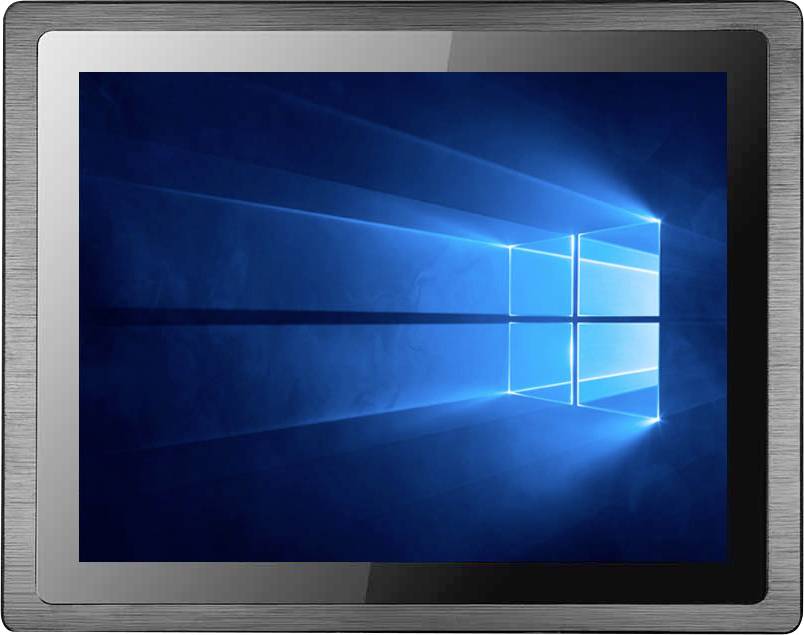

Wachendorff PPC002-170CAH08512WAED2P 43.18 cm (17") Panel PC, kap. Touch, i3-8145U Industrial display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,626.05 / piece)
€ 1,626.05
plus VAT.
Technical specifications
- Display 17" TFT LCD
- Resolution: 1280 x 1024 pixels
- Page ratio 4:3
- Brightness: 300 cd/m²
- Colors: 16.7 million
- Casing: Die-cast aluminum
- Weight: 5 kg
- Interfaces
2x USB 2.0
2x USB 3.0
2x RS-232 DB-9
2x RJ-45 Gigabit Ethernet
1x WLAN
1x Bluetooth 4.2
1x HDMI
1x VGA
1x audio output 3.5 mm jack
- Type
43.18 cm (17") Panel PC, kap. Touch, i3-8145U
- Min. operating voltage
12 V DC
- Operating voltage
12 - 36 V DC
- Max. operating voltage
36 V DC
- Manufacturer part #
PPC002-170CAH08512WAED2P
- Height
345 mm
- Length
63 mm
- Width
414 mm
IP65 (on front)
- Dim
(L x W x H) 63 x 414 x 345 mm
- Content
1 pc(s)
- Display
Yes
- Certification
CE, RoHS, FCC, REACH
- Fitting type (details)
VESA 100 x 100 or 75 x 75
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Product type
Industrial display
Documents & Downloads
Datasheet
Datasheet 3331427 Wachendorff PPC002-170CAH08512WAED2P 43.18 cm (17") Panel PC, kap. Touch, i3-8145U Industrial display
User & Safety Instructions
User & Safety Instructions 3331427 Wachendorff PPC002-170CAH08512WAED2P 43.18 cm (17") Panel PC, kap. Touch, i3-8145U Industrial display
Description
The industrial panel PCs of the Wachendorff series-1 are equipped in the display sizes 10" to 23.8", optionally with projected capacitive, resistive or without touch. The projected capacitive touch enables a multi-touch operation with a corresponding operating system. The Panel PC is the 8 with a Intel® CoreTM i3. Generation. The front panels are absolutely frame-flush connected to the die-cast aluminum housing. The casing is designed in IP65. The unique fan-less thermal design of the die-cast aluminum housing enables effective temperature control.
This text is machine translated.
This text is machine translated.
Features
- Capacitive touch display
- Processor i3-8145U
- Kingston Memory 8 GB RAM
- Memory 512GB SSD
- WIN10 IoT 2021 operating system
Scope of delivery
- 1x device
- 1x attachment material (screws and mounting clamps)
Hints
Intended for control panel installation.
