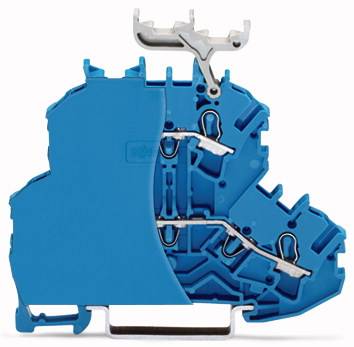

WAGO 2002-2204/099-000 Dual port continuity 6.20 mm Pull spring Configuration: L, L Blue 50 pc(s) Package
Packaging type
Package
Product type
Dual port continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Two-level terminal block
- 2002 2204/099-000
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Package
- Product type
Dual port continuity
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
L
L
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
6.20 mm
- No. of rows
2
- Pins per row
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Stripping length (max.)
10 mm
- Manufacturer part #
2002-2204/099-000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2002-2204/099-000
- Dim
(L x W x H) 6.20 x 6.20 x 51.70 mm
- Width
6.20 mm
- Height
51.70 mm
- Length
6.20 mm
- Contamination level
3
- Weight
13.203 g
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 657442 WAGO 2002-2204/099-000 Dual port continuity 6.20 mm Pull spring Configuration: L, L Blue 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 657442 WAGO 2002-2204/099-000 Dual port continuity 6.20 mm Pull spring Configuration: L, L Blue 50 pc(s) Package
