Name: WAGO 2002-3247 Triple port PG terminal 5.20 mm Pull spring Configuration: Terre, N, L Grey 50 pc(s) Package
Brand: WAGO
SKU: 655429

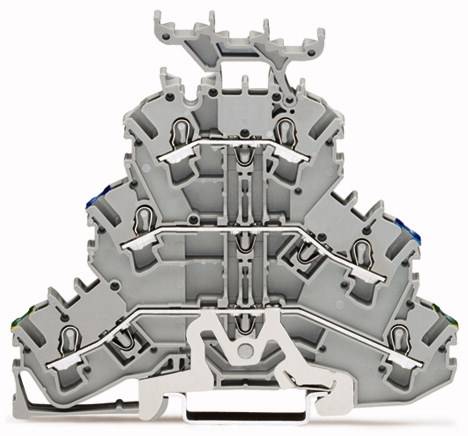

Cross-section of a grey electrical connector with multiple connection levels and clamp elements for securing.

1/2

Packaging type

Package

Product type

Triple port PG terminal

Connection

Pull spring

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

2.50 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Three-level terminal

2002-3247

Technical specifications

Packaging type: Package

Product type: Triple port PG terminal

Features: Complies with ATEX Ex-e II standards
+ label

Connection: Pull spring

Configuration: Terre
N
L

Cross section (flexible) (min.): 0.25 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.25 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 22

AWG max.: 12

Clamp width: 5.20 mm

No. of rows: 3

Pins per row: 2

Number of pins: 6

Factory colour: Grey

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Stripping length (max.): 10 mm

Manufacturer part #: 2002-3247

Content: 50 pc(s)

Industrial packaging: Yes

Type: 2002-3247

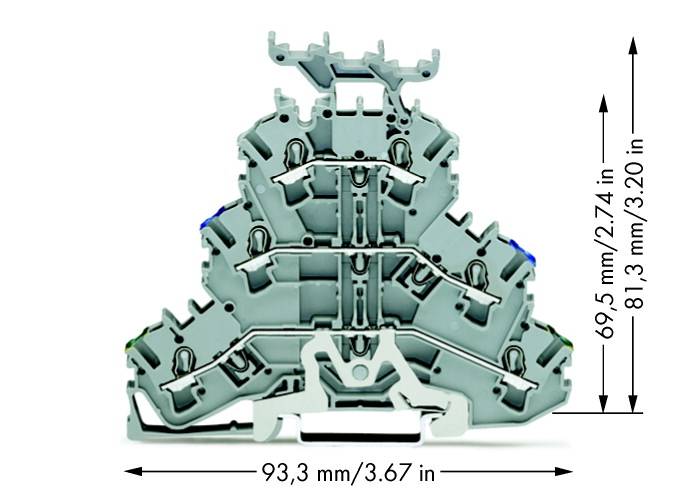

Dim: (L x W x H) 5.20 x 5.20 x 81.30 mm

Width: 5.20 mm

Height: 81.30 mm

Length: 5.20 mm

Contamination level: 3

Weight: 20.356 g

Connector colour: Grey

UKCA: not relevant
