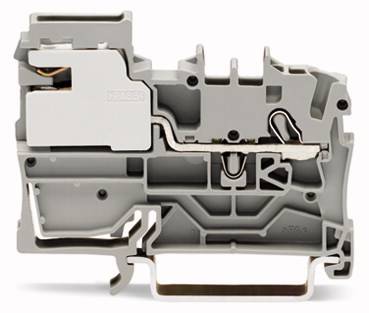

WAGO 2002-7111 PD terminal 5.20 mm Pull spring Grey 50 pc(s) Package
Packaging type
Package
Product type
PD terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
1-conductor equipotential bonding terminal
- 2002-7111
Technical specifications
- Packaging type
Package
- Product type
PD terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
250 V
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
2002-7111
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2002-7111

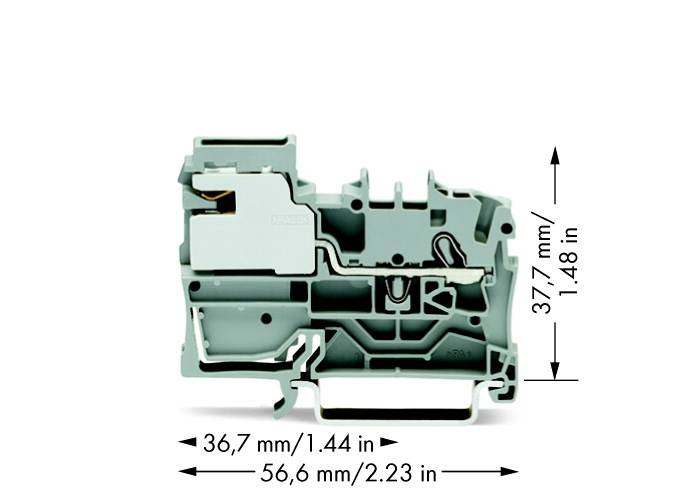

- Dim
(L x W x H) 5.20 x 5.20 x 37.70 mm
- Width
5.20 mm
- Height
37.70 mm
- Length
5.20 mm
- Contamination level
3
- Weight
8 g
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655627 WAGO 2002-7111 PD terminal 5.20 mm Pull spring Grey 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 655627 WAGO 2002-7111 PD terminal 5.20 mm Pull spring Grey 50 pc(s) Package
