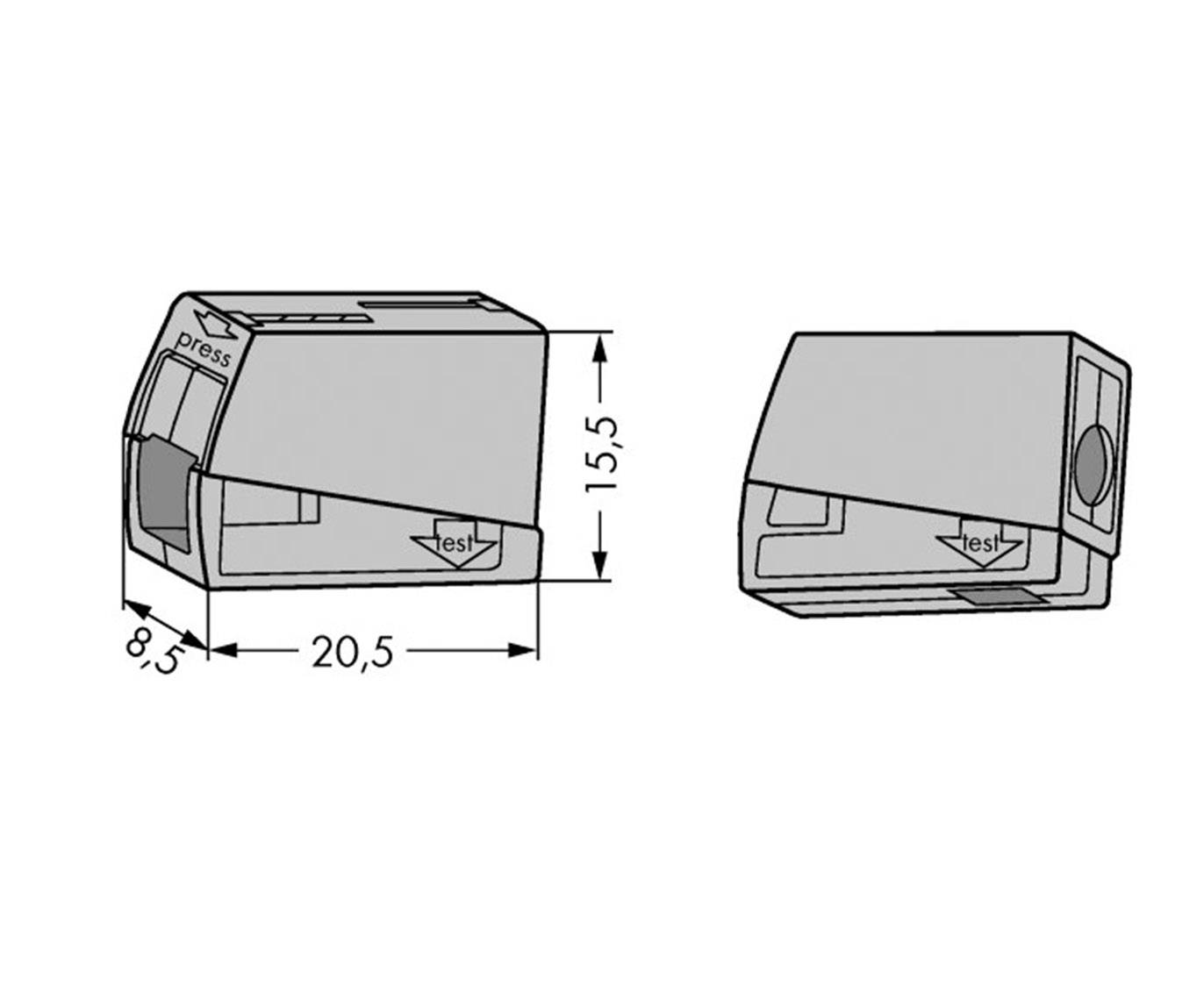

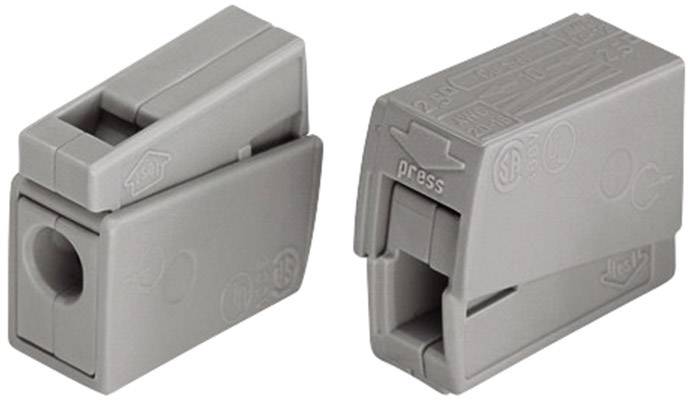

WAGO 224-101 EUCHTENKLEMME Lamp terminal flexible: 0.5-2.5 mm² fixed: 0.5-2.5 mm² Number of pins: 2 1 pc(s) Grey
Product type
Lamp terminal
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 0.30 / piece)
€ 0.43
-30 %
€ 3.00
incl. VAT
14-day return policy included
Highlights & Details
lighting connector
Technical specifications
- Product type
Lamp terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
2
- Factory colour
Grey
- Series
224
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Manufacturer part #
224-101
- Connection
Pull spring
- Nominal voltage
400 V
- Connector clip features
Latch
- Nominal voltage (details)
400 V
- Nominal current (details)
24 A
- Cross section
0.5 - 2.5 mm²
- Pins
2
- Connection
-
Documents & Downloads
Datasheet
Datasheet 618020 WAGO 224-101 EUCHTENKLEMME Lamp terminal flexible: 0.5-2.5 mm² fixed: 0.5-2.5 mm² Number of pins: 2 1 pc(s) Grey
User & Safety Instructions
User & Safety Instructions 618020 WAGO 224-101 EUCHTENKLEMME Lamp terminal flexible: 0.5-2.5 mm² fixed: 0.5-2.5 mm² Number of pins: 2 1 pc(s) Grey
Description
For solid and fine strand conductors. Insert the solid conductor on one side, press the clip together and push in the fine strand conductor on the other side.
Hints
Tested according to VDE.
