Name: WAGO 279-623/281-410 Diode terminal 4 mm Pull spring Grey 100 pc(s) Package
Brand: WAGO
SKU: 654485

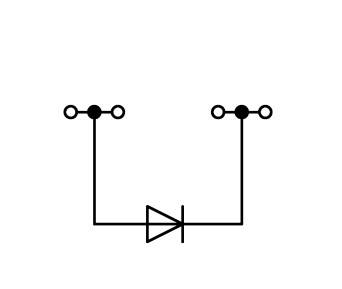

Electronic circuit diagram shows a diode establishing an electrical connection between two points.

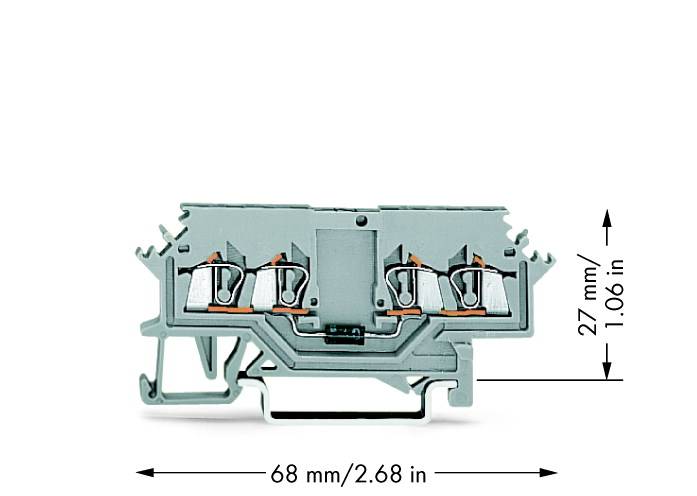

Terminal block, 68 mm long and 27 mm high, shows the wire connections and mechanical structure.

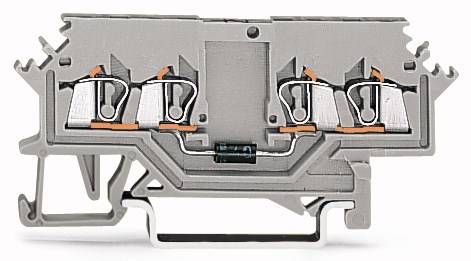

A cross-section of a grey terminal block with four metal contacts and a fuse element, a typical industrial component.

1/3

Packaging type

Package

Product type

Diode terminal

Connection

Pull spring

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (max.)

1.50 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

4-conductor diode terminal

279-623/281-410
Industrial packaging with 100 pieces
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Diode terminal

Features: + 1 diode

Connection: Pull spring

Cross section (flexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 28

AWG max.: 16

Clamp width: 4 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Factory colour: Grey

Nominal current: 0.5 A

Nominal current - rounded value: 500 mA

Nominal voltage: 250 V

Stripping length (max.): 8 mm

Manufacturer part #: 279-623/281-410

Content: 100 pc(s)

Industrial packaging: Yes

Type: 279-623/281-410

Dim: (L x W x H) 4 x 4 x 27 mm

Width: 4 mm

Height: 27 mm

Length: 4 mm

Weight: 5.982 g

Connector colour: Grey

UKCA: not relevant
