WAGO 769-102/022-000 Grey 100 pc(s)
Packaging type
Piece
Factory colour
Grey
Stripping length
8 mm
Stripping length (max.)
8 mm
Dim
(L x W x H) 10 x 10 x 37.1 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

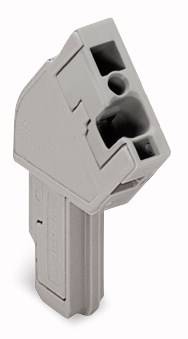

1-conductor terminal block
- 769-102/022-000
- Industrial packaging with 100 pieces
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Factory colour
Grey
- Stripping length
8 mm
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 10 x 10 x 37.1 mm
- Connection
Spring-loaded terminal
- Weight
4.84 g
- Manufacturer part #
769-102/022-000
- Industrial packaging
Yes
- Content
100 pc(s)
- Material
Thermoplastic
- Series
769
- Number of pins
2
- Width
10 mm
- Height
37.1 mm
- Length
10 mm
- Series
769
- Type
769-102/022-000
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
Other
Grey
10
TRUE
26.5 mm
37.1 mm
500 V
2
105-105 °C
V0
FALSE
Spring clamp connection
Spring clamp connection
FALSE
0.08-4 mm²
0.25-2.5 mm²
0.08-4 mm²
0.08-4 mm²
Thermoplastic
32 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 655908 WAGO 769-102/022-000 Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 655908 WAGO 769-102/022-000 Grey 100 pc(s)
