Name: WAGO 787-1662 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)
Brand: WAGO
SKU: 1214649
Availability: BackOrder

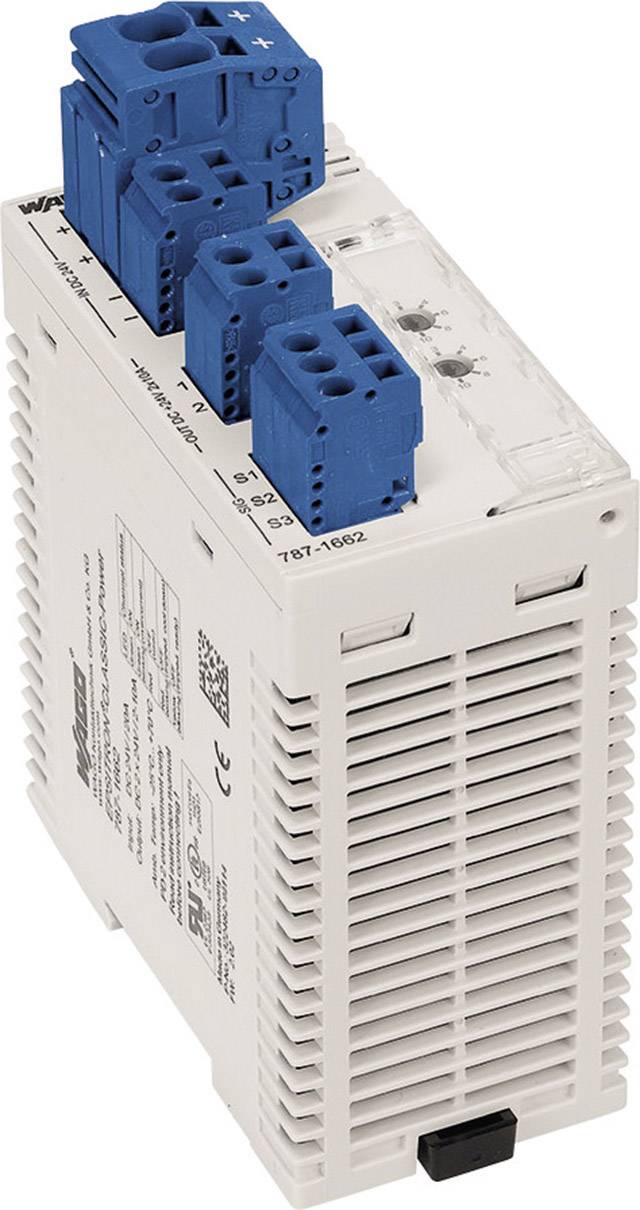

Electrical device with a white casing and blue terminal connections on top. The device is designed for industrial applications.

Datasheet (PDF)

Dispatches on Fri 27 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EPSITRON electronic circuit breaker 24 V DC 2x10A

Reliability via connectors equipped with CAGE CLAMP®
Slim housing that‘s easy to mount on DIN-rail
4 current channels with adjustable rated current
Configurable isolated signal contact

Technical specifications

Nominal input voltage: 24 V/DC

Product type: RCCB

Min. input voltage: 18 V DC

Input voltage (max.): 30 V DC

Max. output current: 6 A

Output current (max.) - rounded: 6 A

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 2 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 115.5 x 45 x 90 mm

Weight: 170 g

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: 787-1662

Content: 1 pc(s)

PSU features: Surge protection

Width: 45 mm

Height: 90 mm

Length: 115.5 mm

Type: EPSITRON® 787-1662

Depth: 163 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Min. input voltage

WAGO 787-1662 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)

Item no:1214649

Dispatches on Fri 27 Nov

Conrad Electronic

This article

30 V DC

Adjustable

24 V/DC

2 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

WAGO 787-1662/006-1000 RCCB 24 V DC 6 A 144 W No. of outputs:2 x Content 1 pc(s)

Item no:1214650

Dispatches on Fri 27 Nov

Conrad Electronic

30 V DC

24 V/DC

2 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

WAGO 787-1662/106-000 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)

Item no:1214652

Dispatches on Fri 27 Nov

Conrad Electronic

30 V DC

Adjustable

2 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

WAGO 787-1664 RCCB 24 V DC 10 A 240 W No. of outputs:4 x Content 1 pc(s)

Item no:414857

Fast track dispatch on Thu 15 Oct

22 Piece(s)Conrad Electronic

30 V AC

Fixed voltage

24 V/DC

4 x

10 A

18 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

WAGO 787-1664/006-1000 RCCB 24 V DC 6 A No. of outputs:4 x Content 1 pc(s)

Item no:1214656

Dispatches on Fri 27 Nov

Conrad Electronic

30 V DC

Fixed voltage

4 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

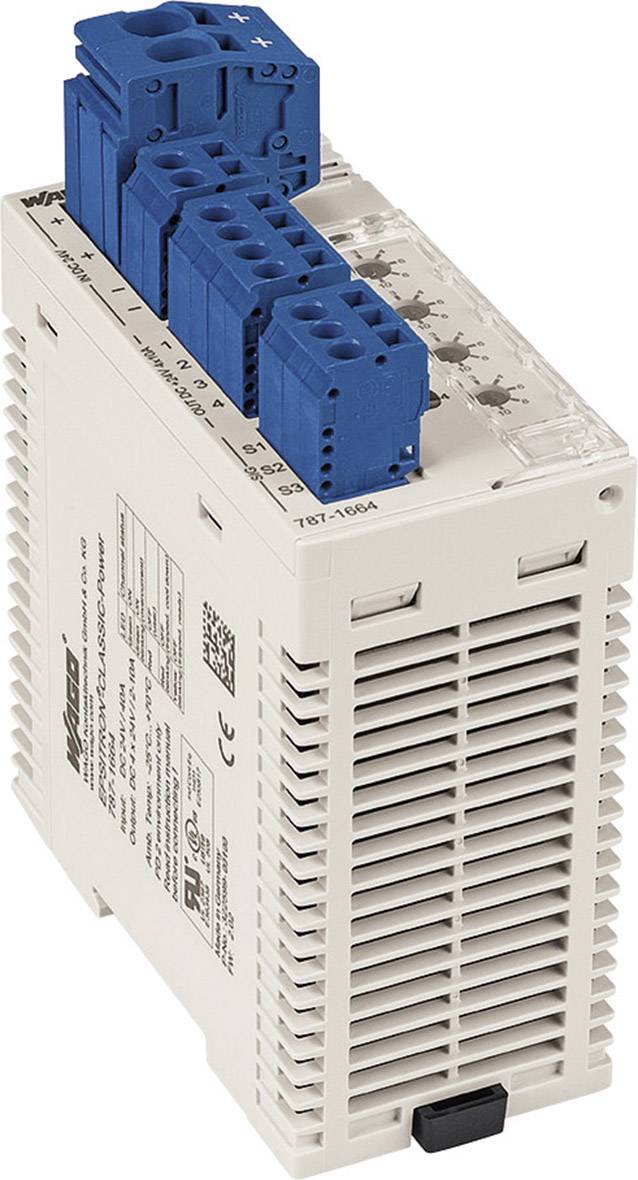

WAGO 787-1664/106-000 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)

Item no:1214657

Dispatches on Fri 27 Nov

Conrad Electronic

30 V DC

Adjustable

2 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

WAGO 787-1668 RCCB 24 V DC 10 A 240 W No. of outputs:8 x Content 1 pc(s)

Item no:414858

Fast track dispatch on Thu 15 Oct

7 Piece(s)Conrad Electronic

30 V AC

Fixed voltage

24 V/DC

8 x

10 A

18 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

WAGO 787-1668/006-1000 RCCB 24 V DC 6 A No. of outputs:8 x Content 1 pc(s)

Item no:1214660

Fast track dispatch on Thu 15 Oct

4 Piece(s)Conrad Electronic

30 V DC

Adjustable

8 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 339.00^*

WAGO 787-1668/106-000 RCCB 24 V DC 6 A No. of outputs:8 x Content 1 pc(s)

Item no:1214661

Dispatches on Fri 27 Nov

Conrad Electronic

30 V DC

Adjustable

8 x

6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 429.00^*

WAGO 787-862 RCCB 24 V DC 10 A 240 W No. of outputs:4 x Content 1 pc(s)

Item no:518963

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

30 V AC

24 V/DC

4 x

10 A

18 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 255.00^*

Documents & Downloads

Datasheet

Datasheet 1214649 WAGO 787-1662 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1214649 WAGO 787-1662 RCCB 24 V DC 6 A No. of outputs:2 x Content 1 pc(s)

Description

787-1662 electronic circuit breaker from WAGO's EPSITRON series of configurable electronic circuit breakers offering protection for 24Vdc.

Trip Characteristics

Rated currents can be set separately for each channel in 1A increments. In the event of an overcurrent, the affected channel will be shut down safely and reset per programmed protection characteristic. The 787-861 Circuit Breaker provides active short-circuit current limitation to 1.5 times its rated current, preventing a voltage drop in one current path from affecting others in the event of a short-circuit. Current path trip times may also be configured. Once a channel has been shut down, it can be reactivated via on-unit keys or by an impulse at the remote control input of the 787-860 or 787-862 Circuit Breakers.

Communication And Easy Adjustment

LEDs: A green LED signals error-free operation. Non-critical errors (e.g., minor overcurrents or undervoltage at the device input) are indicated by the yellow LED. The red LED indicates critical errors, such as a circuit failure.

Display: Display and on-unit keys provide direct parameter setting and on-site monitoring. For example, the output currents of all 4 channels and the input voltage are indicated continuously on the display along with the input voltage. The integrated error memory permits quick diagnostics.

Active signal outputs/isolated contact: Four active signal outputs provide function monitoring and can be processed as a digital signal in the PLC. Signal output 1 of 787-860 and 787-862 Power Supplies is linked to an isolated signal contact. It can be user-defined via free 759-860 Configuration Software, e.g., to cover multiple fault conditions.

RS-232 serial interface: Devices can readily communicate with a PC or higher-level control system. Free 759-860 Configuration Software configures current and trip characteristics of individual channels, as well as provides visualization and fault diagnostics. The software is available as a download at: www.wago.com/epsitron.
