Name: WAGO 787-736 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:2 x Content 1 pc(s)
Brand: WAGO
SKU: 1214662
Availability: BackOrder

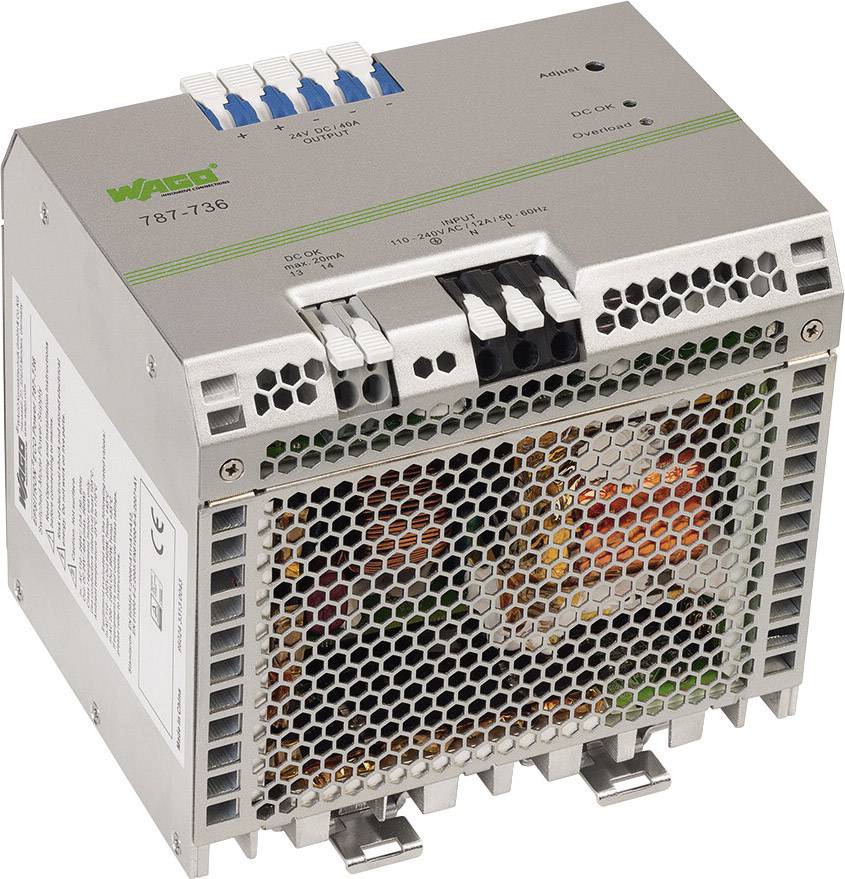

A switched-mode power supply with a ventilation grille, on which 'Wago 787-736' is written, displays connections and technical specifications on the side.

Datasheet (PDF)

Dispatches on Fri 27 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 795.00 / piece)

€ 795.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

WAGO 787-736 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:2 x Content 1 pc(s)

Input voltage range: 100 - 240 V AC
1 phase
Output: 24V DC 40000mA
Switched Mode
Termination type: CAGE CLAMP terminals

Technical specifications

Type: Switched PSU

Nominal input voltage: 120 - 370 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 90 V AC

Output voltage: 24 V DC

Input voltage: 100 - 240 V AC

Input voltage (max.): 264 V AC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

: 960 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 2 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 150 x 170 x 136 mm

Weight: 3500 g

Output voltage (max.): 28 V DC

Output voltage (min.): 22 V DC

Manufacturer part #: 787-736

Content: 1 pc(s)

PSU features: Regulated

Width: 170 mm

Height: 136 mm

Length: 150 mm

Type: EPSITRON

Connections: 2 x

Output current (details): 40000 mA

: 170

: 136 mm

: 150 mm

: FALSE

: FALSE

: 10

: AC/DC

: Spring clamp connection

: TRUE

: IP20

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Min. input voltage

WAGO 787-736 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:2 x Content 1 pc(s)

Item no:1214662

Dispatches on Fri 27 Nov

Conrad Electronic

This article

960 W

264 V AC

24 V DC

Adjustable

120 - 370 V/DC

2 x

40 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 795.00^*

WAGO 787-1020 Rail mounted PSU (DIN) 5 V 5.5 A 27.5 W No. of outputs:1 x Content 1 pc(s)

Item no:1429839

Dispatches on Fri 27 Nov

Conrad Electronic

27.5 W

264 V AC

5 V

100 V/AC

1 x

5.5 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

WAGO 787-1640 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1429847

Fast track dispatch on Thu 15 Oct

3 Piece(s)Conrad Electronic

240 W

575 V AC

24 V

Fixed voltage

400 V/AC

1 x

10 A

320 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 325.00^*

WAGO 787-1642 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1429824

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

480 W

575 V AC

24 V

Fixed voltage

400 V/AC

1 x

20 A

320 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 395.00^*

WAGO 787-1702 Rail mounted PSU (DIN) 24 V 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:1429834

Fast track dispatch on Thu 15 Oct

11 Piece(s)Conrad Electronic

30 W

264 V AC

24 V

Fixed voltage

110 V/AC

1 x

1.25 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

WAGO 787-1712 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1429835

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

60 W

264 V AC

24 V

Fixed voltage

110 V/AC

1 x

2.5 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

WAGO 787-1722 Rail mounted PSU (DIN) 24 V 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1429836

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

120 W

264 V AC

24 V

110 V/AC

1 x

5 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

WAGO 787-1732 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1429837

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

240 W

264 V AC

24 V

Fixed voltage

110 V/AC

1 x

10 A

90 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

WAGO 787-712 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:511384

Fast track dispatch on Thu 15 Oct

11 Piece(s)Conrad Electronic

60 W

550 V AC

24 V DC

Adjustable

115 V/AC

1 x

2.5 A

340 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

WAGO 787-722 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:511555

Fast track dispatch on Thu 15 Oct

7 Piece(s)Conrad Electronic

120 W

264 V AC

24 V DC

Adjustable

115 V/AC

1 x

5 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Documents & Downloads

Datasheet

Datasheet 1214662 WAGO 787-736 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1214662 WAGO 787-736 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:2 x Content 1 pc(s)

Description

EPSITRON power supply with 24V DC 40000mA output - belonging to Wago's EPSITRON ECO POWER series of economical DIN rail power supplies for standard applications.

These power supplies are an economical alternative for applications that simply require 24Vdc without additional functions. Packaged in a flat and solid metal housing, the EPSITRON provides a 40000mA output current.

ECO Power Supplies lower project and operating costs with advanced features including: LED status indication, front-panel adjustable output voltage, efficiency levels up to 82% and maintenance-free CAGE CLAMP® terminations.

Fast and Safe Connection
CAGE CLAMP® Spring Pressure Connection Technology provides fast, vibration-free and maintenance-free termination of solid, finestranded or ferruled conductors.

Fast Installation
All ECO Power Supplies have a flat and very robust DIN rail mount metal housing. Mounting is simple, thanks to a readily accessible plate on the device.

Clear Indication
All ECO Power Supplies indicate output voltage availability via green LED. A red LED indicates an overvoltage. This simplifies start-up and quickly provides maintenance personnel with system or machine status.

High Load-Carrying Capacity
ECO Power Supplies detect overload from 1.15x nominal output current. The units can be overloaded up to 1.4x the nominal current. The output voltage is considerably reduced if the overload continuous rising. In case of a low-resistance short-circuit, the output will be switched off. As soon as the short circuit has been removed, the output will automatically reactivate.

Universal Supply
The wide range of input voltages ECO Power Supplies allows feeds of 85 to 264Vac – mass-produced machines can operate on different supply networks in Europe, America or Asia without additional conversion or setting. This feature increases tolerance of voltage fluctuations within a supply network, increasing reliability.
