Name: WAGO 870-507 Dual port PG terminal 5 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Package
Brand: WAGO
SKU: 655696

Green electrical terminal block with metal connections. Dimensions: 70 mm (width), 40 mm (height).

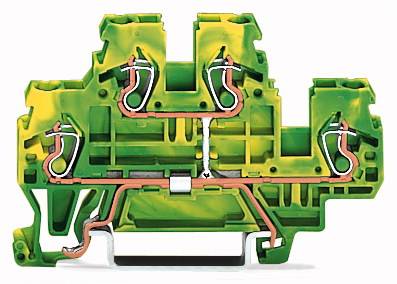

A cross-section of a green terminal block with visible copper connections demonstrating the electrical conductivity within the block.

1/2

Packaging type

Package

Product type

Dual port PG terminal

Connection

Pull spring

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

2.50 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Two-level terminal block

870-507
Industrial packaging, pack of 50
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Dual port PG terminal

Connection: Pull spring

Configuration: Terre

Cross section (flexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

AWG max.: 12

Clamp width: 5 mm

No. of rows: 2

Pins per row: 2

Number of pins: 4

Factory colour: Green
Yellow

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Stripping length (max.): 6 mm

Manufacturer part #: 870-507

Content: 50 pc(s)

Industrial packaging: Yes

Type: 870-507

Dim: (L x W x H) 5 x 5 x 40 mm

Width: 5 mm

Height: 40 mm

Length: 5 mm

Weight: 11.773 g

UKCA: yes
