Name: WAGO 870-826 Continuity 5 mm Pull spring Configuration: L Grey 100 pc(s) Package
Brand: WAGO
SKU: 655750

Figure of an electrical terminal block with dimensions: 55 mm width, 27.5 mm height. Contains four terminal points.

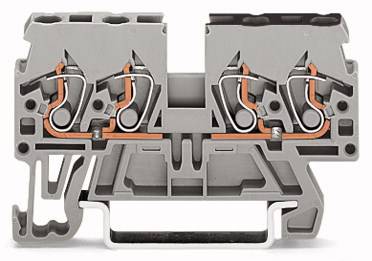

A grey terminal block with two copper connection blocks and a screw mechanism for electrical connection in electrical cabinets.

1/2

Packaging type

Package

Product type

Continuity

Connection

Pull spring

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

2.50 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Double feed-through terminal

870-826
Industrial packaging with 100 pieces
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Continuity

Features: + CAGE CLAMP®

Connection: Pull spring

Configuration: L

Cross section (flexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

AWG max.: 12

Clamp width: 5 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Factory colour: Grey

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 500 V

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Manufacturer part #: 870-826

Content: 100 pc(s)

Industrial packaging: Yes

Type: 870-826

Dim: (L x W x H) 5 x 5 x 27.50 mm

Width: 5 mm

Height: 27.50 mm

Length: 5 mm

Contamination level: 3

Weight: 7.38 g

Flammability rating: V0

Insulation material: Thermoplastic

: DIN rail (top hat rail) 35 mm

: Grey

: 5

: 55 mm

: 27.5 mm

: 500 V

: 105-105 °C

: V0

: TRUE

: Spring clamp connection

: Spring clamp connection

: 1

: 4

: FALSE

: 0.08-2.5 mm²

: 0.25-2.5 mm²

: 0.08-4 mm²

: 0.08-2.5 mm²

: Thermoplastic

: 24 A

: FALSE

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Nominal current - rounded value

Product type

WAGO 870-826 Continuity 5 mm Pull spring Configuration: L Grey 100 pc(s) Package

Item no:655750

Unavailable

Conrad Electronic

This article

100 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

24 A

Continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 870-540/281-410 Dual port diode terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Item no:655652

Dispatches on Wed 18 Nov

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

500 mA

Dual port diode terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 389.00^*

WAGO 2000-2141 Continuity 3.50 mm Pull spring Configuration: L Grey 50 pc(s) Bulk

Item no:654261

Unavailable

Conrad Electronic

50 pc(s)

1.50 mm²

0.14 mm²

1 mm²

0.14 mm²

13.5 A

Continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

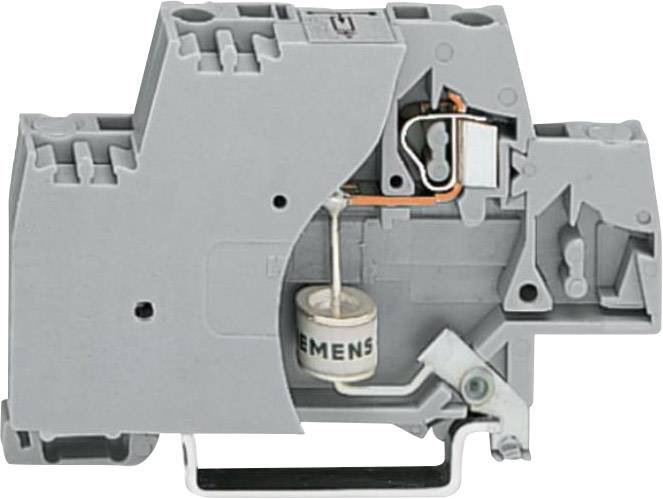

WAGO 280-504/281-617 Terminal 10 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Item no:656094

Unavailable

Conrad Electronic

50 pc(s)

20 A

Terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 870-540/281-411 Dual port diode terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Item no:655653

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

500 mA

Dual port diode terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 870-542/281-487 Dual port diode terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Item no:655654

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

500 mA

Dual port diode terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

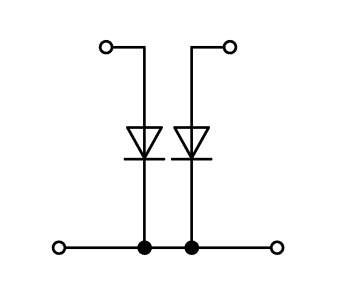

WAGO 870-542/281-488 Dual port diode terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Package

Item no:655655

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

500 mA

Dual port diode terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

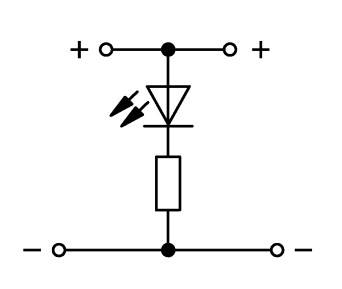

WAGO 870-543/281-413 Dual port LED terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Item no:655656

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.08 mm²

2.50 mm²

0.08 mm²

25 mA

Dual port LED terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

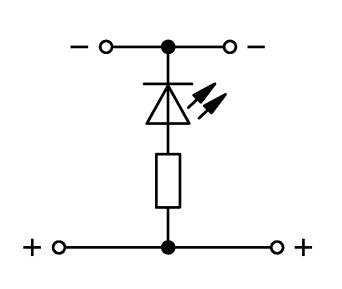

WAGO 870-543/281-434 Dual port LED terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece
