Name: WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)
Brand: WAGO
SKU: 544045
Availability: BackOrder

Two grey connectors with four pins each in a square configuration. One is visible from the side, the other from the front.

'Figure of an electrical circuit diagram with dimensions: Height 4.35, Width 24, Depth 3.5. Includes two views with connection details.'

1/2

Product type

Pin and socket combo

No. of rows

Series

2140

3.50 mm

Total number of pins

Datasheet (PDF)

Dispatches on Tue 17 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 21.16 / piece)

€ 529.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Combi strip

Content: 25 pc(s)
No. of rows: 1
Total number of pins: 9

Technical specifications

2L-KOMBILEISTE 9-POL.CC 3,5MM L-GRAU

Product type: Pin and socket combo

No. of rows: 1

Connector system: wire-to-board

Series: 2140

CS: 3.50 mm

Pins per row: 9

Total number of pins: 9

Width: 34.35 mm

Pin shape: Square

Nominal current: 10 A

Nominal current - rounded value: 10 A

Content: 25 pc(s)

AWG max.: 14

AWG (min.): 28

Dim: (L x W x H) 40.9 x 34.35 x 18.5 mm

Connection: Spring-loaded terminal

Case material: Polyamide

Manufacturer part #: 734-369

Factory colour: Light grey

Industrial packaging: Yes

Insulation material: Polyamide

Contact material: Copper alloy

Connector contact surface: Tin plated

Nominal voltage: 160 V

Height: 18.5 mm

Length: 40.9 mm

max. cross section: 1.50 mm²

Min. cross section: 0.08 mm²

Max. temperature: +100 °C

Min. temperature: -60 °C

Type: 734-369

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Width

Total number of pins

WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)

Item no:544045

Dispatches on Tue 17 Nov

Conrad Electronic

This article

34.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 529.00^*

WAGO Pin and socket combo 2140 Total number of pins 10 Contact spacing: 3.50 mm 734-370 25 pc(s)

Item no:544047

Dispatches on Tue 17 Nov

Conrad Electronic

37.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

WAGO Pin and socket combo 2140 Total number of pins 10 Contact spacing: 3.50 mm 734-370/008-000 25 pc(s)

Item no:544048

Dispatches on Tue 17 Nov

Conrad Electronic

37.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

WAGO Pin and socket combo 2140 Total number of pins 12 Contact spacing: 3.50 mm 734-372 25 pc(s)

Item no:544049

Dispatches on Tue 17 Nov

Conrad Electronic

44.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

WAGO Pin and socket combo 2140 Total number of pins 12 Contact spacing: 3.50 mm 734-372/008-000 25 pc(s)

Item no:544050

Dispatches on Tue 17 Nov

Conrad Electronic

44.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

WAGO Pin and socket combo 2140 Total number of pins 2 Contact spacing: 3.50 mm 734-362 100 pc(s)

Item no:544026

Dispatches on Tue 17 Nov

Conrad Electronic

9.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 645.00^*

WAGO Pin and socket combo 2140 Total number of pins 2 Contact spacing: 3.50 mm 734-362/008-000 100 pc(s)

Item no:544028

Dispatches on Tue 17 Nov

Conrad Electronic

9.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 645.00^*

WAGO Pin and socket combo 2140 Total number of pins 3 Contact spacing: 3.50 mm 734-363 50 pc(s)

Item no:544029

Dispatches on Tue 17 Nov

Conrad Electronic

13.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 429.00^*

WAGO Pin and socket combo 2140 Total number of pins 3 Contact spacing: 3.50 mm 734-363/008-000 50 pc(s)

Item no:544032

Dispatches on Tue 17 Nov

Conrad Electronic

13.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 429.00^*

WAGO Pin and socket combo 2140 Total number of pins 4 Contact spacing: 3.50 mm 734-364 50 pc(s)

Item no:544033

Dispatches on Tue 17 Nov

Conrad Electronic

16.85 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Documents & Downloads

Datasheet

Datasheet 544045 WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)

User & Safety Instructions

User & Safety Instructions 544045 WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)

Description

Pin and socket output, 9-pin pitch 3.5 mm/0.138 in, 100% proof, coding, light gray.

This text is machine translated.

Description

Pin and socket output, 9-pin pitch 3.5 mm/0.138 in, 100% proof, coding, light gray.

This text is machine translated.

Frequently Bought Together

(^*All information is plus legal VAT)

This article

WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)

Conrad Electronic

€ 529.00^*

WAGO 216-124 Ferrule 1.5 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 12.99^*

Total price:

€ 541.99^*

Frequently Bought Together

(^*All information is plus legal VAT)

This article

WAGO Pin and socket combo 2140 Total number of pins 9 Contact spacing: 3.50 mm 734-369 25 pc(s)

Conrad Electronic

€ 529.00^*

WAGO 216-124 Ferrule 1.5 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 12.99^*

Total price:

€ 541.99^*

What kind of Pin Headers, Receptacles systems are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

WAGO 216-131 Ferrule 0.25 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 13.99^*

WAGO 216-122 Ferrule 0.75 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 12.99^*

WAGO 216-124 Ferrule 1.5 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 12.99^*

-19%

WAGO 216-121 Ferrule 0.5 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 15.99

€ 12.99^*

WAGO 216-132 Ferrule 0.34 mm² Not insulated Metal 1000 pc(s)

Conrad Electronic

€ 12.99^*

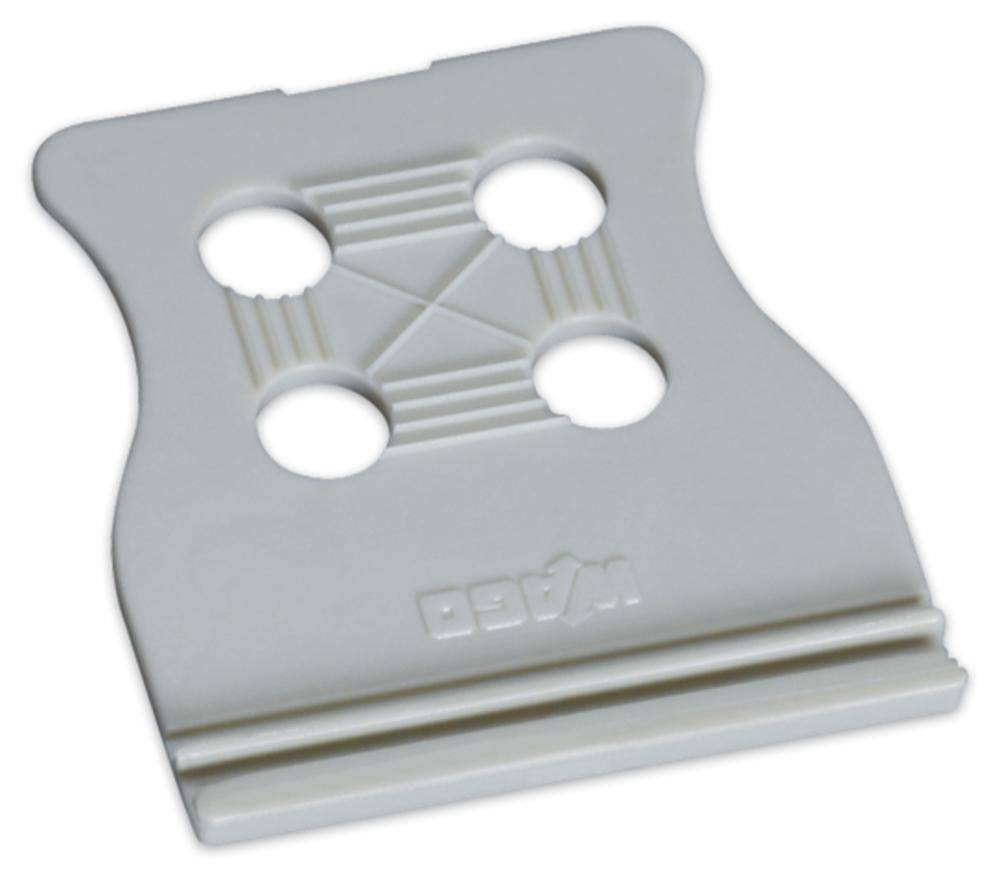

Strain relief plate 734-129 WAGO Content: 100 pc(s)
