WAGO Pin strip (standard) 300 Total number of pins 12 Contact spacing: 5 mm 231-171/001-000/105-604 100 pc(s)

'Electrical plug connector in black colour with multiple metal pins, for connecting cables or electronic devices.'
The rating curve for the feather strip shows the current in amperes against the ambient temperature in degrees Celsius. Multiple curves for different pole numbers.

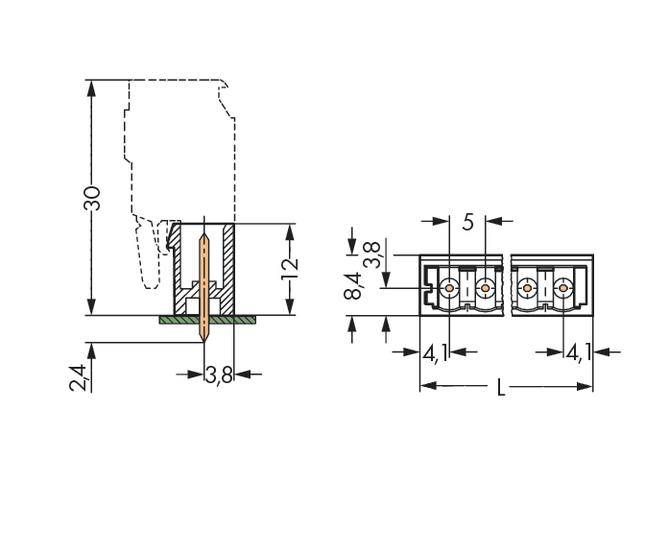

Technical drawing of a connector with dimensions: height 30 mm, width 3.8 mm, depth 24 mm. Shows positions of screw holes.
1/3
Product type
Pin strip (standard)
Connector type
Plug, straight
No. of rows
1
Series
300
CS
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 100 pc(s))
Total (€ 3.79 / piece)
€ 379.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Male header (for PCBs)

  • Content: 100 pc(s)
  • No. of rows: 1
  • Total number of pins: 12

Technical specifications

  • STIFTL.GESCHL.1,2X1,2GER.5MM 11P.REF
Product type

Pin strip (standard)

Connector type

Plug, straight

No. of rows

1

Connector system

wire-to-board

Series

300

CS

5 mm

Pins per row

12

Total number of pins

12

Width

58.2 mm

Pin shape

Square

Nominal current

16 A

Nominal current - rounded value

16 A

Content

100 pc(s)

Dim

(L x W x H) 8.4 x 58.2 x 14.4 mm

Connection

Print

Case material

Polyphthalamide (PPA GF)

Manufacturer part #

231-171/001-000/105-604

Factory colour

Black

Industrial packaging

Yes

Insulation material

Polyphthalamide (PPA GF)

Contact material

Cathode copper

Board contact surface

Tin plated

Connector contact surface

Tin plated

Nominal voltage

320 V

Height

14.4 mm

Length

8.4 mm

Connector orientation

Perpendicular (to the PCB)

Max. temperature

+100 °C

Min. temperature

-60 °C

Type

231-17#4050821003946

UKCA

not relevant
