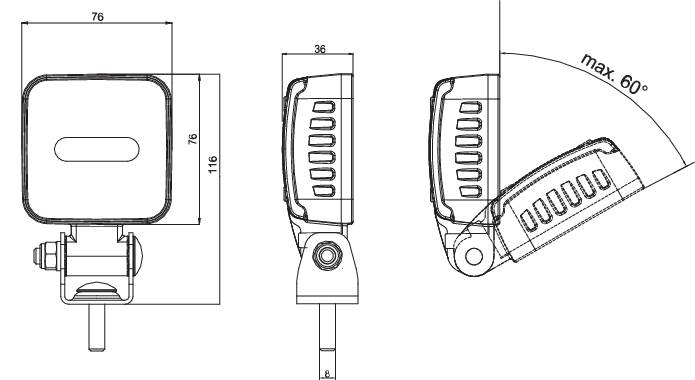

Stroke drawing/circuit diagram
1/4
Stroke drawing/circuit diagram
WAS Reversing lamps 12 V DC, 24 V DC, 36 V DC, 48 V DC, 70 V DC W263 2172 W263 Wide angle close range illumination (W x
EAN:
Part number:
Item no:
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 7 Piece(s) available
Highlights & Details
WAS Reversing lamps 12 V DC, 24 V DC, 36 V DC, 48 V DC, 70 V DC W263 2172 W263 Wide angle close range illumination (W x H x D) 76 x 116 x 36 mm 805 lm
- 12-70 volt
- Small design approx. 76x76 mm
- ECE approved
Technical specifications
- Dim
(W x H x D) 76 x 116 x 36 mm
- Product type
Reversing lamps
- LEDs
16
- Design type
Structure with movable holder
- Fastening method
Screw mount
- Bulb type
LED (monochrome)
- Operating voltage
12 V DC
24 V DC
36 V DC
48 V DC
70 V DC
- Weight
492 g
11 W
- Total luminous flux
805 lm
- Width
76 mm
- Height
116 mm
- Depth
36 mm
- Lenses for
Wide angle close range illumination
- ECE type approval labels
E20*148/R01/00
- Mounting site
rear
- Features
Cable (2.5 m)
Suitable as reversing light
Open end cables
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339700 WAS Reversing lamps 12 V DC, 24 V DC, 36 V DC, 48 V DC, 70 V DC W263 2172 W263 Wide angle close range illumination (W x
Warranty Terms
Warranty Terms 3339700 WAS Reversing lamps 12 V DC, 24 V DC, 36 V DC, 48 V DC, 70 V DC W263 2172 W263 Wide angle close range illumination (W x
Description
The LED reversing light is the ideal solution for all who want to make their vehicles safer and more efficient. No matter whether for car trailers, trucks, construction machines or fork-lift trucks - this high-quality rear-view headlights is perfectly suitable for retrofitting and provides an optimum view with every reverse drive. Thanks to the broad voltage range from 12 to 70 volts, it is versatile and fits most of the vehicles.
The compact design enables easy integration even in limited space, while the long-life LED technology provides bright, reliable and low-maintenance lighting. With the existing approval the headlight fulfills all the legal requirements so that you can use it without any hesitation in the traffic The integrated cable makes the installation easy and makes the retrofitting fast and easy.
You can rely on quality and safety – with the LED reversing light in a compact design that impresses even in demanding applications.
This text is machine translated.
The compact design enables easy integration even in limited space, while the long-life LED technology provides bright, reliable and low-maintenance lighting. With the existing approval the headlight fulfills all the legal requirements so that you can use it without any hesitation in the traffic The integrated cable makes the installation easy and makes the retrofitting fast and easy.
You can rely on quality and safety – with the LED reversing light in a compact design that impresses even in demanding applications.
This text is machine translated.
Features
- 2.5 meter cable
- Stainless steel holder
