Buy WeEn Semiconductors BT152-800R,127 Thyristor (SCR) TO 220AB 800 V 13 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Two black, rectangular electronic components with three connection pins each, lying side by side, most likely transistors.

Two black, rectangular electronic components with three connection pins each, lying side by side, most likely transistors.

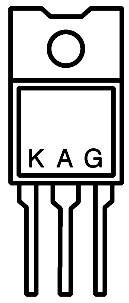

A circuit diagram shows an electronic transistor with three terminals, labelled 'K', 'A', and 'G'; it illustrates the pin configuration.

1/2

Image similar

WeEn Semiconductors

Product type

Thyristor (SCR)

Enclosure

TO 220AB

U(DRM)

800 V

I(T)(RMS)

20 A

Forward voltage U(F)

1.75 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2492 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: BT152-800R,127

Product type: Thyristor (SCR)

Enclosure: TO 220AB

Manufacturer: WeEn Semiconductors

Manuf. code: NXP

U(DRM): 800 V

Gate trigger voltage U(GT): 1.5 V

Gate trigger current I(GT): 32 mA

Average forward current I(T)(AV): 13 A

I(T)(RMS): 20 A

Forward voltage U(F): 1.75 V

I(d): 1 mA

I(H): 60 mA

I(TSM 50 Hz): 200 A

I(TSM 60 Hz): 220 A

Mounting type: Through-hole

Operating temperature (min.): -40 °C

Operating temperature (max.): +125 °C

Casing: TO 220

Documents & Downloads

Datasheet

Datasheet 151421 WeEn Semiconductors BT152-800R,127 Thyristor (SCR) TO 220AB 800 V 13 A

User & Safety Instructions

User & Safety Instructions 151421 WeEn Semiconductors BT152-800R,127 Thyristor (SCR) TO 220AB 800 V 13 A
