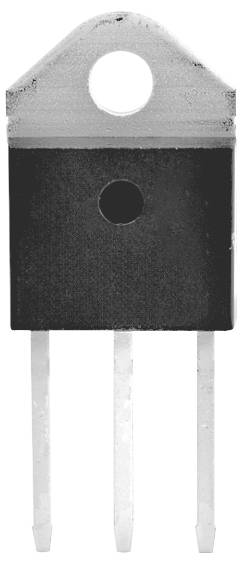

Image similar
Image similar
WeEn Semiconductors BT151-800R,127 Thyristor (SCR) TO 220AB 800 V 7.5 A
EAN:
Part number:
Item no:
Enclosure
TO 220AB
U(DRM)
800 V
I(T)(RMS)
12 A
Forward voltage U(F)
1.75 V
I(H)
20 mA
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.77
9
8% = € 0.06
€ 0.71
15
10% = € 0.08
€ 0.69
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.77 / piece)
€ 2.31
plus VAT.
Technical specifications
- Type
BT151-800R,127
- Enclosure
TO 220AB
- Manufacturer
WeEn Semiconductors
- Manuf. code
WeEn
- U(DRM)
800 V
- Gate trigger voltage U(GT)
1.5 V
- Gate trigger current I(GT)
15 mA
- Average forward current I(T)(AV)
7.5 A
- I(T)(RMS)
12 A
- Forward voltage U(F)
1.75 V
- I(H)
20 mA
- I(TSM 50 Hz)
120 A
- I(TSM 60 Hz)
132 A
- Mounting type
Through-hole
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- I(d)
500 µA
- Product type
Thyristor (SCR)
