Name: WEG CWC07-01-30D24S Contactor 3 makers 3 kW 230 V AC 7 A + auxiliary contact Compatible with (relay brand): Weg Single 1
Brand: WEG
SKU: 1398468
Availability: InStock

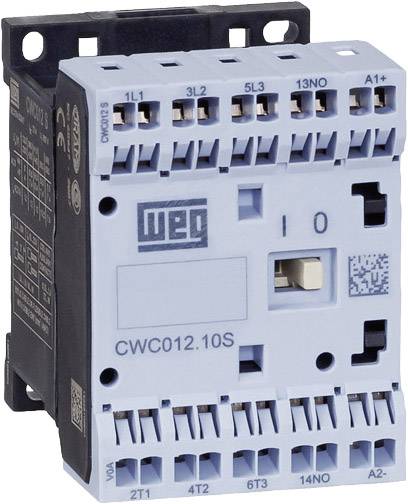

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

230 V AC

Current load

7 A

Power

3 kW

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Compact contractor CWC 07, screwless clamp system,

Power 3 kW

Technical specifications

Packaging type: Single

Product type: Contactor

Type: CWC07-01-30D24S

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 breaker

Nominal voltage: 230 V AC

Control voltage (max.): 230 V AC

Control voltage range: 230 V AC (max)

Switching voltage (max.): 400 V AC

Permanent current (max.): 18 A

Current load: 7 A

: 3 kW

Compatible with: Weg

Compatible with series: Weg CWC07 series

Features: + auxiliary contact

Mounting type: DIN rail

Connection: Spring-loaded terminal

Durability: 10 x 10⁶ switching cycles

: IP20

Min. temperature: -25 °C

Max. temperature: +55 °C

Width: 45 mm

Height: 60 mm

Depth: 54.4 mm

Dim: (W x H x D) 45 x 60 x 54.4 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1398468 WEG CWC07-01-30D24S Contactor 3 makers 3 kW 230 V AC 7 A + auxiliary contact Compatible with (relay brand): Weg Single 1

User & Safety Instructions

User & Safety Instructions 1398468 WEG CWC07-01-30D24S Contactor 3 makers 3 kW 230 V AC 7 A + auxiliary contact Compatible with (relay brand): Weg Single 1

Description

Protection with screwless clamping technology for switching electric motors. With technical and mechanically co-ordinated motor protective-power switches MPW and motor protective relay RW built a fast compact motor starter Built and tested according to IEC/EN 60947 or DIN VDE 0660, fulfills the approvals and certifications according to UL/CSA, GOST. Auxiliary switch blocks and quenching circuits can be plugged into the front.

This text is machine translated.
