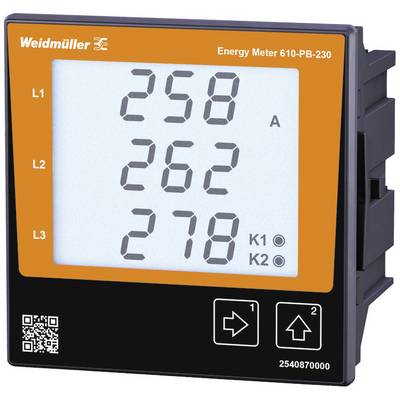

Weidmüller ENERGY METER 610-PB-230 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 570.59 / piece)
€ 570.59
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Operating temperature: -10 °C - +55 °C
- Storage temperature: -25 °C - +70 °C
- Number of digital inputs: 4
- Number of digital outputs: 6
- Number of pulse outputs: 6
- Protocol: Modbus RTU, Profibus DP V0
- Memory size: 256 MB
- Measurement accuracy at voltage: 0.2 %
- Measurement accuracy at current: 0.2 %
- Product type
Digital rack-mount meter
- Reading type
AC voltage
Amperage
- Type
ENERGY METER 610-PB-230
- Reading range (max.)
480 V
- Operating voltage
480 V
- Dim
(L x W x H) 65 x 96 x 96 mm
- Weight
250 g
- Max. operating voltage
277 V AC
250 V DC
- Min. operating voltage
90 V DC/AC
- Reading category
CAT III 300 V
- Width
96 mm
- Height
96 mm
- Length
65 mm
- Interfaces
RS485
Profibus DP
USB
- Interfaces
RS485
Profibus DP
USB
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1914645 Weidmüller ENERGY METER 610-PB-230 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 1914645 Weidmüller ENERGY METER 610-PB-230 Digital rack-mount meter
