Name: Weidmüller SSR 8421380000 Switching voltage (max.): 48 V DC 10 pc(s)
Brand: Weidmüller
SKU: 391315
Availability: BackOrder

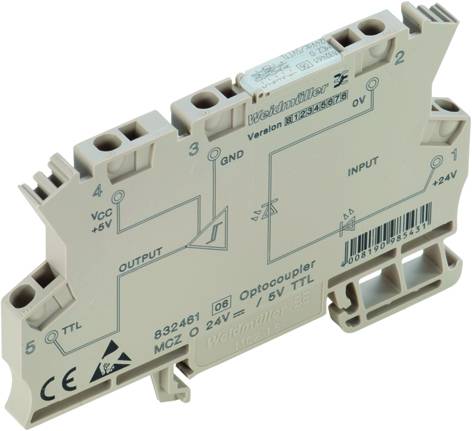

A grey Weidmüller module with descriptions for connections: VCC, QND, Output, Input and +24V. Model number 832461.<br><br>(Note: In British English, the translation remains essentially the same as the terminology is technical and international in nature.)

Packaging type

Package

Product type

SSR

Control voltage (min.)

230 V AC

Control voltage (max.)

230 V AC

Switching voltage (max.)

48 V DC

Datasheet (PDF)

Dispatches on Fri, 8 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 61.50 / piece)

€ 615.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Solid state relays

Industrial packaging, pack of 10

Technical specifications

Storage temperature, max. 60 °C.
Storage temperature, min.: -40 °C
Status indicator: Green LED
Switch-on delay: ≤ 30 ms
Switch-off delay: ≤ 40 ms
Voltage drop at max. load 1.6 V
Leakage current ≤ 1 mA
Short-circuit proof: No.
Color: beige
Rated voltage: 300 V
Over voltage category III
Creepage and air distance control side - load side: ≥ 5.5 mm
Surge voltage 6 kV (1.2/50 µs)
Humidity: 40 °C / 93 % rel. humidity, no condensation
MTTF: 2,135 Years
On/off voltage 175 V / 125 V AC
Protective circuit: Rectifier
Protective circuit on load side: Snubber diode
Max. Switching frequency (AC control voltage): 5 Hz
Mounting rail TS 35
Flammability class according to UL 94: V-0
Pollution level: 2
Electrical strength control side - load side: 1 kVeff / 1 s.
Wire stripping length rated connection: 8 mm
Clamping range, rated connection 1.5 mm²
Clamping range, min. 0.5 mm²
Clamping range, max. 1.5 mm²
Conductor cross-section AWG, min. AWG 26
Conductor cross-section AWG, max. AWG 16
Conductor cross-section, single-wire, min.: 0.5 mm²
Conductor cross-section, single-wire, max. 1.5 mm²
Conductor cross-section, fine strand, min. 0.5 mm²
Conductor cross-section, fine strand, max. 1.5 mm²
Conductor cross-section, fine strand, min. (AWG) AWG 26
Conductor cross-section, fine strand, max. (AWG): AWG 16
Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min.: 0.5 mm²
Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.5 mm²
Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
Blade size 0.6 x 3.5 mm

Packaging type: Package

Product type: SSR

Type: MCZ O 230VAC

Connection: Pull spring

Control voltage (min.): 230 V AC

Control voltage (max.): 230 V AC

Control voltage range: 230 - 230 V AC

Control current (max.): 10 mA

Switching voltage (min.): 5 V DC

Switching voltage (max.): 48 V DC

Max. switching capacity: 2.3 VA

Output voltage (min.): 5 V DC

Output voltage (max.): 48 V DC

Max. output current: 20 mA

Contact type: 1 maker

Min. temperature: -25 °C

Max. temperature: +40 °C

: IP20

Width: 6.1 mm

Height: 91 mm

Depth: 63.2 mm

Weight: 24 g

Industrial packaging: Yes

Permanent current (max.): 0.02 A

Content: 10 pc(s)

Nominal control voltage: 230 V AC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 391315 Weidmüller SSR 8421380000 Switching voltage (max.): 48 V DC 10 pc(s)

User & Safety Instructions

User & Safety Instructions 391315 Weidmüller SSR 8421380000 Switching voltage (max.): 48 V DC 10 pc(s)

Description

Solid state relays. MCZ-SERIES, nominal control voltage: 230V AC +5%/-15%, nominal switching voltage: 5...48 V DC, nominal switching current 20 mA, spring-cage connection. The that allows clamping conductor cross-section is 0.5 ... 1.5 mm².
