Name: Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)
Brand: Weipu
SKU: 736150
Availability: InStock

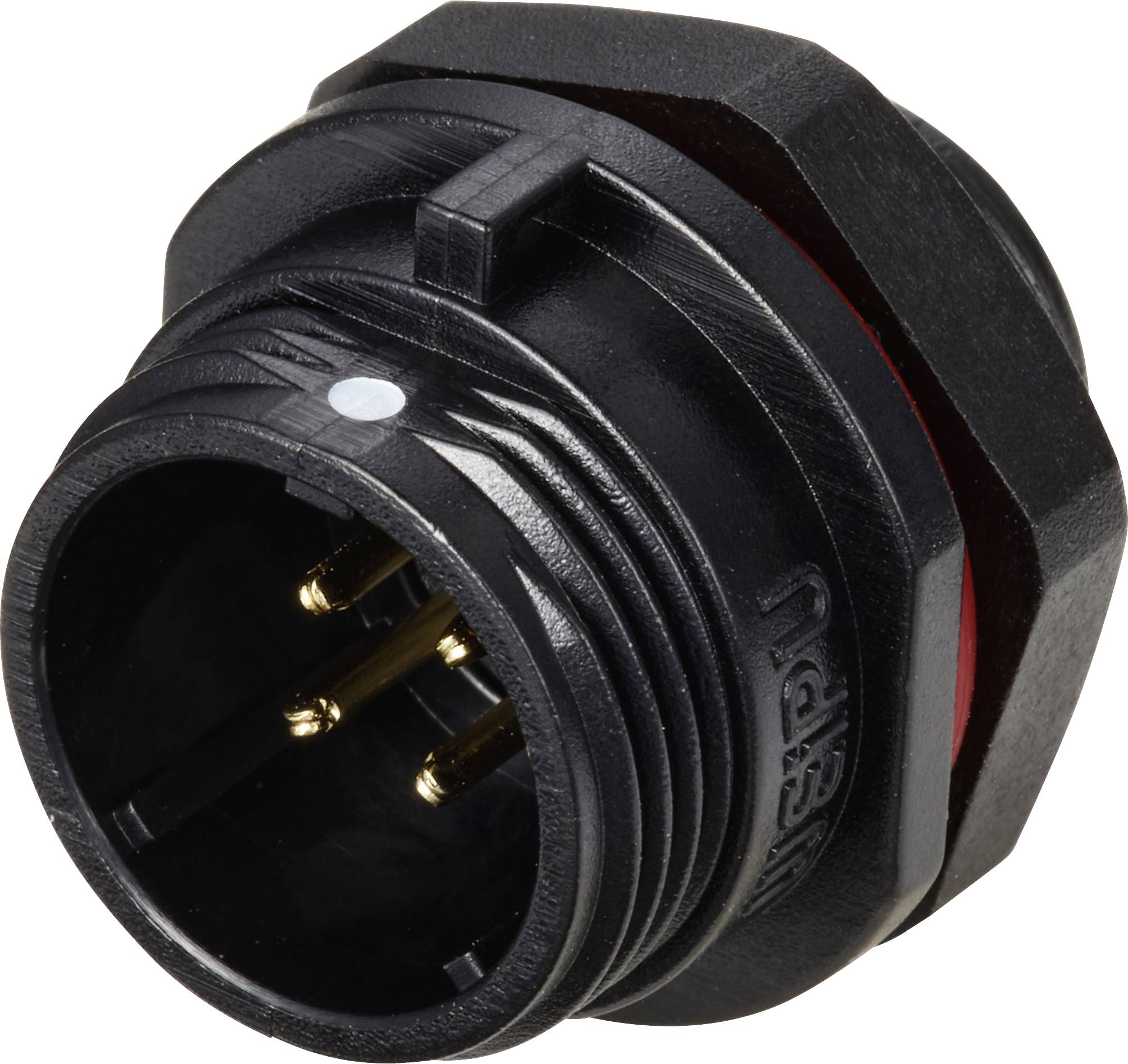

Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)-0

Black electrical circular connector with multiple gold-plated pins, viewed from the side. Suitable for industrial wiring.

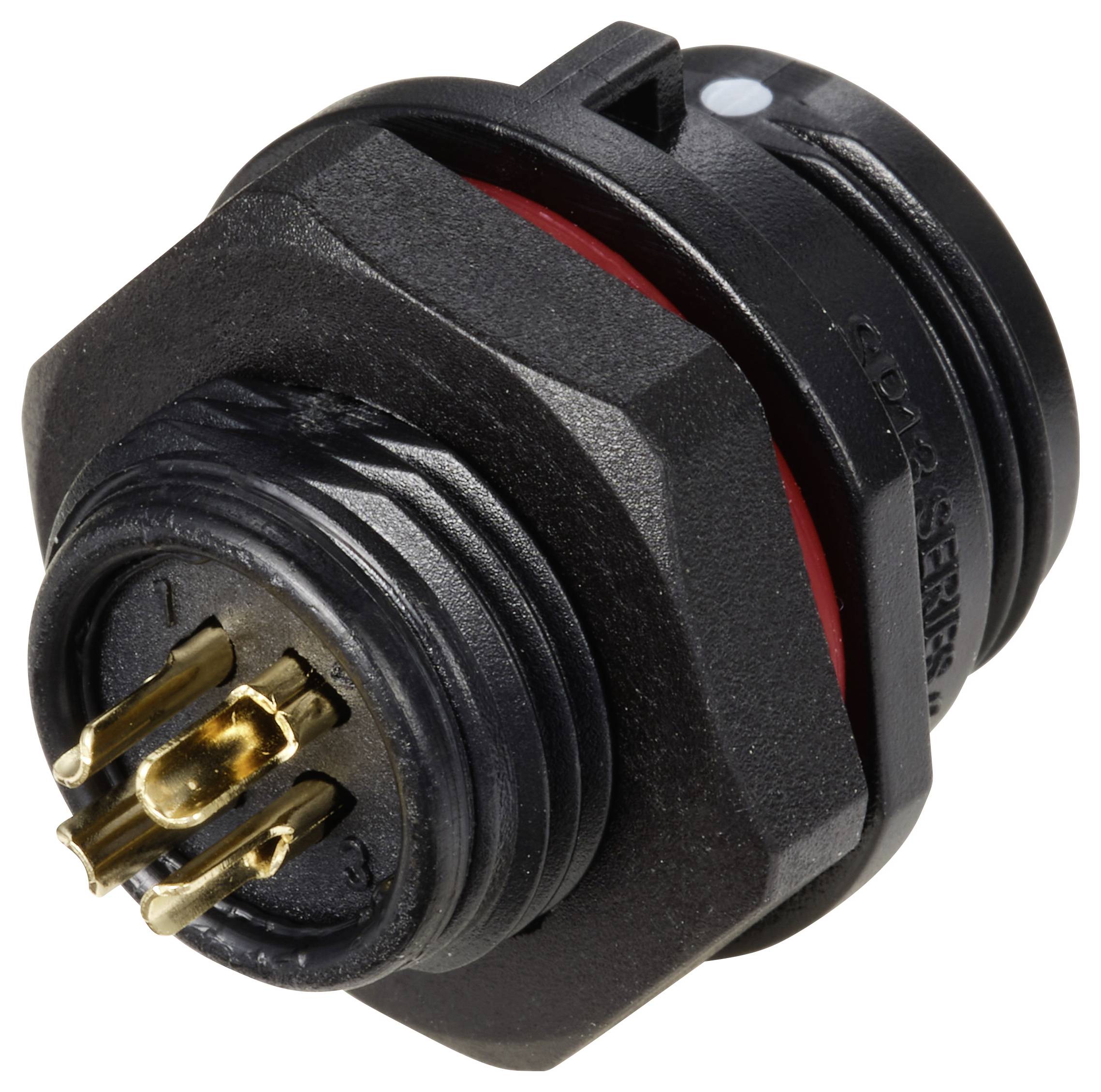

Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)-2

Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)-3

'PS/2 connection diagram with four numbered pins, numbering from 1 to 4 clockwise.'

1/5

Product type

Bullet connector

Connector type

Plug, mount

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

IP68 plug connector series SP13

Our service for you

Technical specifications

Type: SP1312 / P 4

Product type: Bullet connector

Connector type: Plug, mount

Total no. of pins: 4

Connection: Soldering

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +125 °C

Nominal current: 5 A

Min. temperature: -55 °C

Nominal current - rounded value: 5 A

Seal: Screw-type locking

Nominal voltage: 600 V

Contact material: Gold plated

Case material: PPS

: 18

Connection angle: 180°

Mounting hole diameter: 13 mm

Manufacturer part #: SP1312 / P 4

Number of pins: 4

max. cross section: 0.758 mm²

Cross-section range: 0.758 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SP13

Variants(All information include VAT, plus shipping costs)

Connector type

Factory colour

Nominal current - rounded value

Nominal voltage

Total no. of pins

Weipu SP1310 / P 2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SP13 1 pc(s)

Item no:734415

Fast track dispatch on Thu 29 Oct

1757 Piece(s)Conrad Electronic

Plug, straight

Black

10 A

277 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 3 I Bullet connector Plug, straight Total number of pins: 3 Series (round connectors): SP13 1 pc(s)

Item no:734468

Available soon

Conrad Electronic

Plug, straight

Black

13 A

250 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 4 I Bullet connector Plug, straight Total number of pins: 4 Series (round connectors): SP13 1 pc(s)

Item no:734518

Fast track dispatch on Thu 29 Oct

52 Piece(s)Conrad Electronic

Plug, straight

Black

32 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 5 I Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP13 1 pc(s)

Item no:734570

Fast track dispatch on Thu 29 Oct

516 Piece(s)Conrad Electronic

Plug, straight

Black

32 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 5 II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP13 1 pc(s)

Item no:734612

Fast track dispatch on Thu 29 Oct

504 Piece(s)Conrad Electronic

Plug, straight

Black

32 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 6 II Bullet connector Plug, straight Total number of pins: 6 Series (round connectors): SP13 1 pc(s)

Item no:734661

Fast track dispatch on Thu 29 Oct

485 Piece(s)Conrad Electronic

Plug, straight

Black

6 A

125 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 7 II Bullet connector Plug, straight Total number of pins: 7 Series (round connectors): SP13 1 pc(s)

Item no:734706

Fast track dispatch on Thu 29 Oct

85 Piece(s)Conrad Electronic

Plug, straight

Black

10 A

277 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / P 9 II Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SP13 1 pc(s)

Item no:734746

Available soon

Conrad Electronic

Plug, straight

Black

10 A

277 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP1310 / S 3 I Bullet connector Socket, straight Total number of pins: 3 Series (round connectors): SP13 1 pc(s)

Item no:734827

Fast track dispatch on Thu 29 Oct

221 Piece(s)Conrad Electronic

Socket, straight

Black

6 A

277 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Weipu SP1310 / S 4 I Bullet connector Socket, straight Total number of pins: 4 Series (round connectors): SP13 1 pc(s)

Item no:734868

Fast track dispatch on Thu 29 Oct

442 Piece(s)Conrad Electronic

Socket, straight

Black

32 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.29^*

Documents & Downloads

Datasheet

Datasheet 736150 Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)

User & Safety Instructions

User & Safety Instructions 736150 Weipu SP1312 / P 4 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): SP13 1 pc(s)

Description

The round plug-in connector series SP13 with screw locking provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.
