Weiss Elektrotechnik 85/423 PCB mount transformer 1 x 230 V 1 x 15 V AC 50 VA 3.34 A

Red transformer with white label; technical specifications: Primary 230 V, Secondary 15 V, 50 VA, 50-60 Hz, manufactured by Weiss GmbH.

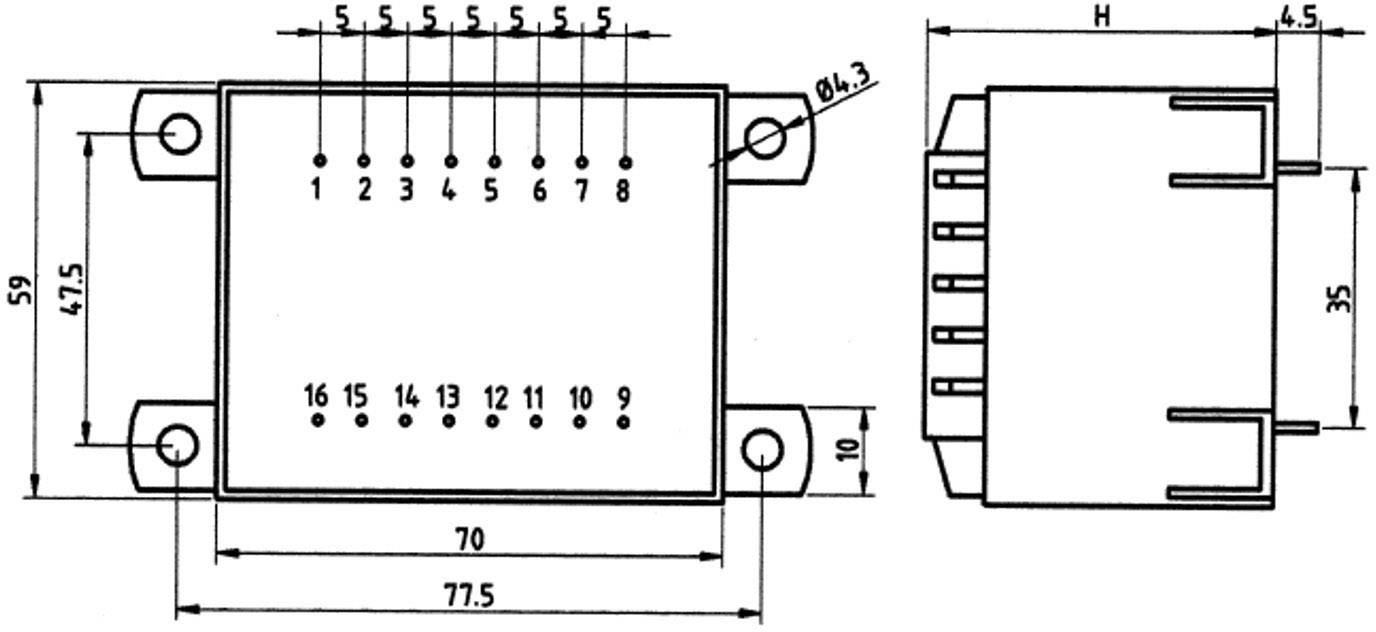

Technical drawing of a rectangular electronic component with dimensions. Shows pin connections and precise measurements.
1/2
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 29.99 / piece)
€ 29.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Weiss Elektrotechnik 85/423 PCB mount transformer 1 x 230 V 1 x 15 V AC 50 VA 3.34 A

  • 1 x 230 V
  • 1 x 15 V AC
  • 3.34 A
  • 50 VA
  • Symbol image for Weiss Elektrotechnik 85/423 PCB mount transformer 1 x 230 V 1 x 15 V AC 50 VA 3.34 A

Technical specifications

  • Pin assignment Main: PIN 1 - 8, Pin assignment Secondary 1: PIN 10 - 15
  • Design:ul 506
Product type

PCB mount transformer

Output voltage

15 V AC

Output voltage (number x voltage)

1 x 15 V AC

Output current

3.34 A

No. of inputs

1 x

No. of outputs

1 x

Input voltage

230 V

Input voltage (number x voltage)

1 x 230 V

50 VA

Width

59 mm

Height

62.5 mm

Length

70 mm

Type

85/423

Dim

(L x W x H) 70 x 59 x 62.5 mm

Connection

Soldering

Frequency

50 - 60 Hz

Weight

1080 g

Content

1 pc(s)

50 VA

Output voltage

15 V

Documents & Downloads

Datasheet

Datasheet 504533 Weiss Elektrotechnik 85/423 PCB mount transformer 1 x 230 V 1 x 15 V AC 50 VA 3.34 A

User & Safety Instructions

User & Safety Instructions 504533 Weiss Elektrotechnik 85/423 PCB mount transformer 1 x 230 V 1 x 15 V AC 50 VA 3.34 A
