Buy Wera Kraftform Kompakt VDE 62 i PH 0 x 157 mm TIE Electrician Frearson Interchangeable bit PH 0

A red screwdriver with 'Wiha TE-82I PH0' printed on the handle. Suitable for small cross-head screws.

An analogue voltmeter shows a reading just below 10 kV. It is mounted on a blue metal panel with two rotary knobs.

A set of interchangeable screwdrivers with various tips in different colours for different screw types.

Set of nine isolated screwdriver bits in various colours and sizes. Two red handles at the bottom.

Four different screwdriver bits are shown, each with a distinct shape and colour: Phillips (red tip/red block), Torx (black tip/black block), Hex socket (green tip/green block), Allen (yellow tip/yellow block).

Red plug with a white and red symbol next to it, indicating that it should not be connected or used.

White 3D hand holding a vertical red screw against a grey background.

White narrow rocket on a black background with the text: 'Take it easy Tool Finder'.

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

22 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€ 5.87

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Kraftform compact VDE 62 i Take it easy, PH 0 x 157 mm

VDE Reversing blade for Phillips screws PH 0x157

Technical specifications

Product type: Interchangeable bit

Range of use: Electrician

Downforce: Frearson

Size: PH 0

Length: 157 mm

Height: 7 mm

Width: 7 mm

Weight: 12 g

Dim: (L x W x H) 157 x 7 x 7 mm

Documents & Downloads

Datasheet

Datasheet 3165484 Wera Kraftform Kompakt VDE 62 i PH 0 x 157 mm TIE Electrician Frearson Interchangeable bit PH 0

User & Safety Instructions

User & Safety Instructions 3165484 Wera Kraftform Kompakt VDE 62 i PH 0 x 157 mm TIE Electrician Frearson Interchangeable bit PH 0

Description

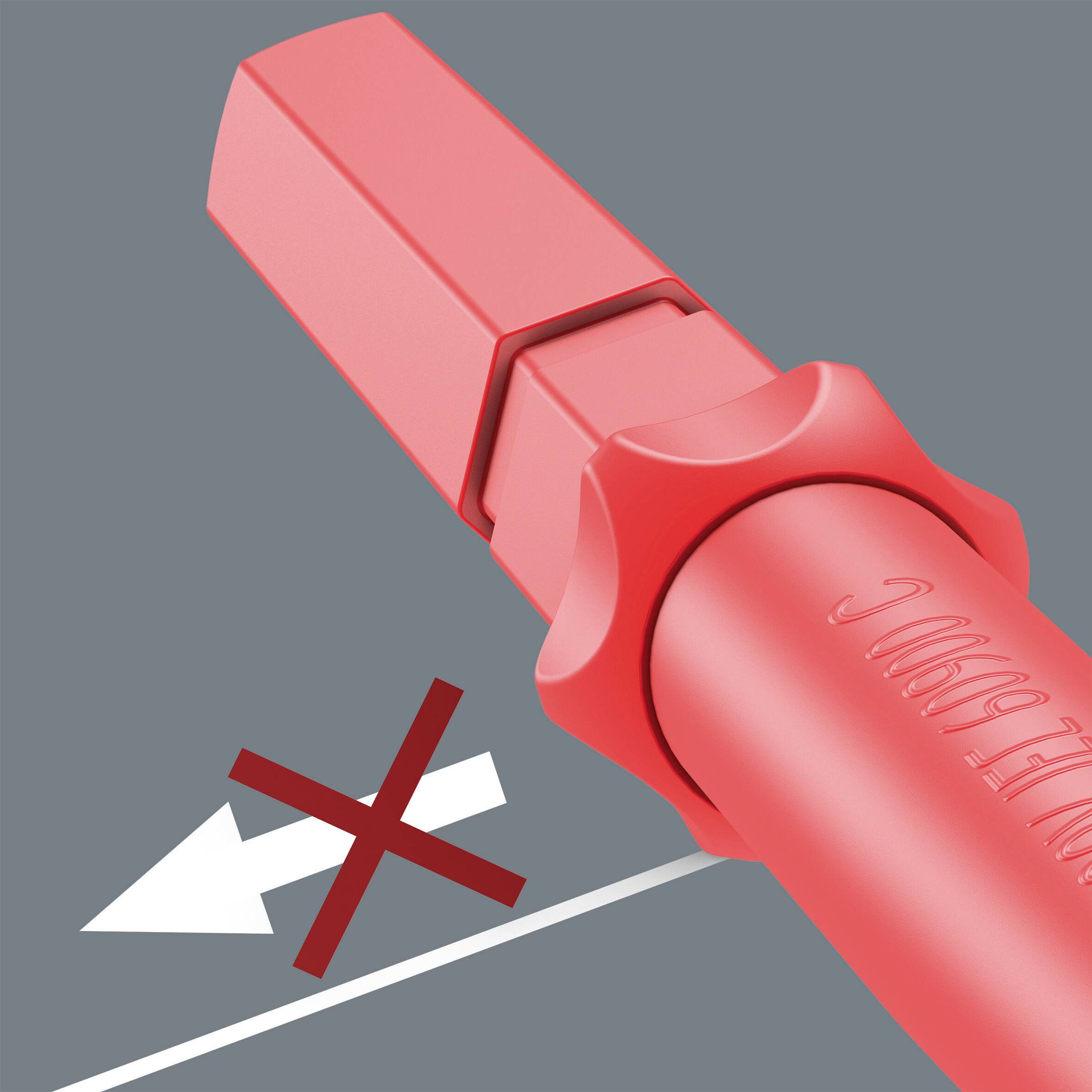

VDE blade for power form compact handle / replacement blade system. Lightning-fast replacement of the blade without special tools. Tested tools according to IEC 60900 Routine test at 10,000 V for safe working at the approved voltage of 1,000 V. The Wera black point tip offers fitting accuracy and optimized corrosion protection. With Tool Finder Take it easy: Colour marking according to profiles as well as lasered size specification. The hexagonal unroll protection prevents the blade from rolling away unintentionally.

This text is machine translated.

Features

Kraftform Compact VDE Interchangeable blade for Phillips screws
Insulated, piece-tested according to IEC 60900
9 mm hexagonal drive with guide edge
With Black Point tip for high corrosion protection and form-fitting
Take it easy tool finder: Colour codes by profile and lasered size specification

Scope of delivery

VDE Reversing blade for Phillips screws PH 0x157
