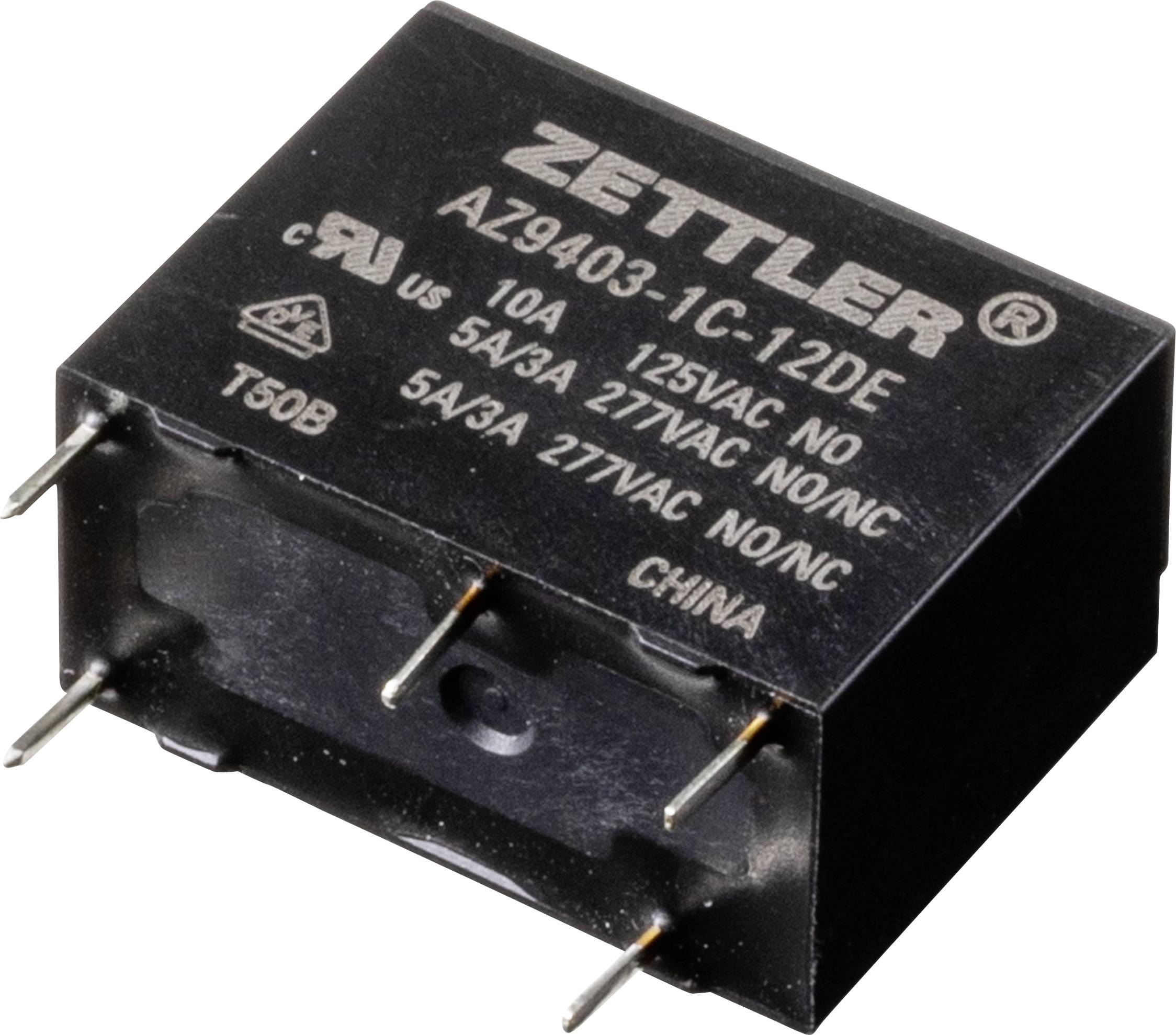

Zettler Electronics AZ9403-1C-12DE Power relay 12 V DC 5 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Switching voltage (max.)
277 V AC
Switching current (max.)
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Highlights & Details
Power relays
Our service for you
Technical specifications
- Product type
Power relay
- Type
AZ9403-1C-12DE
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
15.6 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
320 Ω
- Switching voltage (max.)
277 V AC
- Switching current (max.)
5 A
- Max. switching capacity
150 W
2770 VA
- Connection
Pins
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Length
20.5 mm
- Width
10.2 mm
- Height
15.3 mm
- Dim
(L x W x H) 20.5 x 10.2 x 15.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2349917 Zettler Electronics AZ9403-1C-12DE Power relay 12 V DC 5 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2349917 Zettler Electronics AZ9403-1C-12DE Power relay 12 V DC 5 A 1 pc(s)
