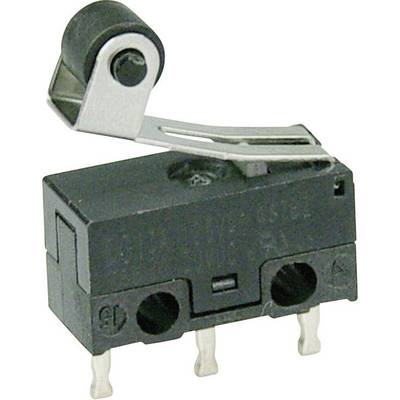

A microswitch with a lever and three connection pins. The lever is attached to the upper part of the switch and is used for activation.

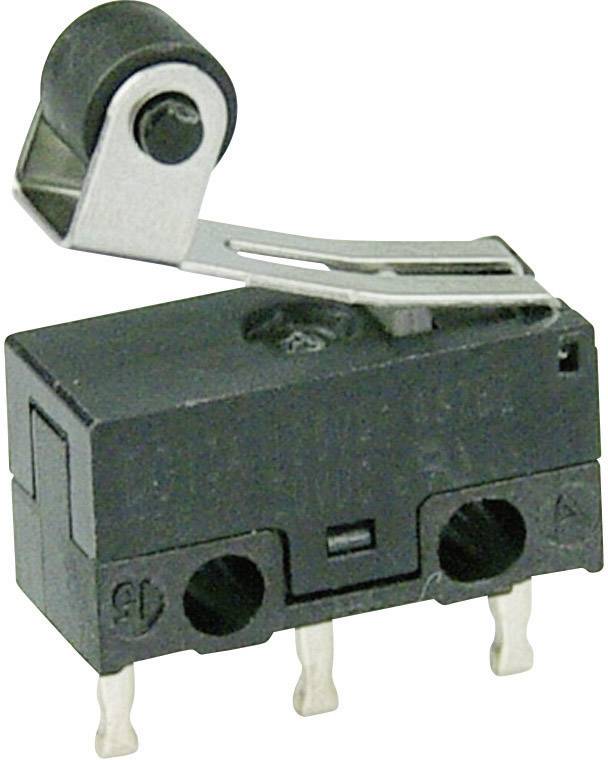

A microswitch with a lever and three connection pins. The lever is attached to the upper part of the switch and is used for activation.

Datasheet (PDF)

English

133 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.08 / piece)

€

Report legal concerns

Technical specifications

Functions: momentary

Connection: Print

Operation type: Lever

Contact type: 1 change-over

Switch position: 1 x On/(On)

Switching voltage: 125 V AC

Switching current (max.): 3 A

Min. temperature: -40 °C

Max. temperature: +85 °C

Content: 1 pc(s)

Dim

RoHS-compliant: Yes

Type: DG13-B1RA

Type: 1 changeover

Switching voltage: 125 V AC

Switching current: 3 A

Type: DG13-B1RA

Connection: PCB terminal 0.9 x 0.6 mm straight

Temperature range: -40 - +85 °C

Product type: Microswitch

Documents & Downloads

Datasheet

English

Datasheet 705406 ZF DG13-B1RA Microswitch DG13-B1RA 125 V AC 3 A 1 x On/(On) momentary 1 pc(s)
