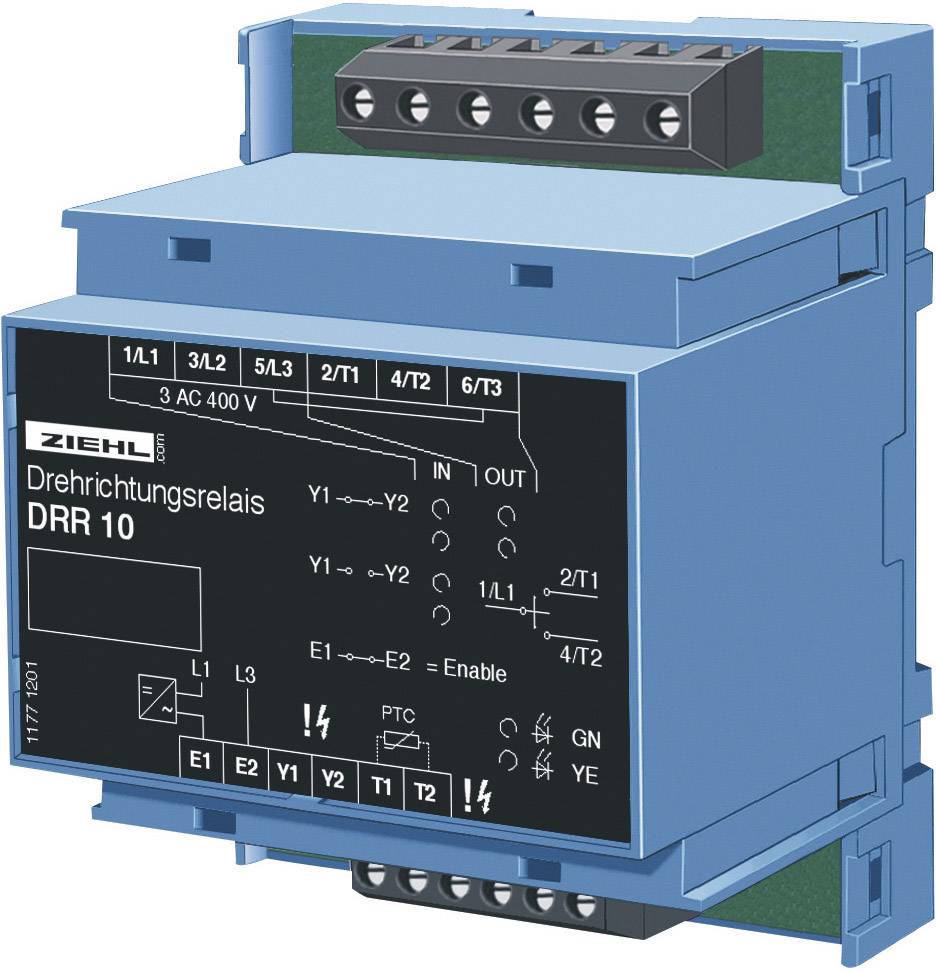

Ziehl DRR10 P 222546 Phase monitoring relay No. of relay outputs: 3
EAN:
Part number:
Item no:
Product type
Phase monitoring relay
No. of relay outputs
3
Operating voltage
400 V AC
Type
DRR10
Probe inputs
3 AC 400 V
Number
Total (€ 96.63 / piece)
€ 130.25
-26 %
€ 96.63
plus VAT.
Only 5 Piece(s) available
Highlights & Details
ROTARY ENCODER RELAY DRR 10
- Automatic correction of phase sequence in three-phase systems
Technical specifications
- Type
DRR10
- Product type
Phase monitoring relay
- No. of relay outputs
3
- Probe inputs
3 AC 400 V
- Outputs
3 AC 400 V switching current 3 x 12 A, with an inrush current of 30 A (for 3 s) and 60 A (for 1 s)
- Operating voltage
400 V AC
- Dim
(W x H) 70 mm x 90 mm
- Width
70 mm
- Height
90 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 198920 Ziehl DRR10 P 222546 Phase monitoring relay No. of relay outputs: 3
Description
With the rotation relay DRR10 there is always correct the phase sequence, ie the motors always run in the correct direction, even if the network or connection errors are connected. Use primarily in mobile equipment (pumps, mixers, compressors) that are operated at different networks. With PTC overtemperature protection At higher flow duration than 3 x 12 A, 2 protections can ( please order separately) be interposed
