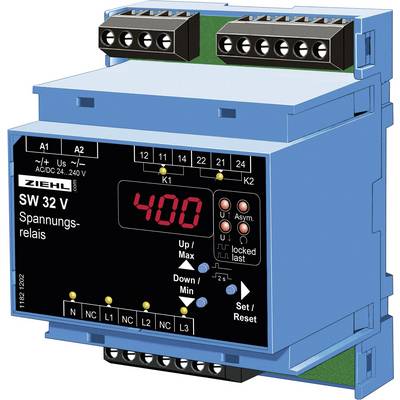

Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
2
Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
Type
SW32V
Outputs
2 Relays (UM) 5 A/250 V/AC
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 277.31
-32 %
€ 189.07
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
- Effective value measurement
- Monitoring of phase sequence and asymmetry can be activated
Technical specifications
- Continuous range of monitoring: 0 - 830 V
- Type
SW32V
- Product type
Voltage monitoring relay
- No. of relay outputs
2
- Outputs
2 Relays (UM) 5 A/250 V/AC
- Operating voltage
24 V DC
48 V DC
110 V AC
230 V AC
- Dim
(W x H) 70 mm x 90 mm
- Width
70 mm
- Height
90 mm
Documents & Downloads
Datasheet
Datasheet 198932 Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 198932 Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions 198932 Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
Information
Information 198932 Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
Conformity certificate
Conformity certificate 198932 Ziehl SW32V S222279 Voltage monitoring relay No. of relay outputs: 2
Description
For over and/or under-voltage monitoring in AC and three-phase current supply with or without zero-conductors
Features
- Digital display for voltage and settings
- Adjustment of the 2 limit values in Volt
- Short reaction time from 100 ms
- Hysteresis and response mode are individually programmable.
